1995 Kawasaki Police 1000 Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 1995 Kawasaki Police 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

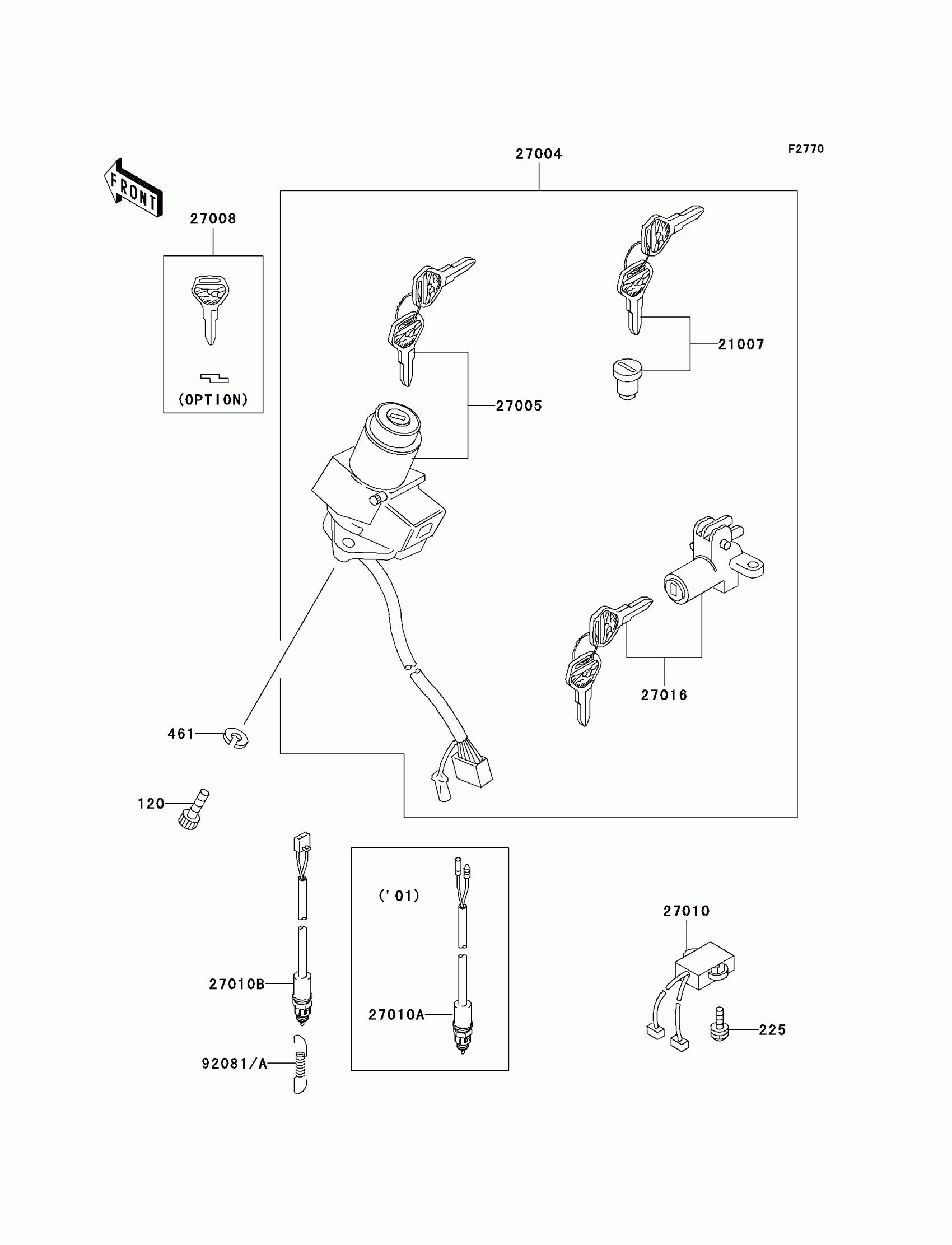

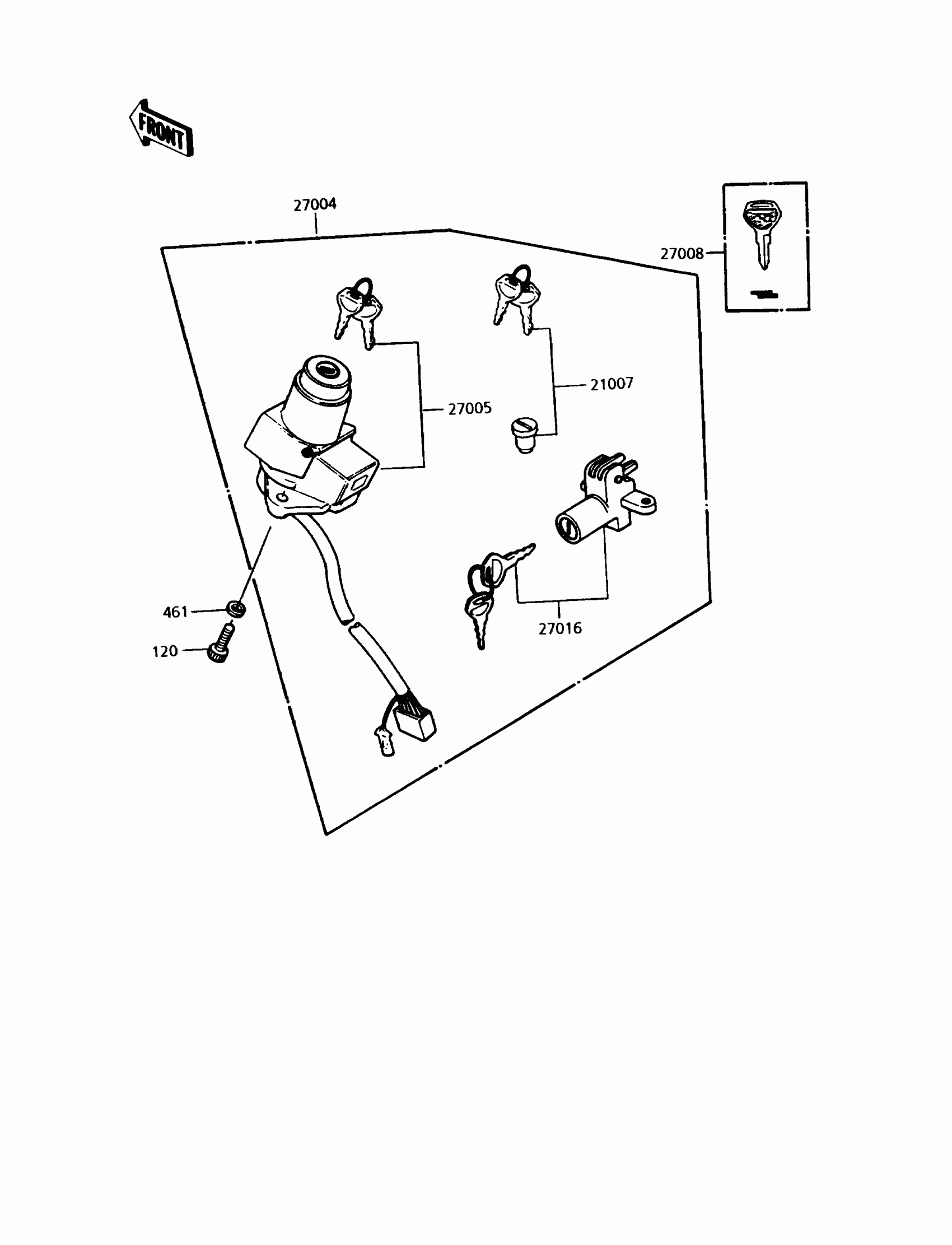

1995 Kawasaki Police 1000 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21007

ROTOR,LOCK,TANK CAP

21007-5005

1

$101.48

In stock

27004

SWITCH-ASSY

27004-5409

1

$349.55

In stock

27005

1

$196.81

In stock

27008

KEY-LOCK,BLANK

27008-1103

1

$18.83

In stock

27016

LOCK-ASSY,SEAT

27016-5072

1

$111.76

In stock

120

BOLT-SOCKET,6X16

120T0616

1
Out of stock

461

WASHER-SPRING

461L0600

1

$0.68

In stock
