1995 Kawasaki Police 1000 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1995 Kawasaki Police 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

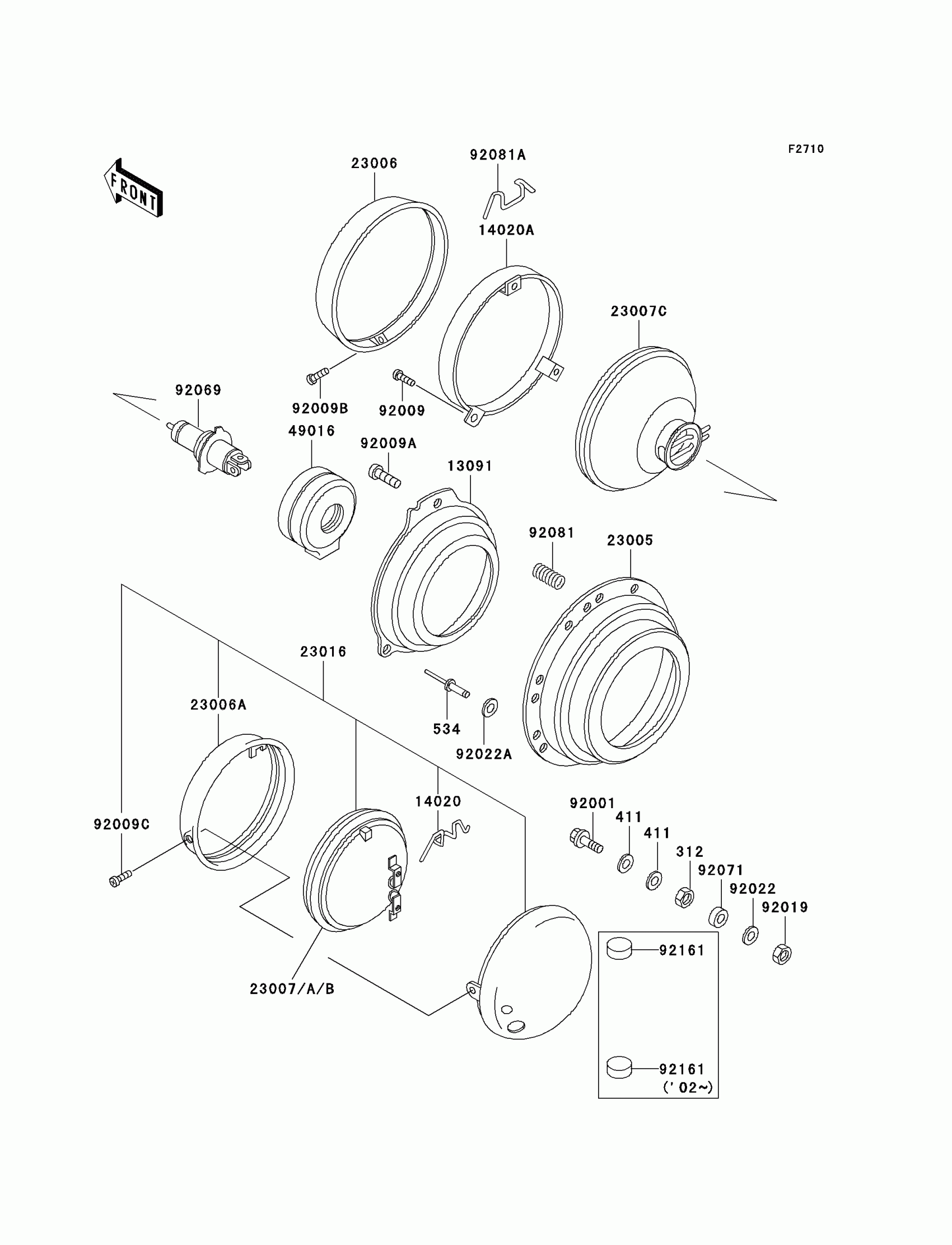

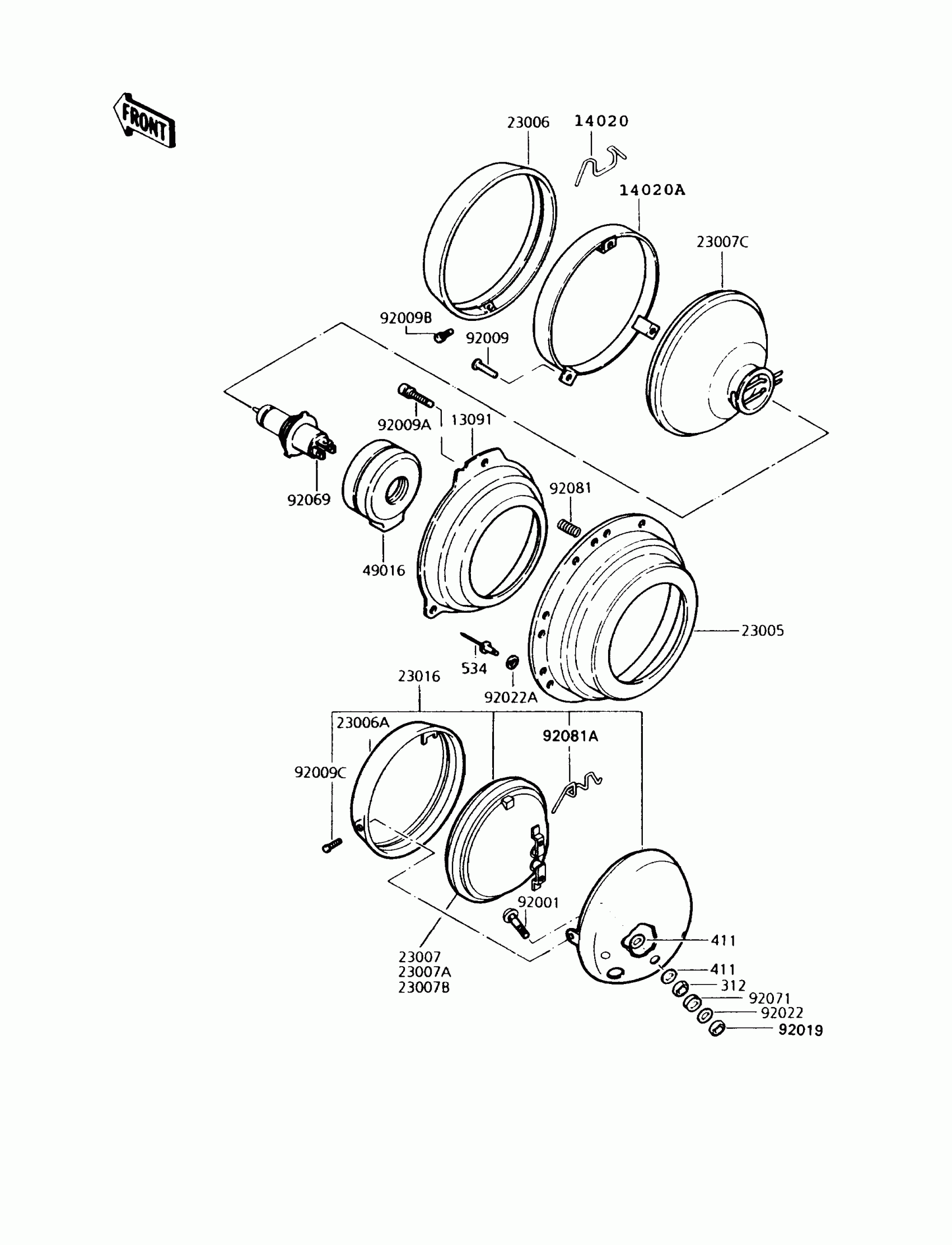

1995 Kawasaki Police 1000 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,HEAD LAMP

13091-4007

1
Out of stock

14020

RETAINER,CLIP

14020-1096

1
Out of stock

14020A

RETAINER,HEAD LAMP

14020-4002

1
Out of stock

23005

BODY-COMP-HEAD LAMP

23005-4003

1

$18.42

In stock

23006

RIM-LAMP,HEAD

23006-4002

1
Out of stock

23006A

1

$30.98

In stock

23007

LENS-COMP,PURSUIT LAMP,RED

23007-1001

1
Out of stock

23007A

LENS-COMP,PURSUIT LAMP,BLUE

23007-1002

1
Out of stock

23007B

1

$49.01

In stock

23007C

1

$163.61

In stock

23016

LAMP-ASSY,PURSUIT,RED

23016-4004

1
Out of stock

49016

COVER-SEAL

49016-1016

1
Out of stock

92001

BOLT,CARRIAGE

92001-4015

1

$0.81

In stock

92009

SCREW,PAN HEAD

92009-4007

1
Out of stock

92009A

SCREW,PAN HEAD

92009-4008

1
Out of stock

92009B

SCREW,4X14

92009-4009

1
Out of stock

92009C

SCREW,4X8

92009-4011

1
Out of stock

92019

NUT,LOCK,6MM

92019-008

1

$3.36

In stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92022A

WASHER

92022-3539

1
Out of stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92071

GROMMET

92071-056

1

$3.39

In stock

92081

SPRING

92081-4014

1
Out of stock

92081A

SPRING,CLIP

92081-4015

1

$1.78

In stock

312

NUT 6MM

312B0600

1
Out of stock

411

WASHER PLAIN 8MM

411B0800

1
Out of stock

534

RIVET-BLIND REG

534YW0608

1

$0.97

In stock
