1995 Kawasaki Police 1000 Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1995 Kawasaki Police 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

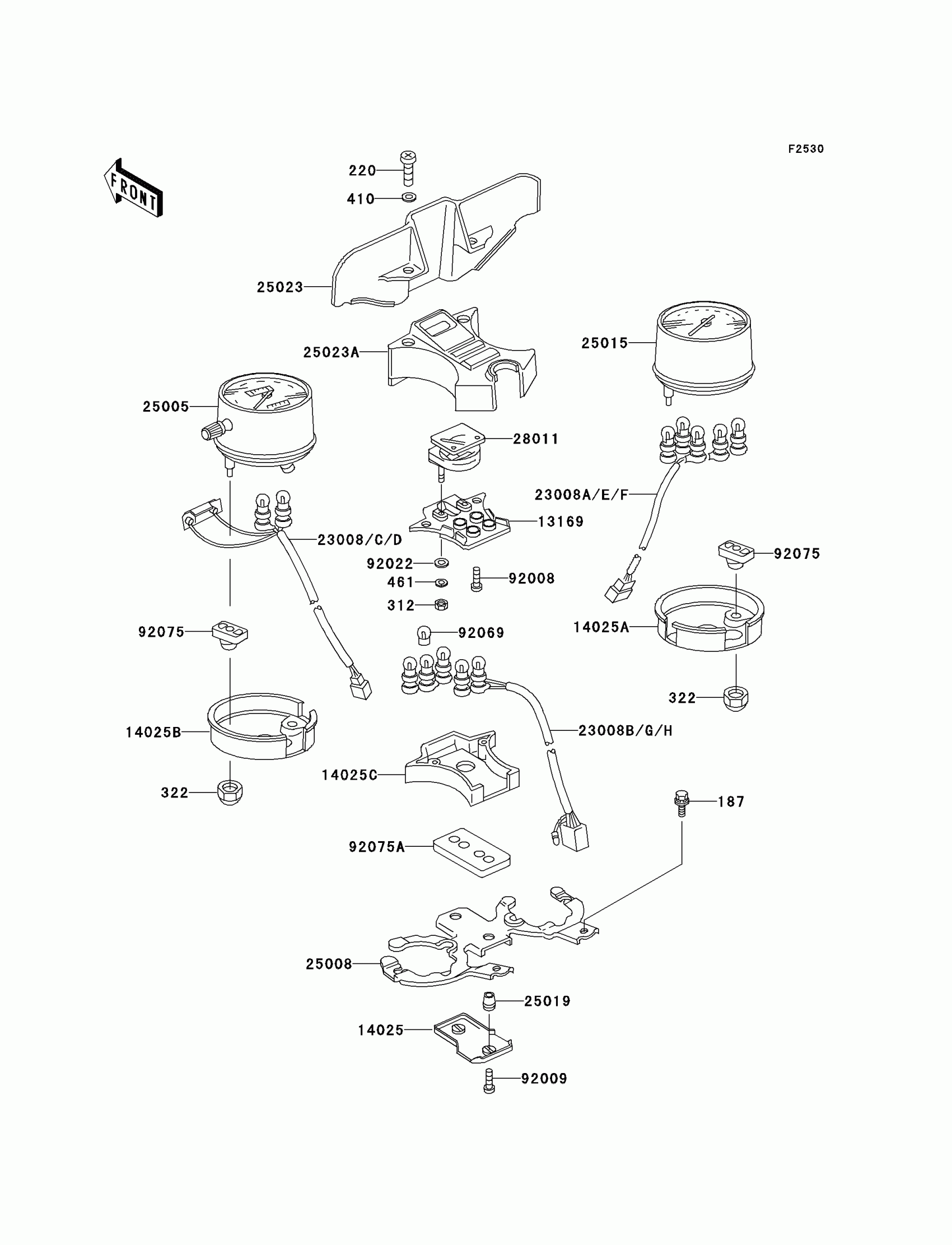

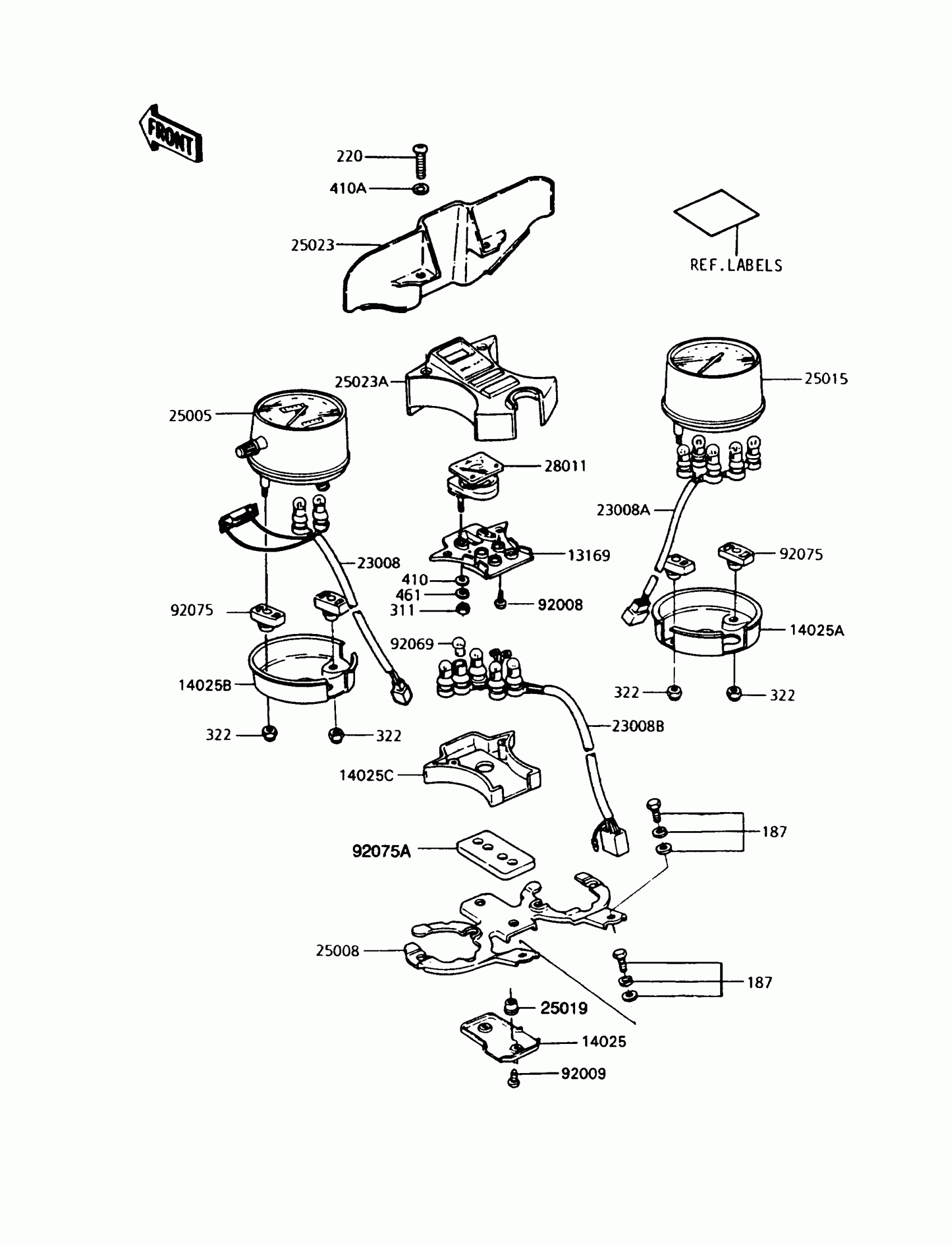

1995 Kawasaki Police 1000 Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13169

PLATE,SOCKET

13169-1238

1

$20.14

In stock

14025

COVER,METER BRACKET

14025-1211

1
Out of stock

14025A

COVER,TACHOMETER

14025-1458

1
Out of stock

14025B

COVER,SPEEDOMETER

14025-4019

1

$51.67

In stock

14025C

COVER,PILOT BOX,LWR

14025-4020

1

$35.61

In stock

23008

1

$94.65

In stock

23008A

1

$104.19

In stock

23008B

SOCKET-ASSY,FUEL METER

23008-1144

1
Out of stock

25005

SPEEDOMETER,MPH

25005-1170

1

$1,213.98

In stock

25008

BRACKET-METER

25008-4001

1

$89.53

In stock

25015

TACHOMETER,X1000RPM

25015-1114

1

$754.73

In stock

25019

DAMPER,METER

25019-023

1

$3.42

In stock

25023

COVER-METER CASE

25023-4003

1

$11.22

In stock

25023A

1

$88.71

In stock

28011

METER,FUEL

28011-1027

1

$138.51

In stock

92008

SCREW,TAPPING,3.5X12

92008-012

1
Out of stock

92009

SCREW,TAPPING,4X10

92009-1040

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92075

DAMPER,SHOCK,METER

92075-1101

1

$8.39

In stock

92075A

DAMPER,PILOT BOX

92075-1246

1

$18.02

In stock

187

BOLT 6X14

187B0614

1
Out of stock

220

SCREW-PAN-CROS

220C0445

1

$3.12

In stock

311

NUT-HEX

311B0400

1
Out of stock

322

NUT-CAP

322C0500

1
Out of stock

410

WASHER PLAIN 4MM

410B0400

1
Out of stock

410A

1

$0.53

In stock

461

WASHER SPRING 4MM

461F0400

1
Out of stock
