1986 Kawasaki Police 1000 Chassis Electrical Equipment Diagram

← All diagrams

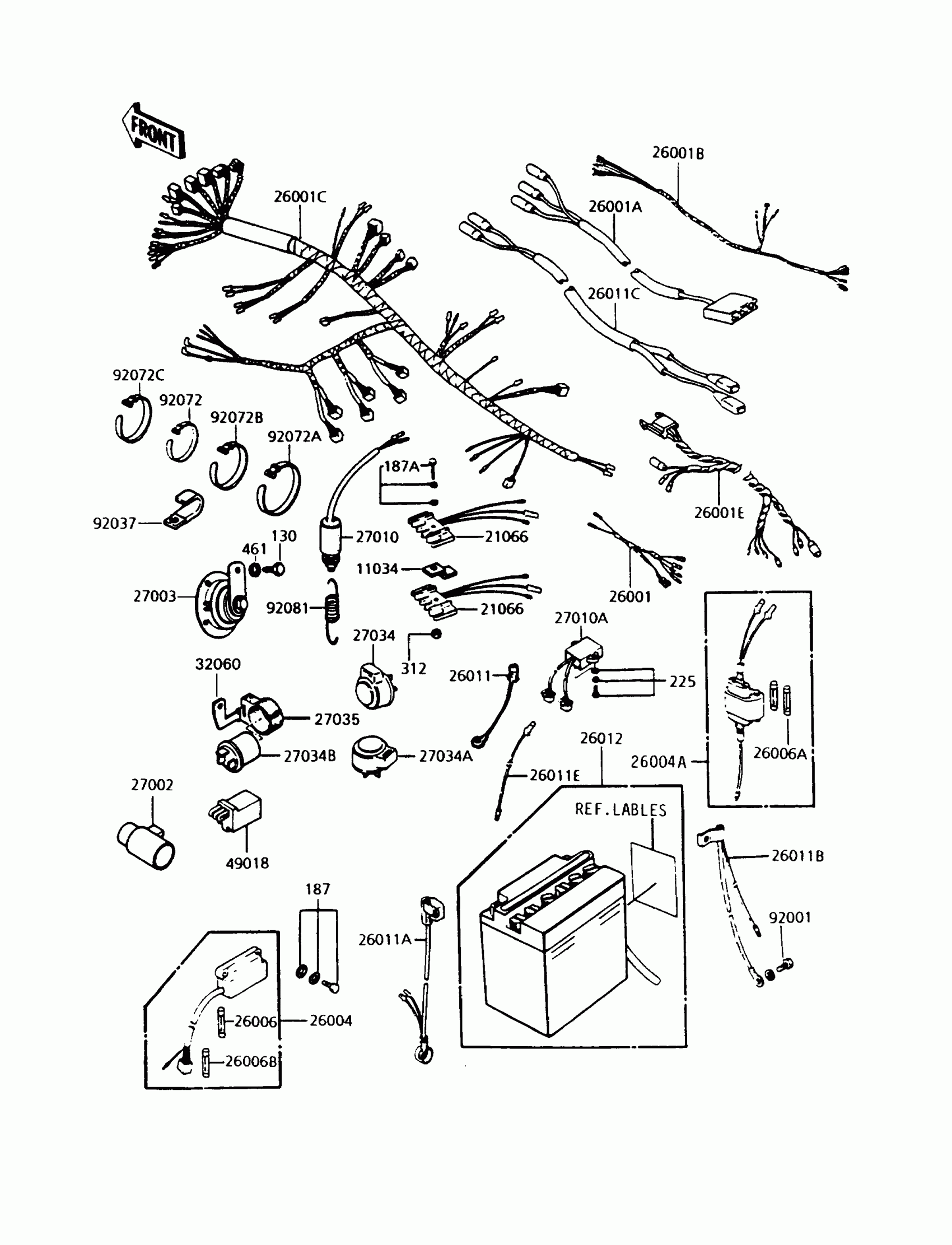

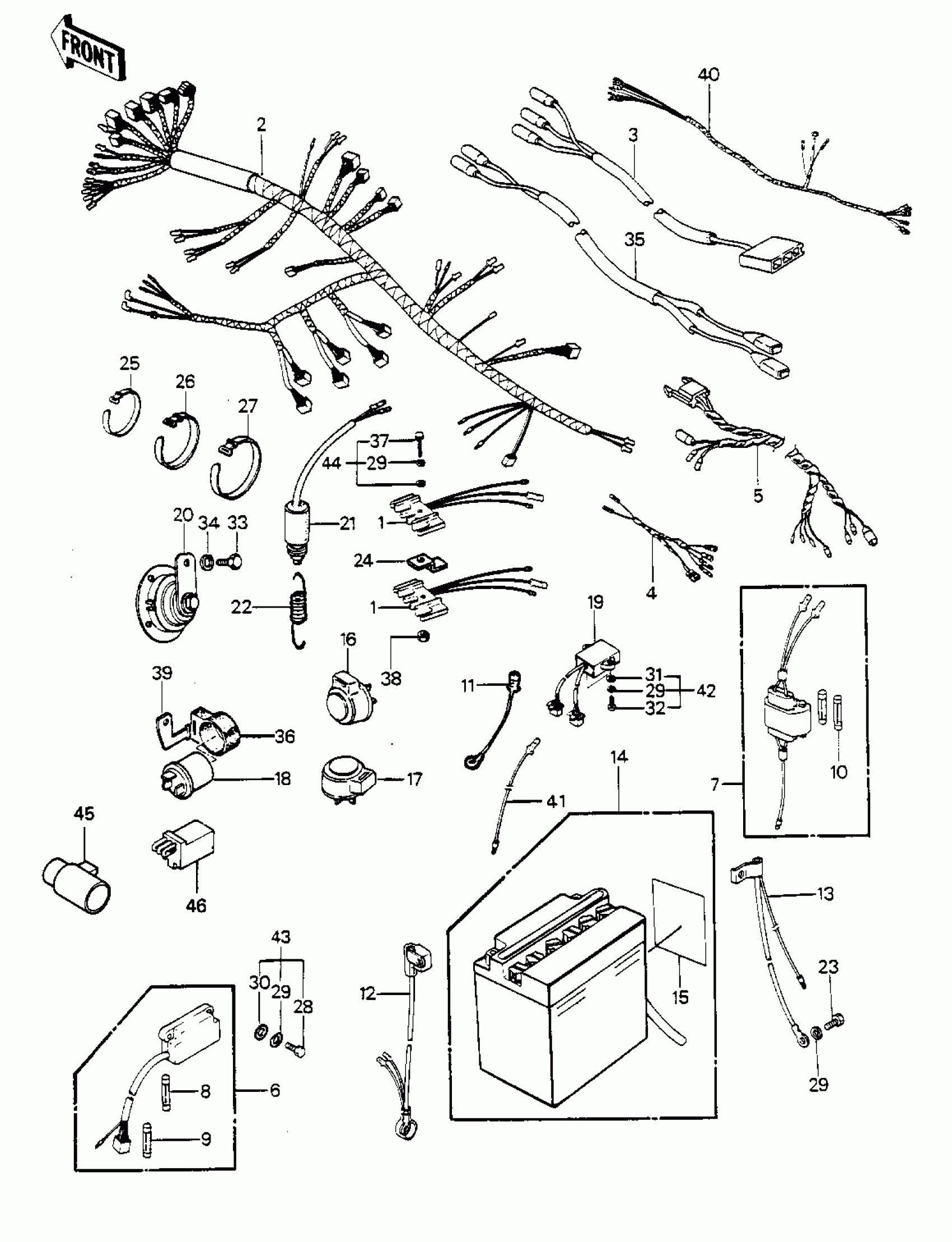

Find the part on the Chassis Electrical Equipment diagram for your 1986 Kawasaki Police 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Police 1000 Chassis Electrical Equipment Diagram

#

Description
Price
Status
Order Qty

1

REGULATOR

21066-024

Out of stock

2

HARNESS,MAIN

26001-1341

Out of stock

2

HARNESS,MAIN

26001-4025

Out of stock

2

HARNESS,MAIN

26001-4025

Out of stock

3

HARNESS,TAIL

26001-1343

Out of stock

4

HARNESS,TAIL LAMP

26001-1013

Out of stock

5

HARNESS,FAIRING

26001-1342

Out of stock

5

HARNESS,FAIRING

26001-4020

Out of stock

6

FUSE-ASSY

26004-1011

Out of stock

7

FUSE-ASSY,ACCESSORY

26004-1014

Out of stock

8

FUSE,10A,L=25

26006-003

Out of stock

9

FUSE,30A,L=25

26006-1005

Out of stock

10

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-1002

Out of stock

11

WIRE-LEAD,ACCESSORY GROUND

26011-1100

Out of stock

12

WIRE-LEAD,BATTERY,(+)

26011-1118

Out of stock

13

WIRE-LEAD,BATTERY,(-)

26011-1124

Out of stock

14

YUA BAT YB18L-A

26012-1039

Out of stock

15

LABEL-WARNING,BATTERY

56040-1036

Out of stock

15

LABEL-WARNING,BATTERY

56040-1036

Out of stock

16

RELAY-ASSY,TURN SIGNAL

27002-011

Out of stock

17

RELAY,TURN SIGNAL

27002-016

Out of stock

18

RELAY,TURN SIGNAL

27034-1001

Out of stock

19

SWITCH,TURN SIGNAL OPERATION

27010-1048

Out of stock

20

HORN

27003-1047

Out of stock

21

SWITCH,REAR BRAKE

27010-1019

Out of stock

22

SPRING,BRAKE SWITCH

92081-1366

Out of stock

23

BOLT,6X10

92001-137

Out of stock

24

BRACKET,HAZARD REGULATOR

11034-4163

Out of stock

25

BAND,L=149

92072-031

Out of stock

26

BAND,L=186

92072-056

Out of stock

27

BAND,L=218

92072-032

Out of stock

28

BOLT 6X22

112B0622

Out of stock

29

WASHER SPRING 6MM

461F0600

Out of stock

29

WASHER SPRING 6MM

461F0600

Out of stock

30

WASHER PLAIN 6MM

411B0600

Out of stock

31

WASHER-PLAIN-SMALL,6MM

410B0600

Out of stock

32

SCREW-PAN-CROS,6X20,WHITE

220B0620

Out of stock

33

BOLT-SMALL-UPSET,8X16

115G0816

Out of stock

33

BOLT-FLANGED

130D0814

Out of stock

34

WASHER SPRING 8MM

461F0800

Out of stock

35

WIRE-LEAD,TURN SIGNAL

26011-1148

Out of stock

36

DAMPER,RELAY

27035-001

Out of stock

37

BOLT 6X35

110R0635

Out of stock

38

NUT 6MM

312B0600

Out of stock

39

BRACKET,OUTAGE SWITCH

32060-014

Out of stock

40

HARNESS,SCREW

26001-1344

Out of stock

41

WIRE-LEAD,PURSUIT LAMP

26011-4010

Out of stock

42

SCREW-PAN-WSP-CROS,6X20

225B0620

Out of stock

43

BOLT-UPSET-WSP

187B0622

Out of stock

44

BOLT-UPSET-WSP

187B0635

Out of stock

45

RELAY-ASSY

27002-1051

Out of stock

46

DIODE

49018-1052

Out of stock
