2003 Kawasaki Ninja® ZX™-9R Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2003 Kawasaki Ninja® ZX™-9R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

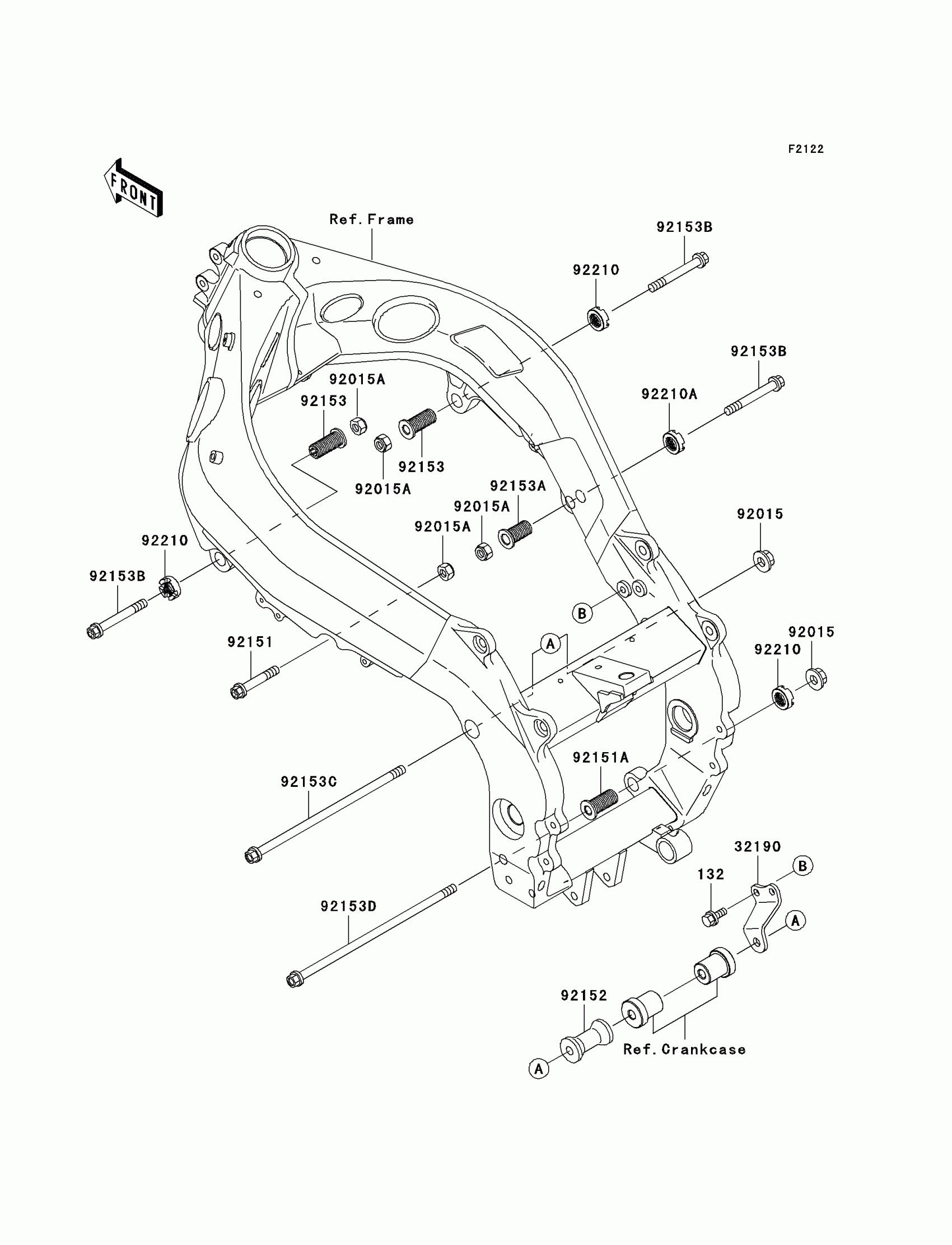

2003 Kawasaki Ninja® ZX™-9R Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,8X20

132J0820

1
Out of stock

32190

1

$16.66

In stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92015A

NUT,LOCK,10MM,BLACK

92015-1189

1
Out of stock

92151

BOLT,FLANGED,10X57

92151-1607

1

$8.81

In stock

92151A

1

$23.81

In stock

92152

1

$39.49

In stock

92153

BOLT,ENGINE MOUNT,18MM

92153-1098

1
Out of stock

92153A

BOLT,ENGINE MOUNT,20MM

92153-1160

1
Out of stock

92153B

BOLT,FLANGED,10X80

92153-1162

1
Out of stock

92153C

BOLT,FLANGED,10X252

92153-1182

1
Out of stock

92153D

BOLT,FLANGED,10X267

92153-1183

1
Out of stock

92210

NUT,18MM

92210-1203

1
Out of stock

92210A

NUT,20MM

92210-1365

1
Out of stock
