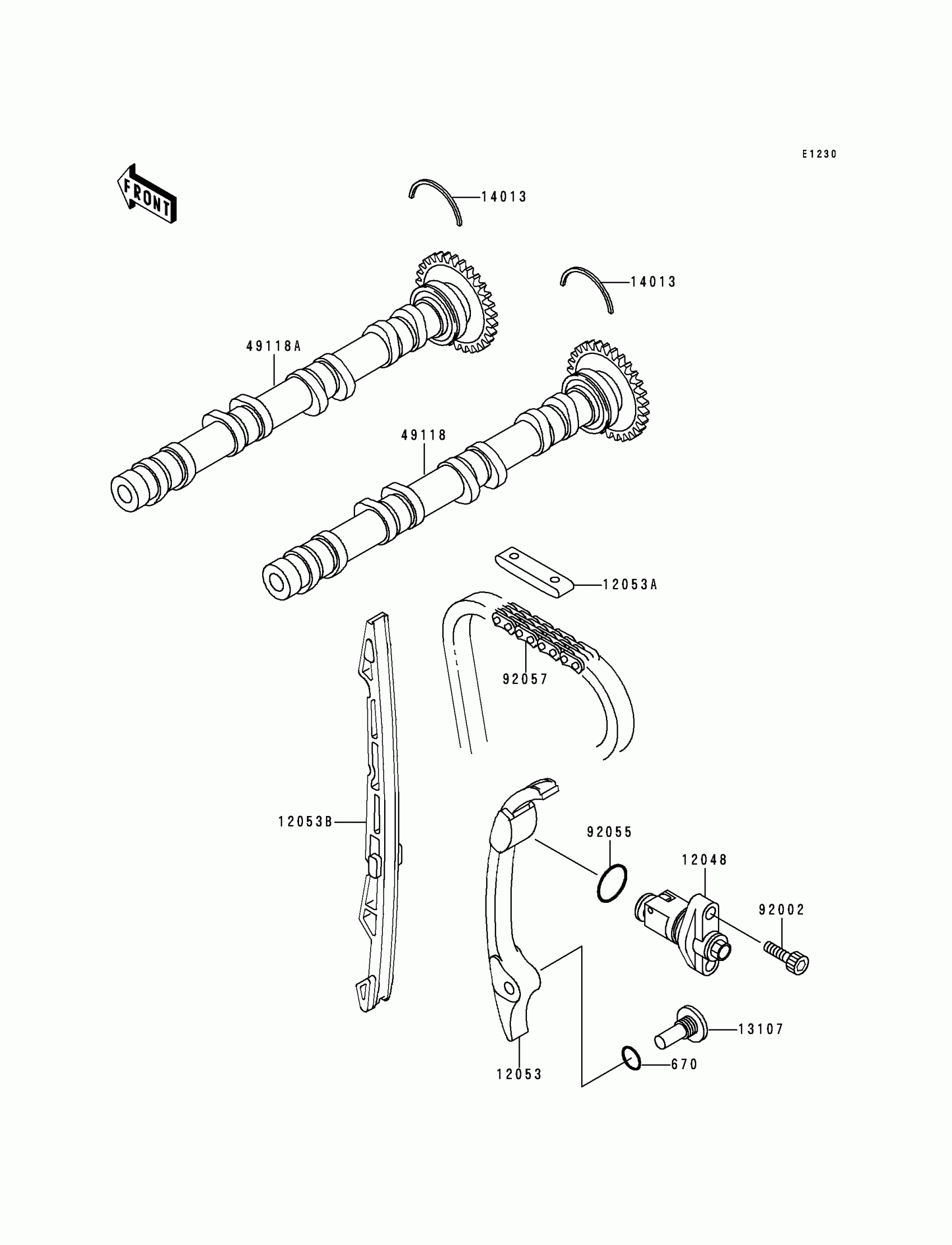

Kawasaki Ninja® ZX™-9R Camshaft(s)/Tensioner Diagram

Description

Price

670

O RING,14MM

670D2014

$4.18

12048

TENSIONER-ASSY

12048-1132

Unavailable

12053

GUIDE-CHAIN,RR

12053-1338

$70.87

12053A

GUIDE-CHAIN,HEAD

12053-1340

$10.86

12053B

GUIDE-CHAIN,FR

12053-1343

$42.99

13107

SHAFT

13107-1280

Unavailable

14013

RING-POSITION,CAMSHAFT

14013-1057

$5.15

49118

CAMSHAFT-COMP,INTAKE

49118-1119

Unavailable

49118A

CAMSHAFT-COMP,EXHAUST

49118-1120

Unavailable

92002

BOLT,SOCKET,6X25

92002-1696

$1.43

92055

RING-O,18.8X1.9

92055-086

$3.29

92057

CHAIN,CAM,88RH2015

92057-1384

$81.81
