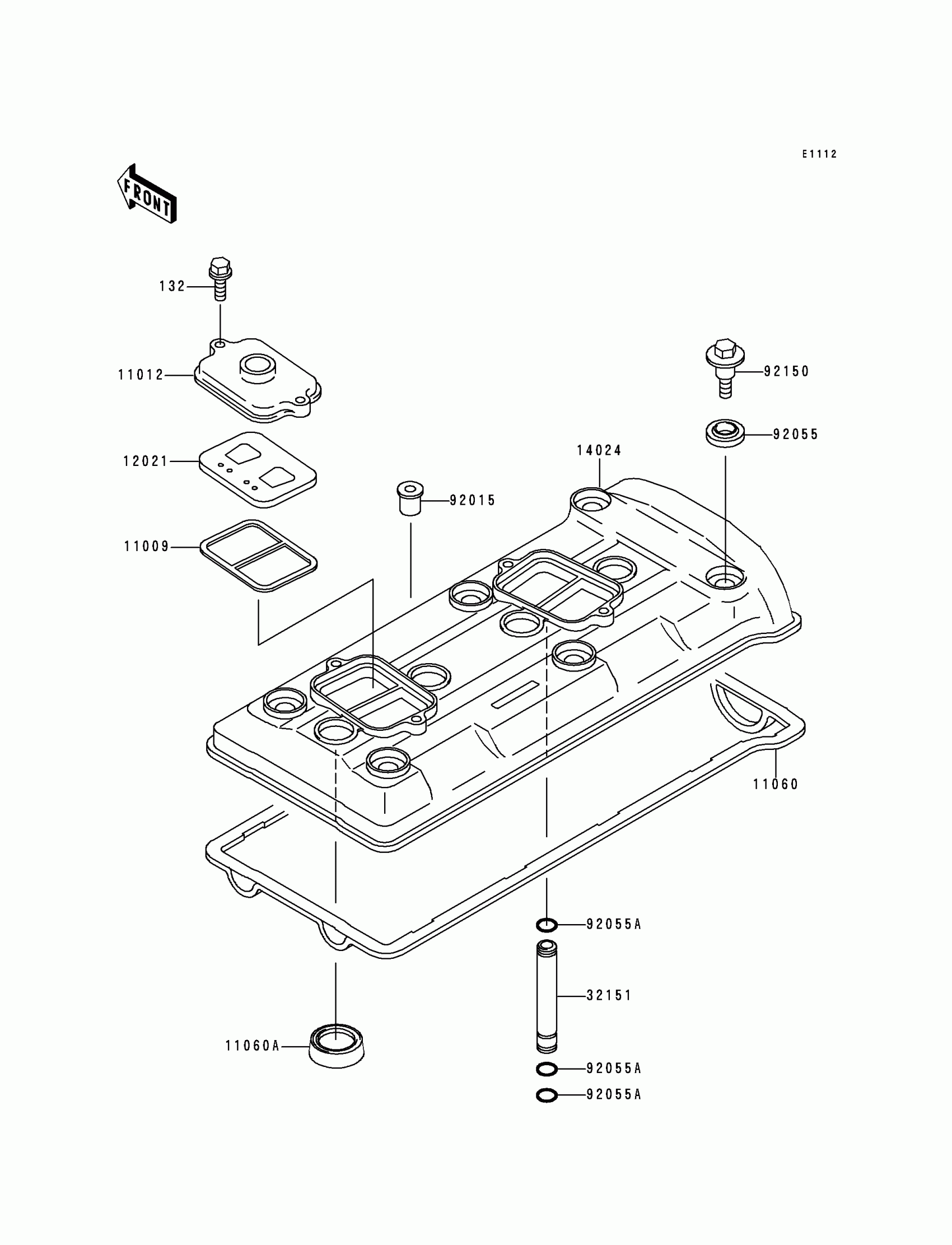

Kawasaki Ninja® ZX™-9R Cylinder Head Cover Diagram

Description

Price

132

BOLT-FLANGED-SMALL

132G0620

Unavailable

11009

GASKET,REED VALVE

11009-1857

$8.25

11012

CAP,REED VALVE

11012-1758

$31.15

11060

GASKET,HEAD COVER

11060-1076

$62.77

11060A

GASKET,PLUG

11060-1077

$6.93

12021

VALVE-ASSY-REED

12021-1053

$81.60

14024

COVER,HEAD

14024-1996

Unavailable

32151

PIPE

32151-1608

$13.07

92015

NUT

92015-1700

$6.55

92055

RING-O,HEAD COVER BOLT

92055-1352

$7.62

92055A

RING-O,9X1.5

92055-1509

$3.55

92150

BOLT,FLANGED,6X23.5

92150-1447

$3.51
