1996 Kawasaki Ninja® ZX™-9R Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1996 Kawasaki Ninja® ZX™-9R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

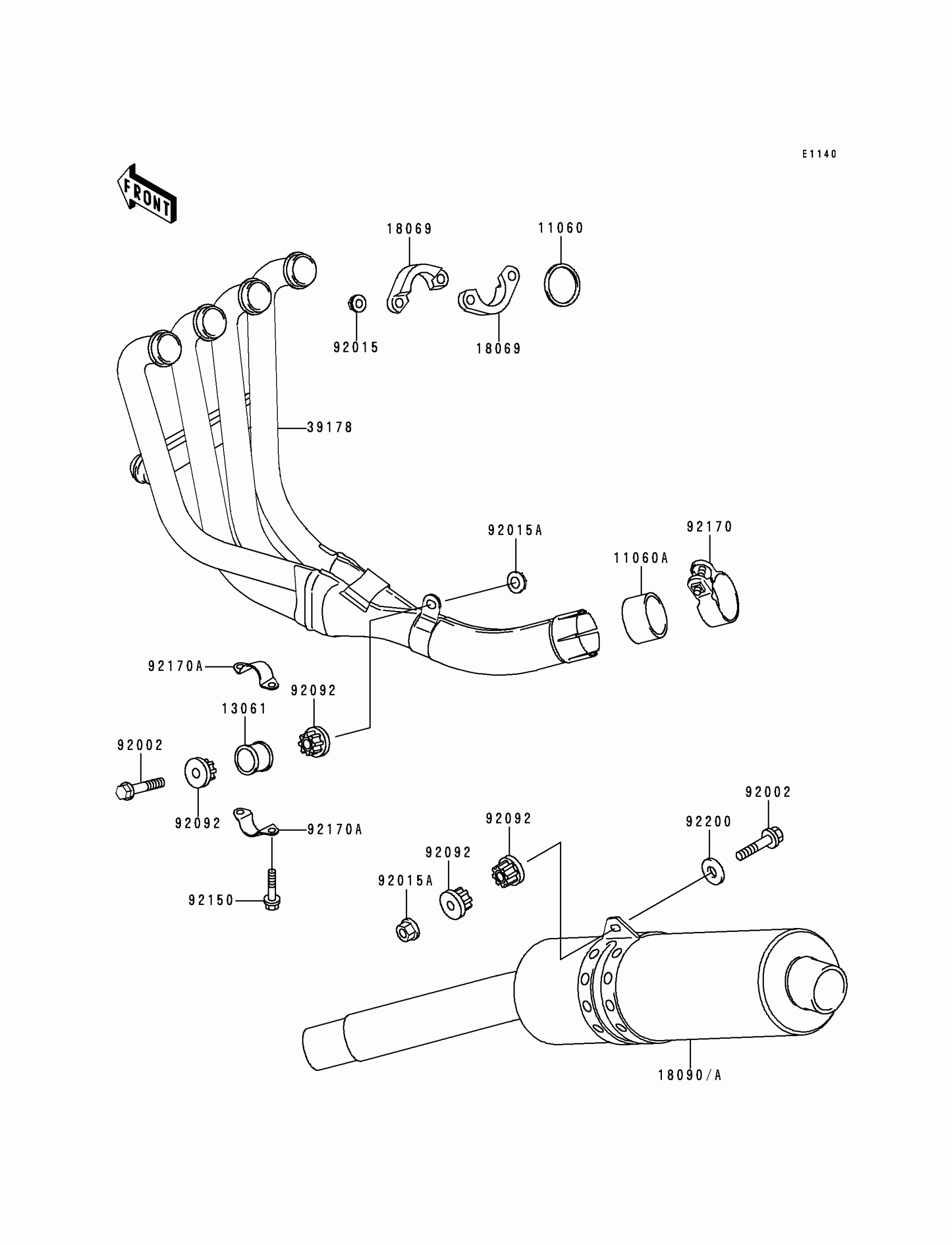

1996 Kawasaki Ninja® ZX™-9R Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,EXHAUST PIPE HOLDER

11060-1103

1
Out of stock

11060A

GASKET,MUFFLER CONNECTING

11060-1376

1
Out of stock

13061

BOSS,MANIFOLD

13061-1447

1
Out of stock

18069

HOLDER-EXHAUST PIPE

18069-1072

1
Out of stock

39178

MANIFOLD-COMP-EXHAUST

39178-1235

1
Out of stock

92002

BOLT,10X55

92002-1127

1
Out of stock

92015

NUT,LOCK,8MM

92015-1380

1
Out of stock

92015A

NUT,FLANGED,10MM

92015-1387

1
Out of stock

92092

BUSHING-RUBBER,MUFFLER

92092-1013

1
Out of stock

92150

BOLT,6X16

92150-1732

1
Out of stock

92170

CLAMP,MUFFLER CONNECTING

92170-1451

1
Out of stock

92170A

CLAMP

92170-1452

1
Out of stock

92200

WASHER,10MM

92200-1313

1
Out of stock

18090

BODY-COMP-MUFFLER

18090-1340

1
Out of stock

18090A

BODY-COMP-MUFFLER

18090-1341

1
Out of stock
