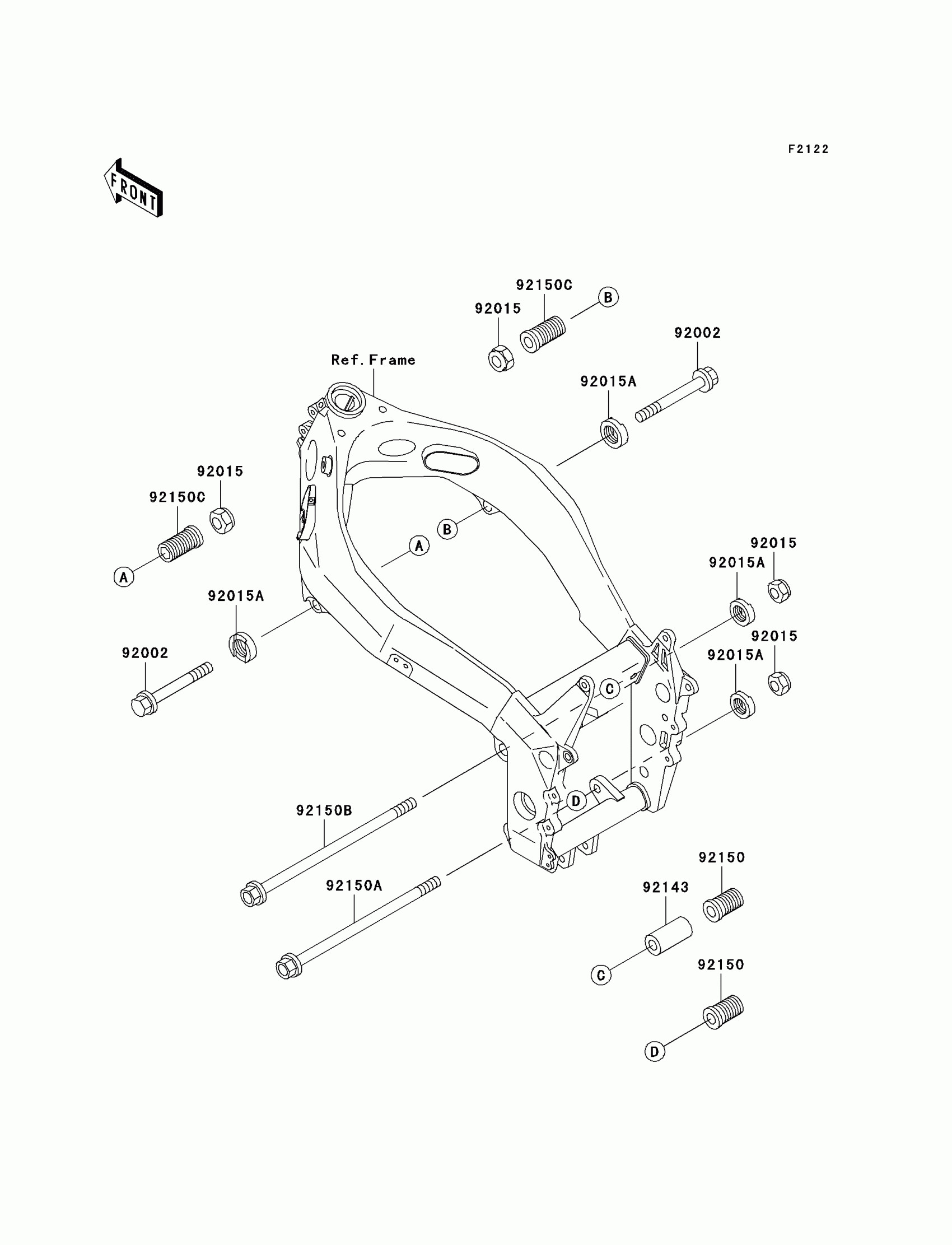

2003 Kawasaki Ninja® ZX™-7R Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2003 Kawasaki Ninja® ZX™-7R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Kawasaki Ninja® ZX™-7R Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92002

BOLT,FLANGED,12X100

92002-1886

1
Out of stock

92015

NUT,LOCK,12MM,BLACK

92015-1190

1
Out of stock

92015A

1

$20.18

In stock

92143

COLLAR,12.5X26X51

92143-1482

1

$29.74

In stock

92150

1

$38.86

In stock

92150A

BOLT,FLANGED,12X228

92150-1952

1

$33.10

In stock

92150B

BOLT,FLANGED,12X250

92150-1953

1

$39.40

In stock

92150C

1

$49.20

In stock
