1992 Kawasaki Ninja® ZX™-7R Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 1992 Kawasaki Ninja® ZX™-7R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

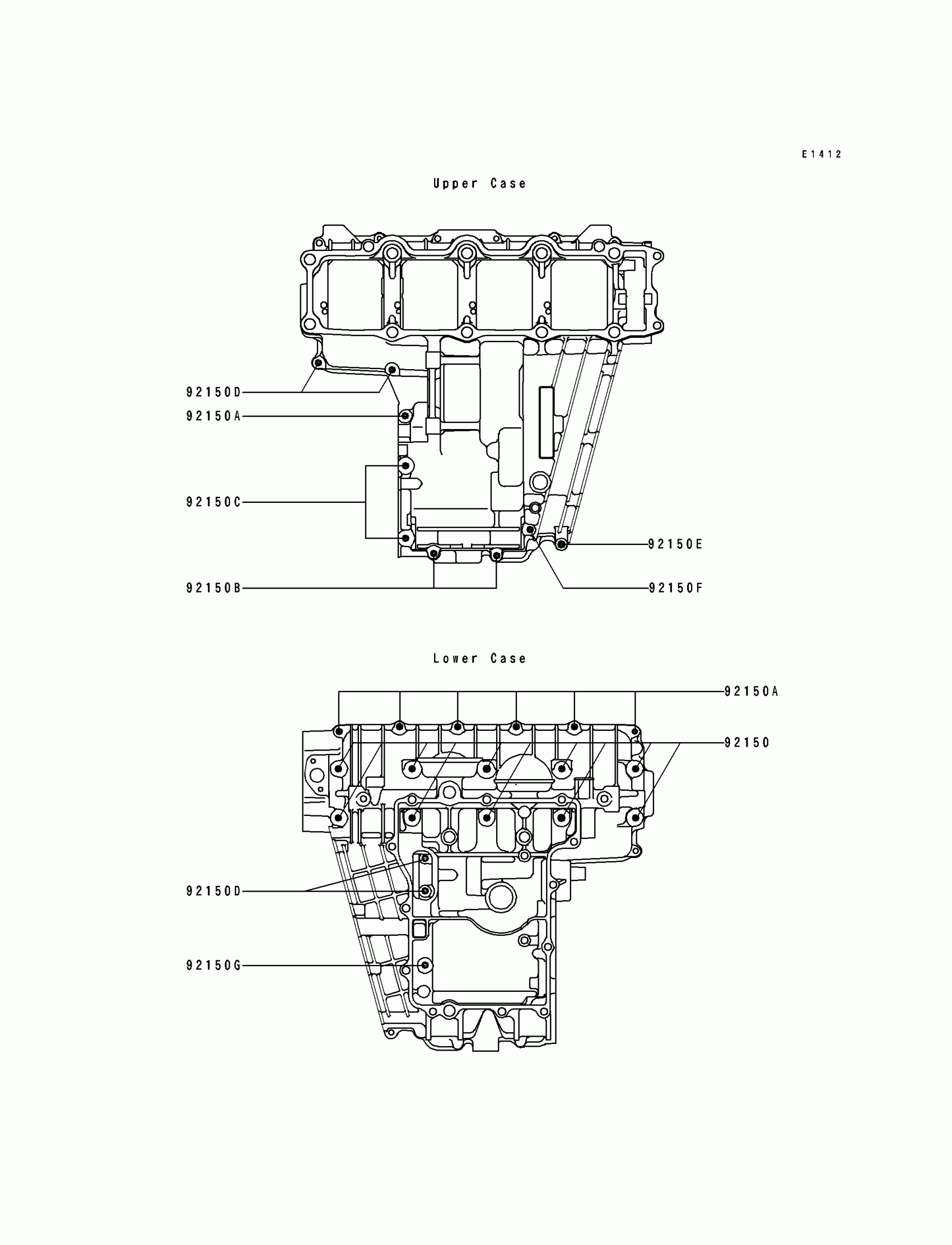

1992 Kawasaki Ninja® ZX™-7R Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92150

BOLT,8X90

92150-1163

1

$9.27

In stock

92150A

BOLT,6X38

92150-1301

1

$3.43

In stock

92150B

BOLT,6X105

92150-1464

1
Out of stock

92150C

BOLT,8X70

92150-1483

1

$7.36

In stock

92150D

BOLT,6X35

92150-1547

1
Out of stock

92150E

BOLT,6X60

92150-1548

1

$4.32

In stock

92150F

BOLT,6X70

92150-1549

1

$4.66

In stock

92150G

BOLT,8X115

92150-1550

1

$7.71

In stock
