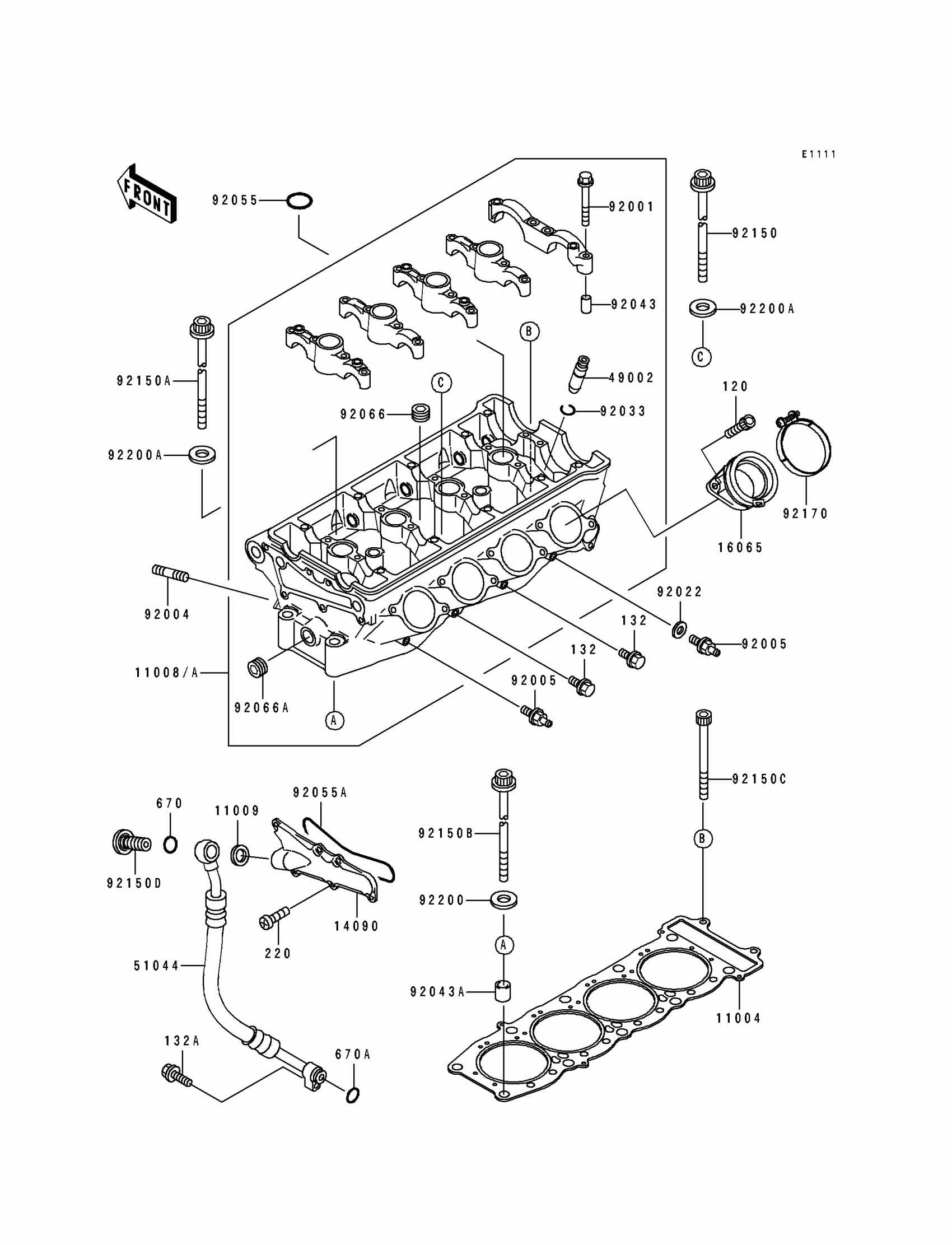

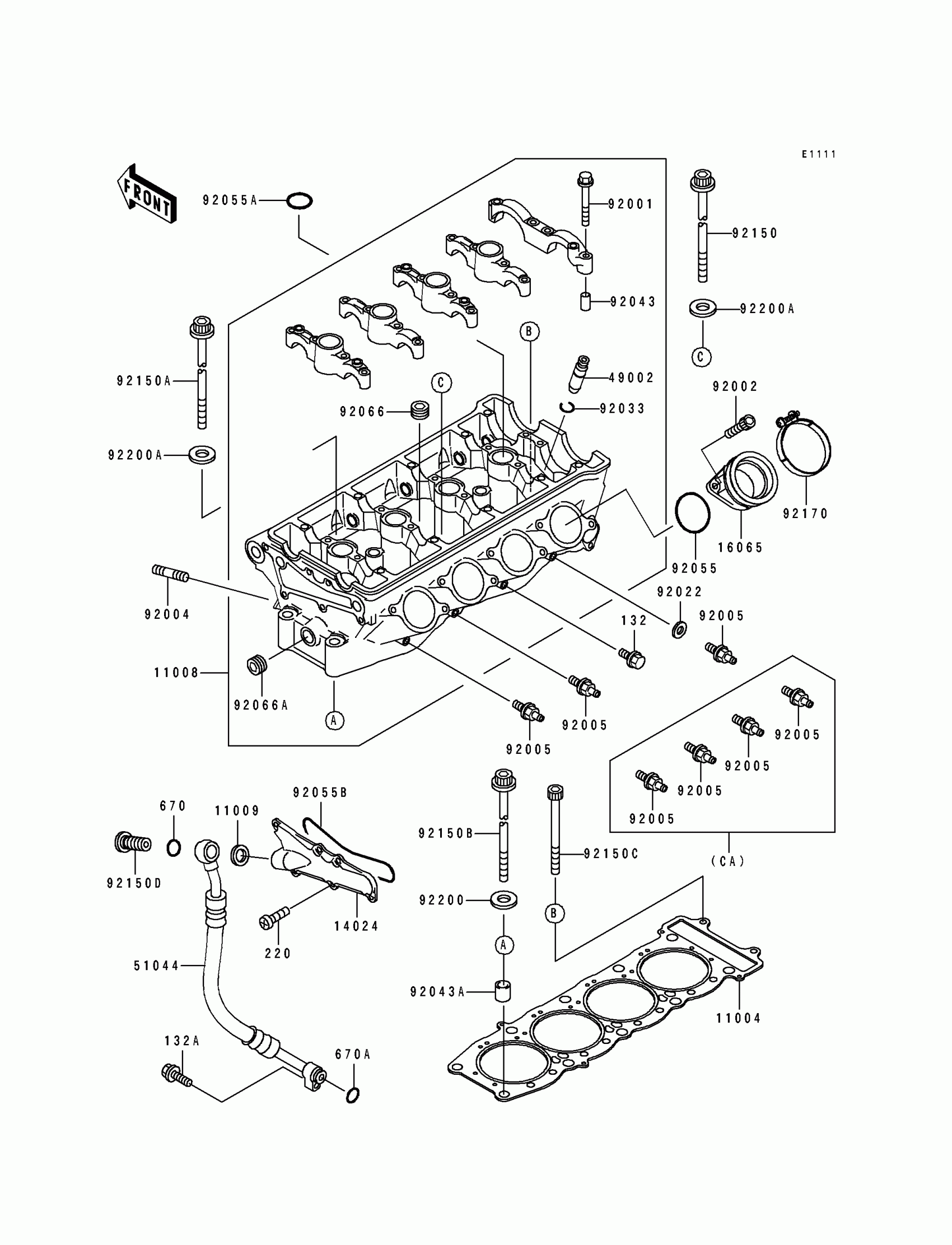

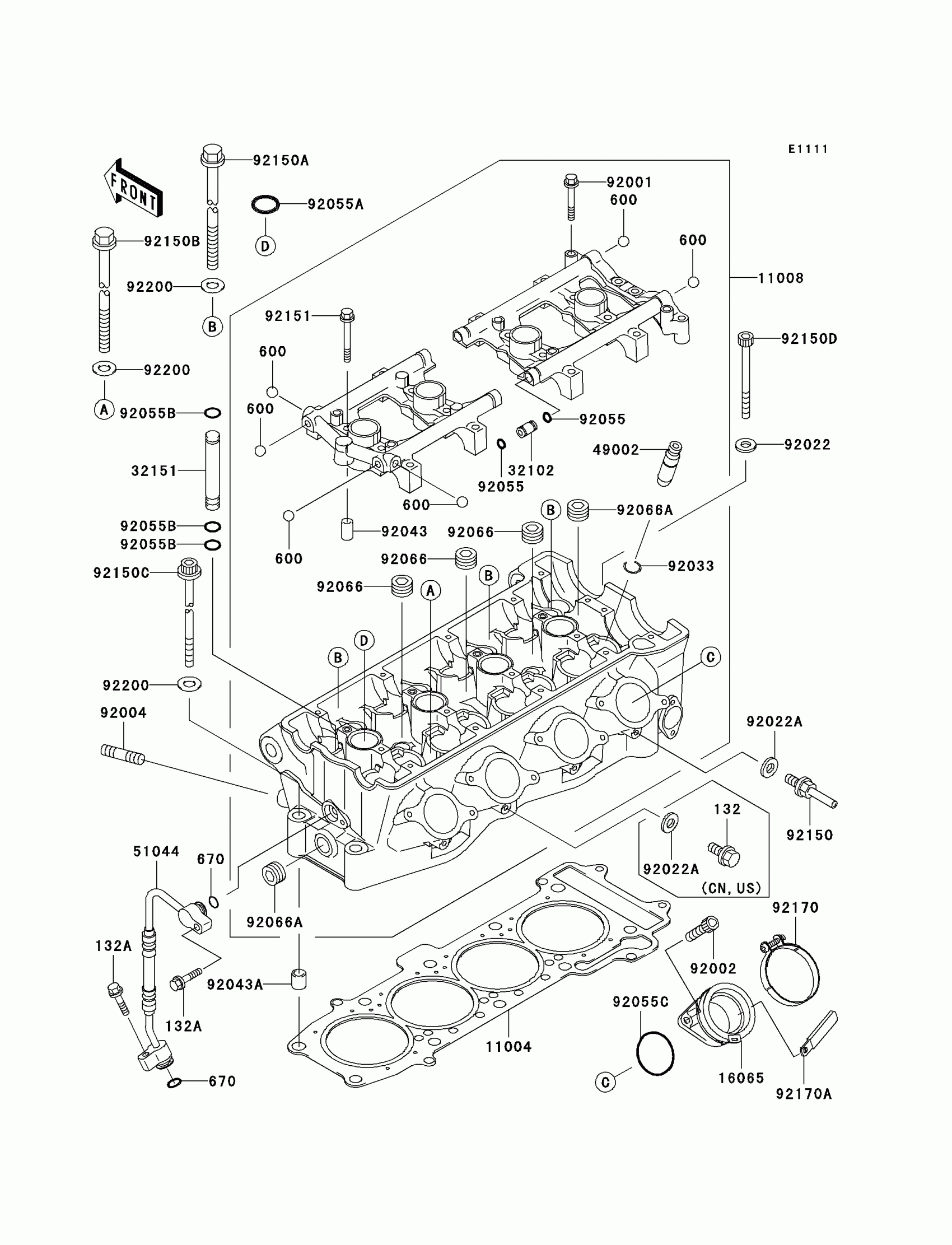

Kawasaki Ninja® ZX™-7R Cylinder Head Diagram

#

Description
Price

11004

GASKET-HEAD,T=0.65,STD

11004-1223

$130.75

11008

HEAD-COMP-CYLINDER

11008-1262

Unavailable

11008A

HEAD-COMP-CYLINDER

11008-1263

Unavailable

11009

GASKET,14X19.5X1.4

11009-1461

$4.04

14090

COVER,HEAD,LH

14024-1997

Unavailable

16065

HOLDER-CARBURETOR

16065-1239

Unavailable

49002

GUIDE-VALVE

49002-1116

Unavailable

51044

TUBE-ASSY,OIL

51044-1135

$198.77

92001

BOLT,FLANGED,6X38

92001-1105

$3.57

92004

STUD,8X30,BLACK

92004-1101

Unavailable

92005

FITTING

92005-1221

$15.83

92005

FITTING

92005-1221

$15.83

92022

WASHER,6.2X11X1

92022-304

$2.76

92033

RING-SNAP

92033-1247

$2.98

92043

PIN,6.2X8X14

92043-1263

$0.46

92043A

PIN,10.1X12X14

92043-4009

$4.67

92055

RING-O,25.5X2

92055-1403

$3.14

92055A

RING-O

92055-1490

$11.80

92066

PLUG,PT1/2X12.5

92066-1253

$6.85

92066A

PLUG,PT3/8X10

92066-1262

$2.66

92150

BOLT,10X173

92150-1460

Unavailable

92150A

BOLT,10X155

92150-1461

Unavailable

92150B

BOLT,10X137

92150-1462

$24.10

92150C

BOLT,6X100

92150-1463

$10.34

92150D

BOLT,HEAD,14MM

92150-1543

$23.51

92170

CLAMP

92170-1161

Unavailable

92200

WASHER,10.5X19X2.3

92200-1042

$2.99

92200A

WASHER,10.5X20X4.5

92200-1086

$9.90

120

BOLT-SOCKET,6X18

120P0618

Unavailable

132

BOLT-FLANGED-SMALL,6X10

132G0610

Unavailable

132

BOLT-FLANGED-SMALL,6X10

132G0610

Unavailable

132A

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

220

SCREW-PAN-CROS,6X14

220B0614

$1.14

670

O RING,15MM

670B2015

$1.08

670A

O RING,10MM

670D2010

$1.41
