1994 Kawasaki Ninja® ZX™-7R Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 1994 Kawasaki Ninja® ZX™-7R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

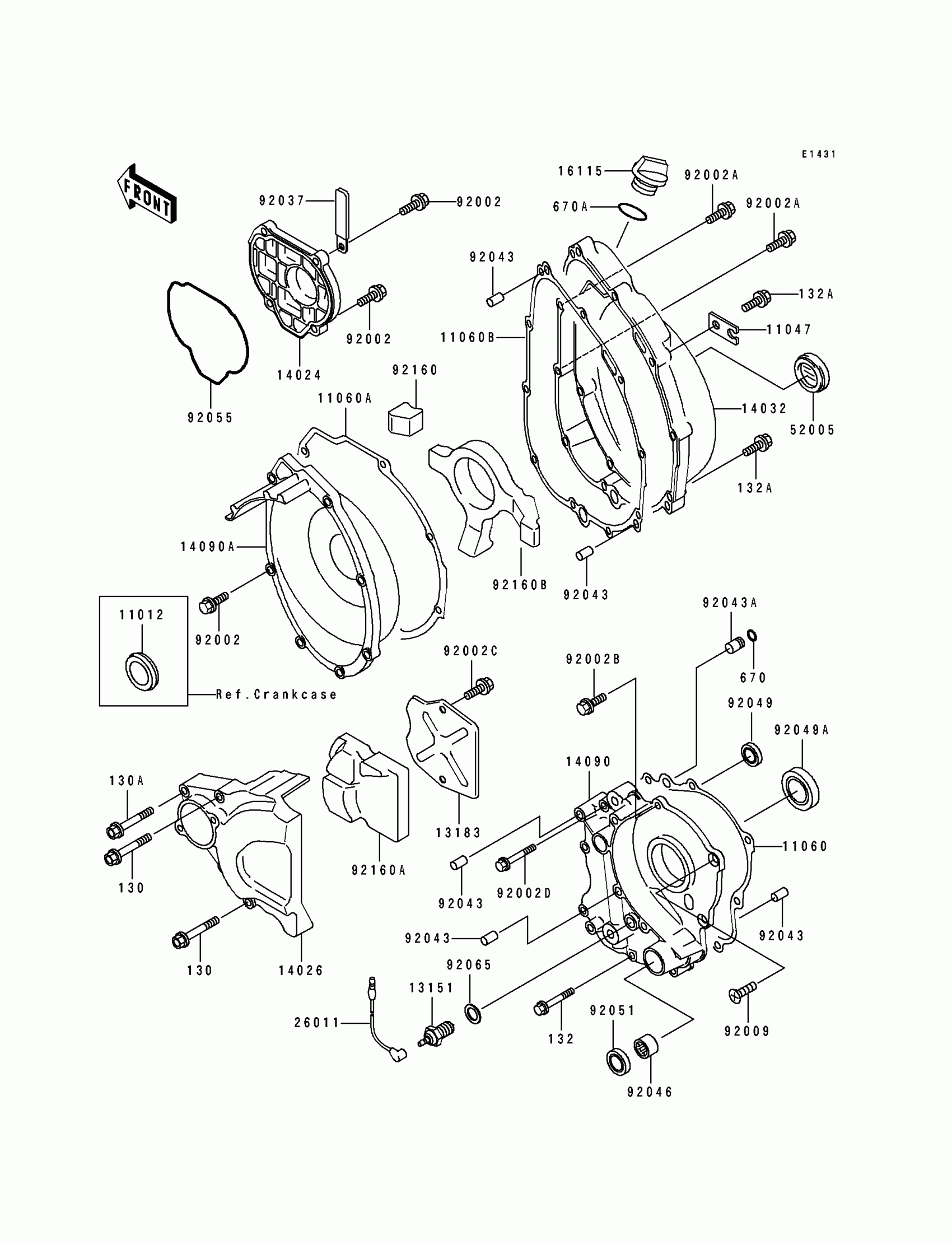

1994 Kawasaki Ninja® ZX™-7R Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,LH

11012-1770

1
Out of stock

11047

BRACKET,THROTTLE ADJUST SCREW

11047-1518

1
Out of stock

11060

GASKET,TRANSMISSION COVER

11060-1353

1
Out of stock

11060A

GASKET,BREATHER COVER

11060-1356

1
Out of stock

11060B

GASKET,CLUTCH COVER

11060-1623

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1007

1
Out of stock

13183

PLATE,CHAIN COVER

13183-1717

1
Out of stock

14024

COVER,PULSING

14024-1998

1
Out of stock

14026

COVER-CHAIN

14026-1166

1
Out of stock

14032

COVER-CLUTCH

14032-1346

1
Out of stock

14090

COVER,TRANSMISSION

14090-1051

1
Out of stock

14090A

COVER,BREATHER

14090-1052

1
Out of stock

16115

CAP-OIL FILLER

16115-1053

1
Out of stock

26011

WIRE-LEAD

26011-1510

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1057

1
Out of stock

92002

BOLT,6X20

92002-1343

1
Out of stock

92002A

BOLT,6X25

92002-1344

1
Out of stock

92002B

BOLT,6X16

92002-1439

1
Out of stock

92002C

BOLT,6X10

92002-1449

1
Out of stock

92002D

BOLT,6X30

92002-1622

1
Out of stock

92009

SCREW,6X16

92009-1360

1
Out of stock

92037

CLAMP

92037-1877

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92043A

PIN

92043-1456

1
Out of stock

92046

BEARING-NEEDLE,HK1312

92046-1148

1
Out of stock

92049

SEAL-OIL,SD-8187

92049-1017

1
Out of stock

92049A

SEAL-OIL,TC32488

92049-1361

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O,PULSING COVER

92055-1494

1
Out of stock

92065

GASKET,10.5X16X1

92065-058

1
Out of stock

92160

DAMPER,SOUND ARRESTER

92160-1282

1
Out of stock

92160A

DAMPER,SOUND ARRESTER

92160-1289

1
Out of stock

92160B

DAMPER,SOUND ARRESTER

92160-1465

1
Out of stock

130

BOLT-FLANGED,6X35

130J0635

1
Out of stock

130A

BOLT-FLANGED,6X45,BLACK

130J0645

1
Out of stock

132

BOLT-FLANGED-SMALL,6X30

132E0630

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock

670

O RING,5MM

670B1505

1
Out of stock

670A

O RING,20MM

670B2020

1
Out of stock
