1989 Kawasaki Ninja® ZX™-7 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1989 Kawasaki Ninja® ZX™-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

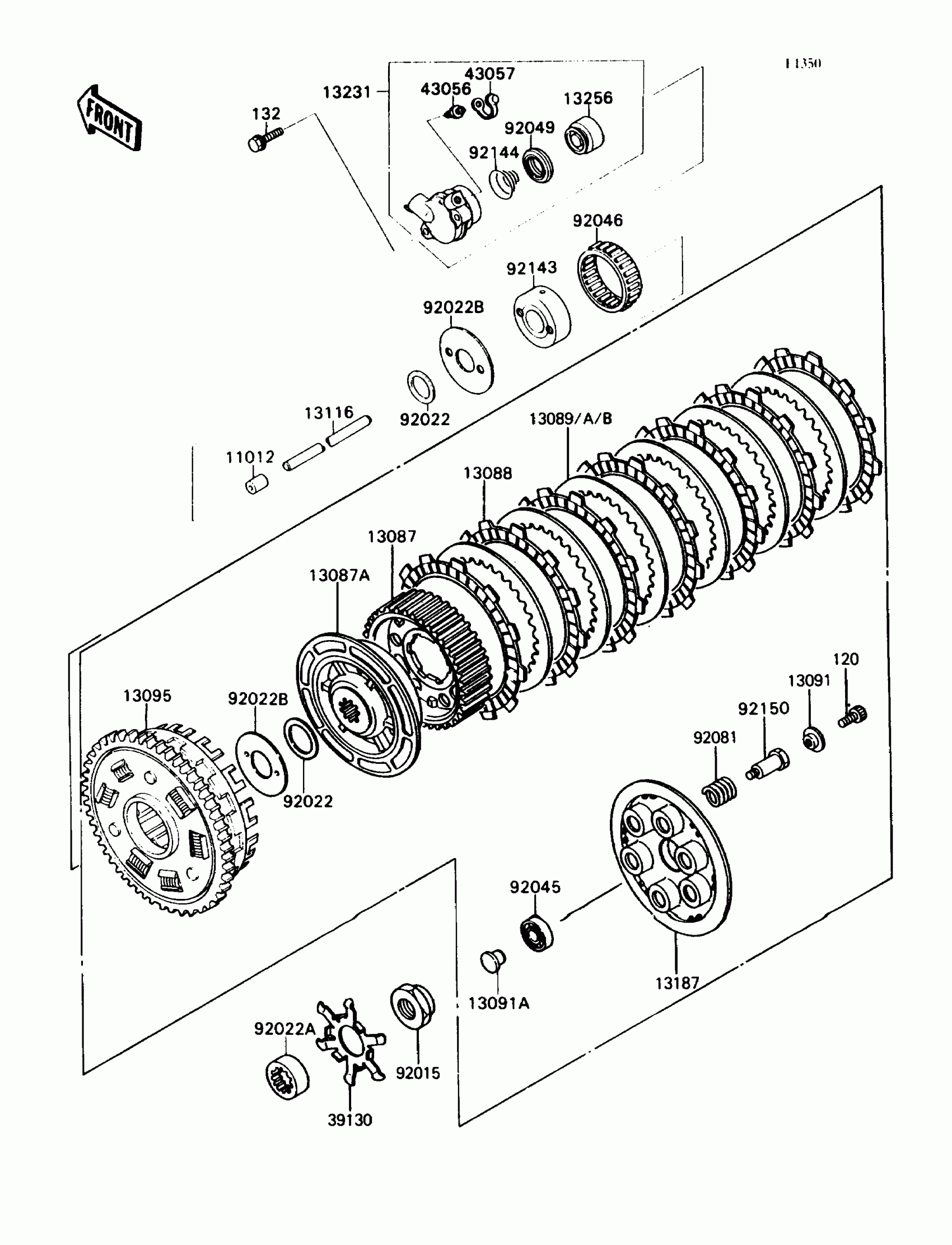

1989 Kawasaki Ninja® ZX™-7 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,PUSHROD

11012-1569

1
Out of stock

13087

HUB-CLUTCH

13087-1080

1
Out of stock

13087A

HUB-CLUTCH

13087-1117

1
Out of stock

13088

PLATE-FRICTION

13088-040

1
Out of stock

13089

PLATE-CLUTCH,T=2.0

13089-026

—
Out of stock

13089A

PLATE-CLUTCH,T=2.3

13089-1004

—
Out of stock

13089B

PLATE-CLUTCH,T=2.6

13089-1067

—
Out of stock

13091

HOLDER,CLUTCH SPRING

13091-1041

1
Out of stock

13091A

HOLDER,CLUTCH PUSH ROD

13091-1085

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-1200

1
Out of stock

13116

ROD-PUSH

13116-1137

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-1067

1
Out of stock

13231

RELEASE-ASSY-CLUTCH

13231-1065

1
Out of stock

13256

PISTON

13256-1052

1
Out of stock

39130

SPRING-LEAF

39130-1063

1
Out of stock

43056

BREATHER

43056-1052

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

92015

NUT

92015-1538

1
Out of stock

92022

WASHER

92022-1719

1
Out of stock

92022A

WASHER,TOOTHED,21.7X36X15.5

92022-1782

1
Out of stock

92022B

WASHER,CLUTCH THRUST

92022-1846

1
Out of stock

92045

BEARING-BALL,6001C3ML01

92045-1235

1
Out of stock

92046

BEARING-NEEDLE,K55X63X20

92046-1159

1
Out of stock

92049

SEAL-OIL,PISTON

92049-1165

1
Out of stock

92081

SPRING,CLUTCH

92081-1114

1
Out of stock

92143

COLLAR,INPUTSHAFT

92143-1017

1
Out of stock

92144

SPRING,CLUTCH RELEASE

92144-1084

1
Out of stock

92150

BOLT,CLUTCH

92150-1310

1
Out of stock

120

BOLT-SOCKET,6X16

120Q0616

1
Out of stock

132

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock
