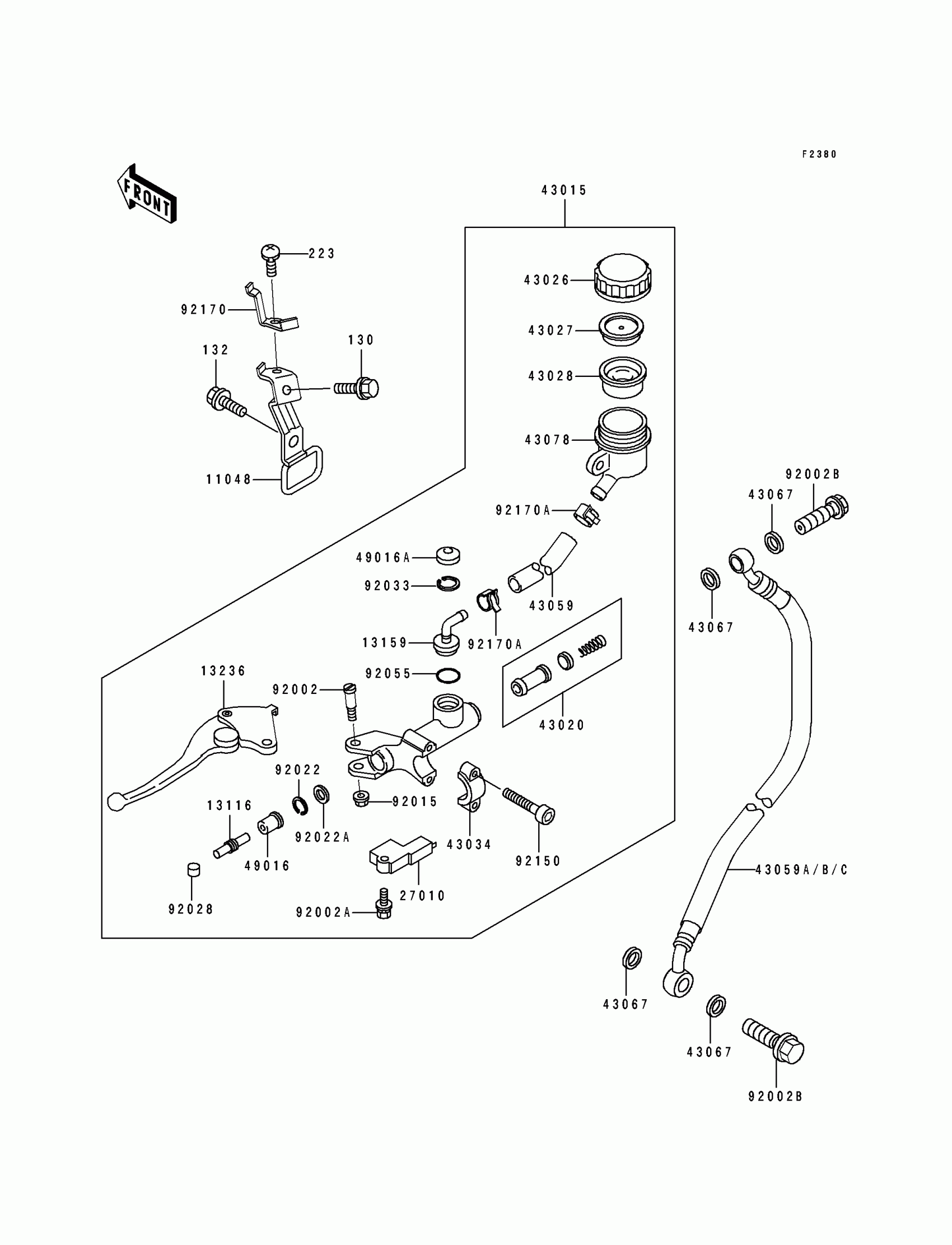

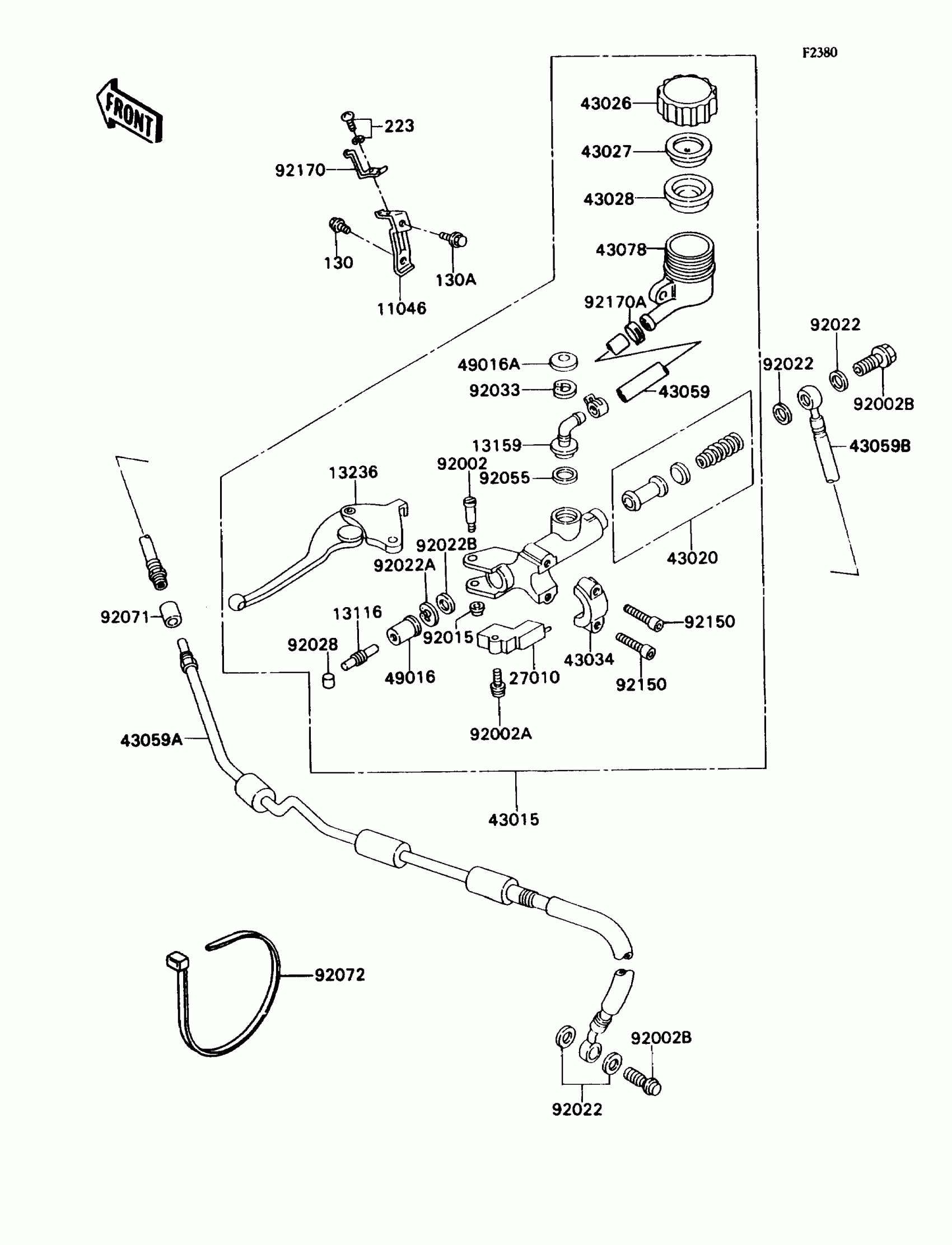

Kawasaki Ninja® ZX™-7 Clutch Master Cylinder Diagram

#

Description
Price

11046

BRACKET,RESERVOIR TANK

11046-1756

$10.34

13116

ROD-PUSH,MASTER CYLINDER

13116-1110

$33.39

13159

CONNECTOR

13159-1061

$9.85

13236

LEVER-COMP,CLUTCH

13236-1186

$49.18

27010

SWITCH,CLUTCH

27010-1171

$32.18

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-1394

$472.39

43020

PISTON-COMP-BRAKE,CLUTCH

43020-1055

$58.51

43026

CAP-BRAKE

43026-1070

$34.54

43027

PLATE-DIAPHRAGM

43027-1054

$4.28

43028

DIAPHRAGM

43028-1073

$18.17

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$14.67

43059

HOSE-BRAKE,M/CYLINDER

43059-1548

$17.85

43059A

HOSE-BRAKE,CLUTCH

43059-1554

$139.06

43059B

HOSE-BRAKE,CLUTCH

43059-1661

$92.93

43078

RESERVOIR

43078-1102

$25.03

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

49016A

COVER-SEAL

49016-1147

$4.72

92002

BOLT,LEVER SET,BLACK

92002-1322

$8.91

92002A

SCREW,4X16

92002-1325

$7.83

92002B

BOLT,OIL,L=23

92002-1888

$4.15

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92022

WASHER,10.5X15X1.5

43067-001

$1.57

92022A

CIRCLIP

92022-1605

$3.81

92022B

WASHER,PISTON

92022-1606

$3.57

92028

BUSHING,MASTER CYLINDER

92028-1310

$11.20

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92071

GROMMET

92071-1143

$5.66

92072

BAND,L=202

92072-1195

$1.16

92150

BOLT

92150-1328

$4.59

92170

CLAMP

92170-1087

$7.32

92170A

CLAMP,HOSE

92170-1091

$3.81

130

BOLT-FLANGED

130H0608

Unavailable

130A

BOLT-FLANGED,6X14

130H0614

Unavailable

223

SCREW-PAN-WS-CROS,4X8

223D0408

$1.00
