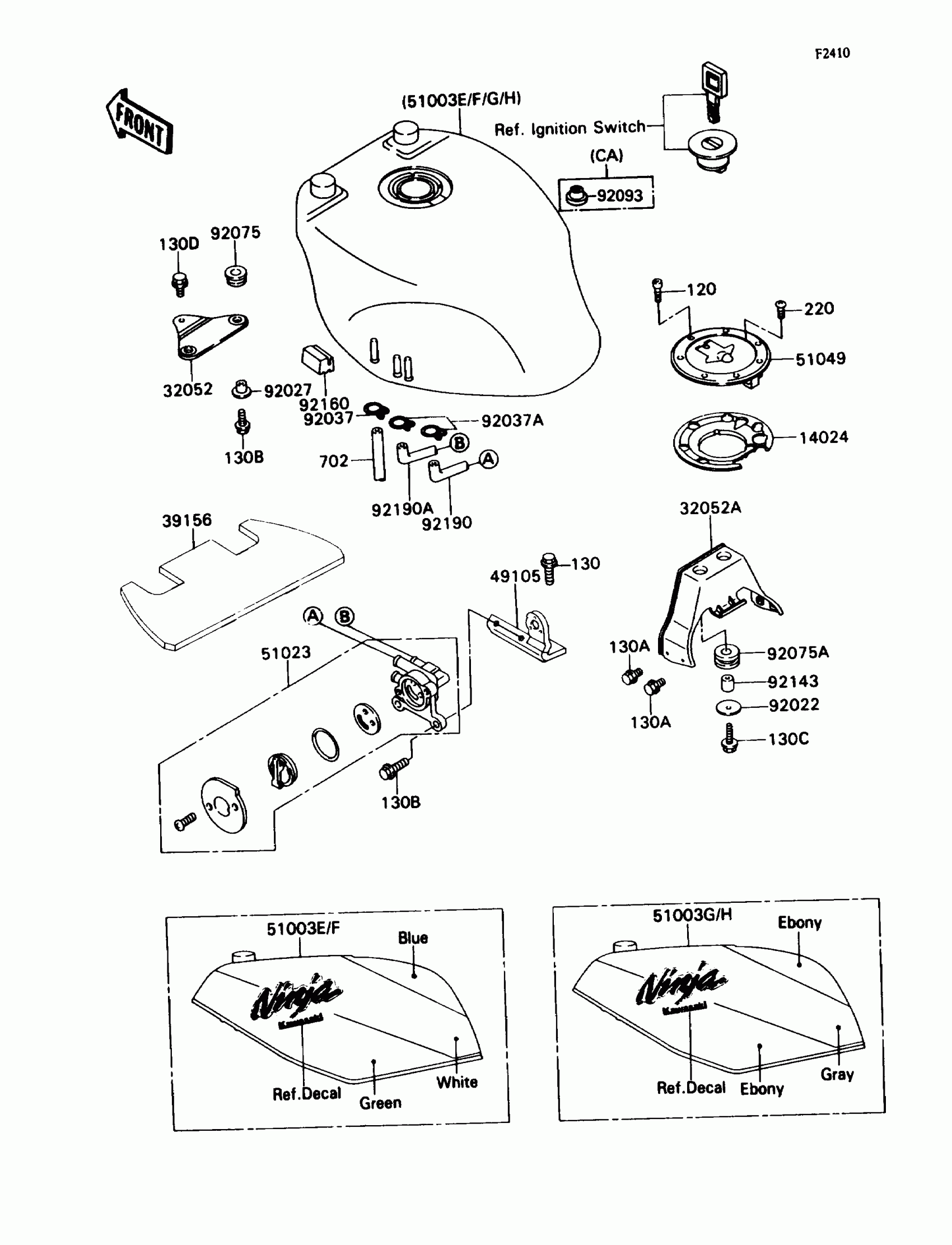

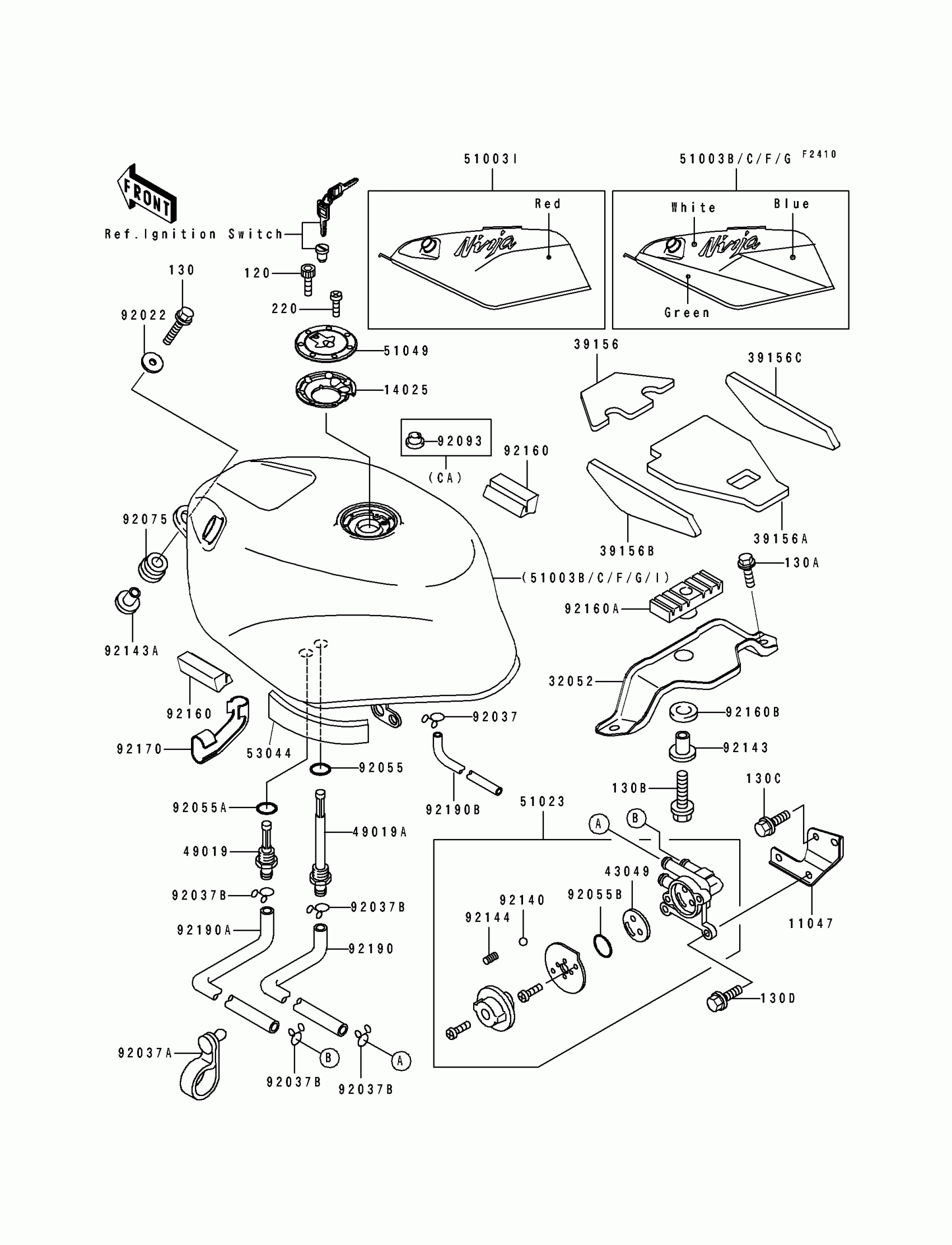

Kawasaki Ninja® ZX™-7 Fuel Tank Diagram

#

Description
Price

14024

COVER,TANK CAP

14025-1913

$17.42

32052

BRACKET-TANK,FR

32052-1280

$23.98

32052A

BRACKET-TANK,RR

32052-1309

$43.21

39156

PAD,FUEL TANK

39156-1143

Unavailable

49105

BRACKET-TAP

49105-1053

$19.25

51003E

TANK-COMP-FUEL,GREEN/BLUE/WHIT

51003-5059-DZ

$964.12

51003F

TANK-COMP-FUEL,GREEN/BLUE/WHIT

51003-5060-DZ

$834.61

51003G

TANK-COMP-FUEL,EBONY/GRAY

51003-5061-T4

$1,362.08

51003H

TANK-COMP-FUEL,EBONY/GRAY

51003-5062-T4

$834.61

51023

TAP-ASSY,FUEL

51023-1163

Unavailable

51049

CAP-TANK,FUEL

51049-1091

$117.85

92022

WASHER,7X28X1.6

92022-1282

$3.57

92027

COLLAR,L=13.1

92027-251

Unavailable

92037

CLAMP,TUBE

92037-010

$2.99

92037A

CLAMP,TUBE

92037-1972

$3.29

92075

DAMPER RUBBER

92075-112

$3.43

92075A

DAMPER

92075-1736

$4.93

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92143

COLLAR,6.5X12X16.5

92143-1299

$4.63

92160

DAMPER

92160-1128

Unavailable

92190

TUBE,"ON"

92059-1995

Unavailable

92190A

TUBE,"RES"

92059-1996

Unavailable

120

BOLT-SOCKET,5X12

120S0512

Unavailable

130

BOLT-FLANGED,6X10

130H0610

Unavailable

130A

BOLT-FLANGED,6X14

130H0614

Unavailable

130B

BOLT-FLANGED

130H0620

Unavailable

130C

BOLT-FLANGED,6X25

130H0625

Unavailable

130D

BOLT-FLANGED,6X30,BLACK

130J0630

Unavailable

220

SCREW-PAN-CROSS

220C0508

Unavailable

702

TUBE-RUBBER,7X10X800

702A07800

$10.11
