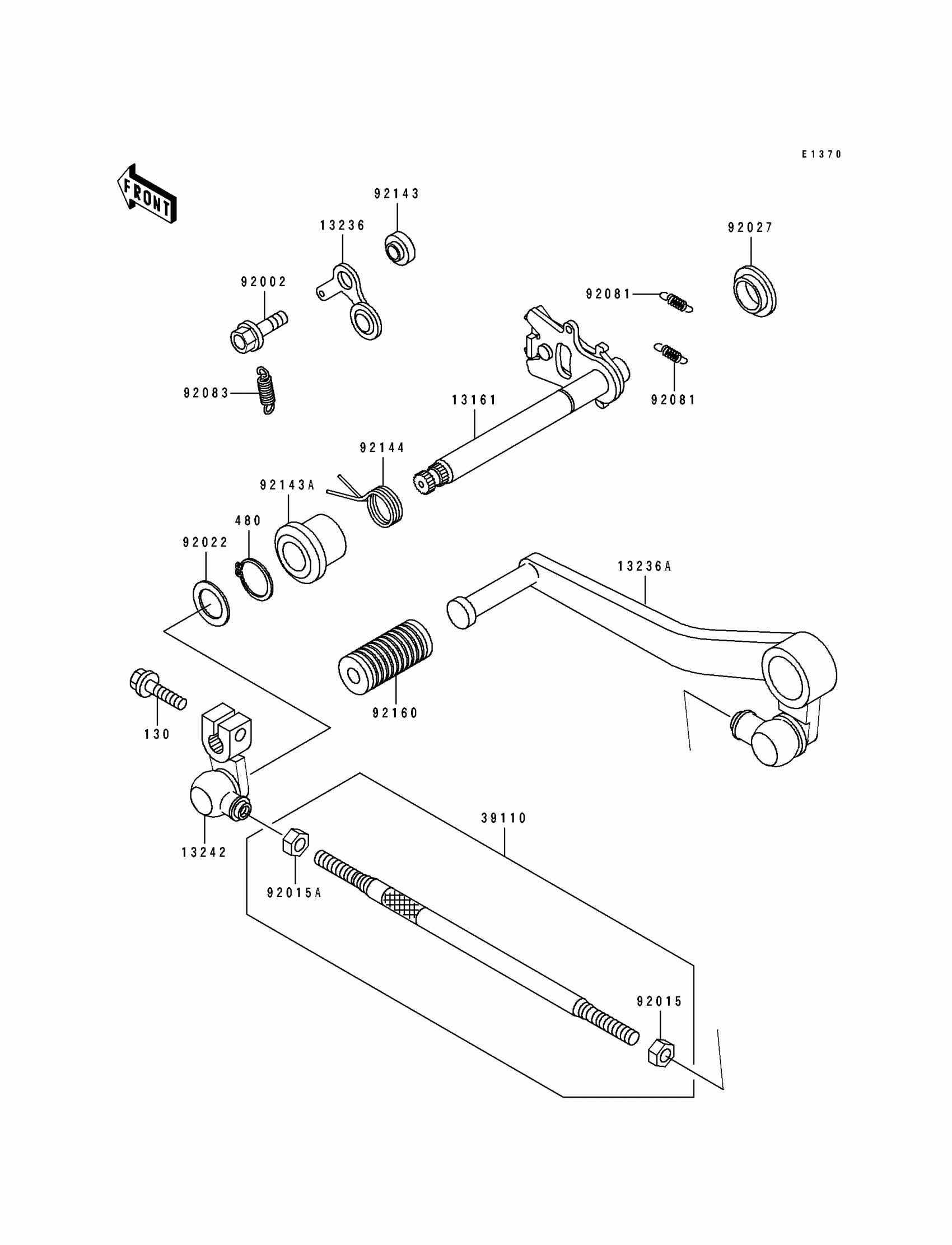

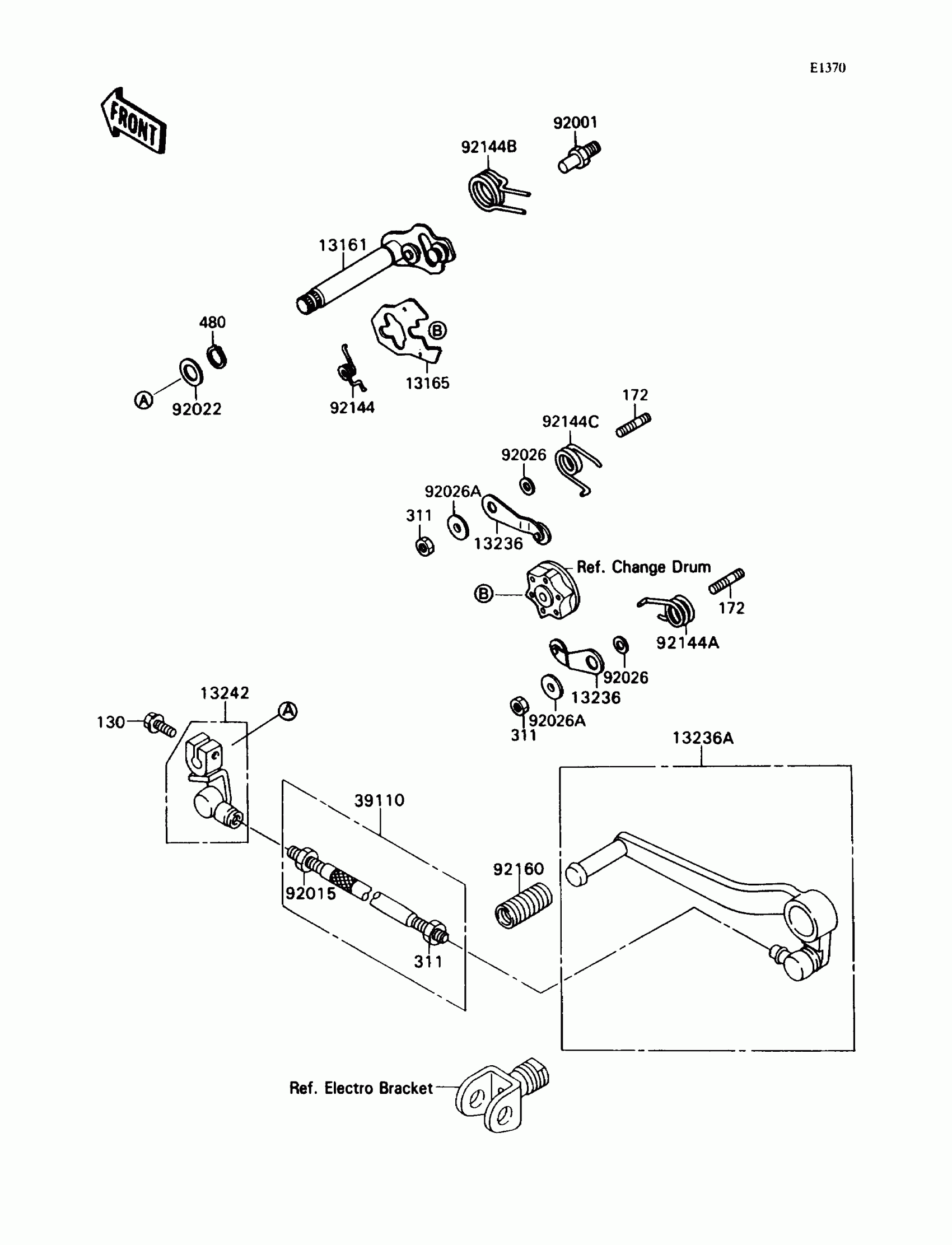

Kawasaki Ninja® ZX™-7 Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-1168

Unavailable

13165

PAWL

13165-1120

$13.39

13236

LEVER-COMP,POSITION

13236-1149

Unavailable

13236A

LEVER-COMP,CHANGE PEDAL

13236-1204

$66.46

13242

LEVER-ASSY-CHANGE,LINK

13242-1278

$53.33

39110

ROD-ASSY-TIE

39110-1089

$16.07

92001

BOLT,RETURN SPRING

92001-1455

$4.17

92015

NUT,LEFT HANDED,6MM

92015-1125

$3.85

92022

WASHER,13.3X20X1

92022-1496

$2.99

92026

SPACER,6.3X12X1.0

92026-094

$8.92

92026A

SPACER

92026-1217

$4.18

92144

SPRING

92144-1029

$5.93

92144A

SPRING,NEUTRAL POSITION

92144-1030

Unavailable

92144B

SPRING,CHANGE PEDAL RETURN

92144-1074

$7.18

92144C

SPRING,GEAR POSITION

92144-1429

$4.76

92160

DAMPER,CHANGE PEDAL

92160-1036

$3.85

130

BOLT-FLANGED,6X20

130S0620

Unavailable

172

BOLT-STUD,6X12

172G0612

Unavailable

311

NUT-HEX,6MM

311G0600

Unavailable

480

CIRCLIP-TYPE-C,13MM

480J1300

$2.99
