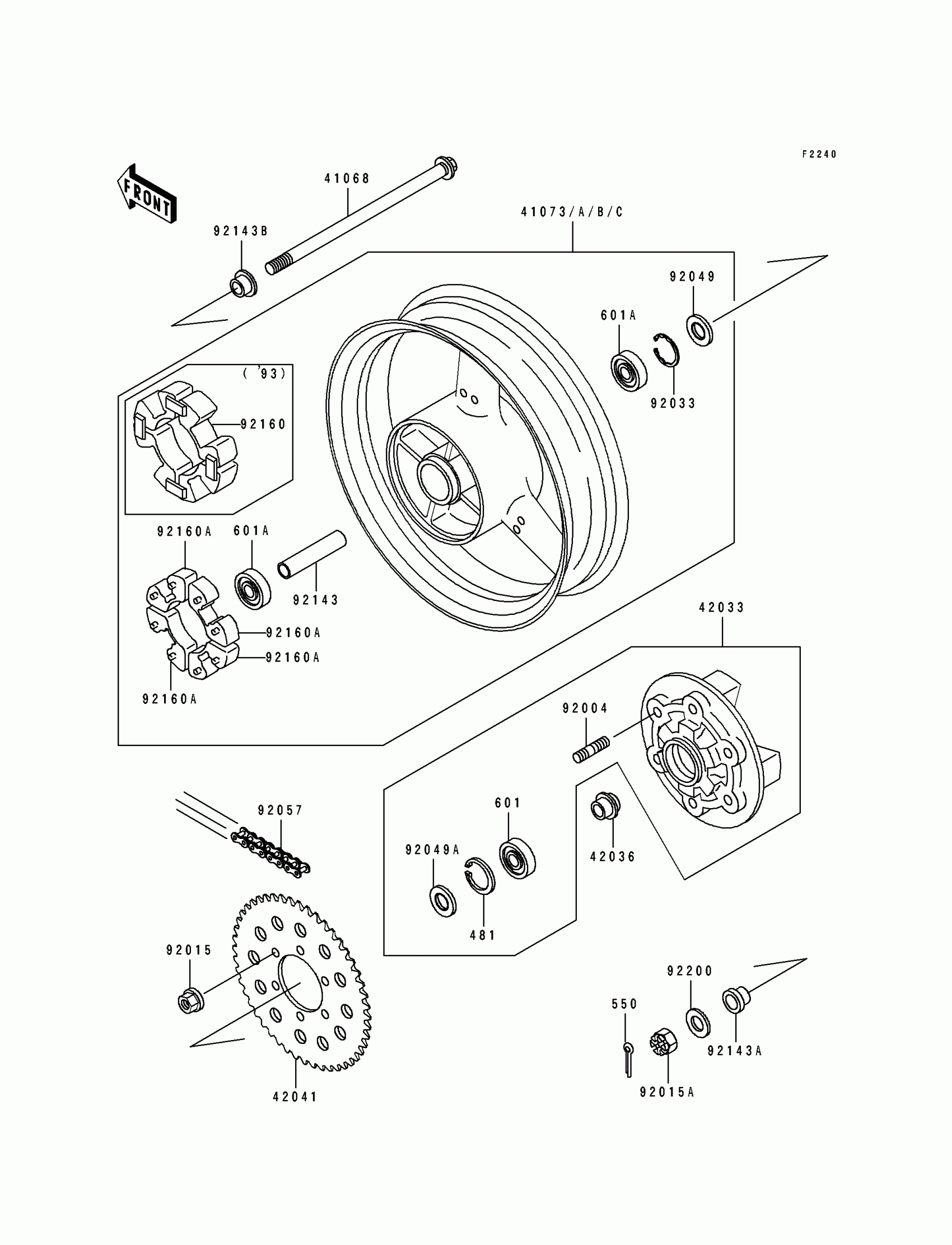

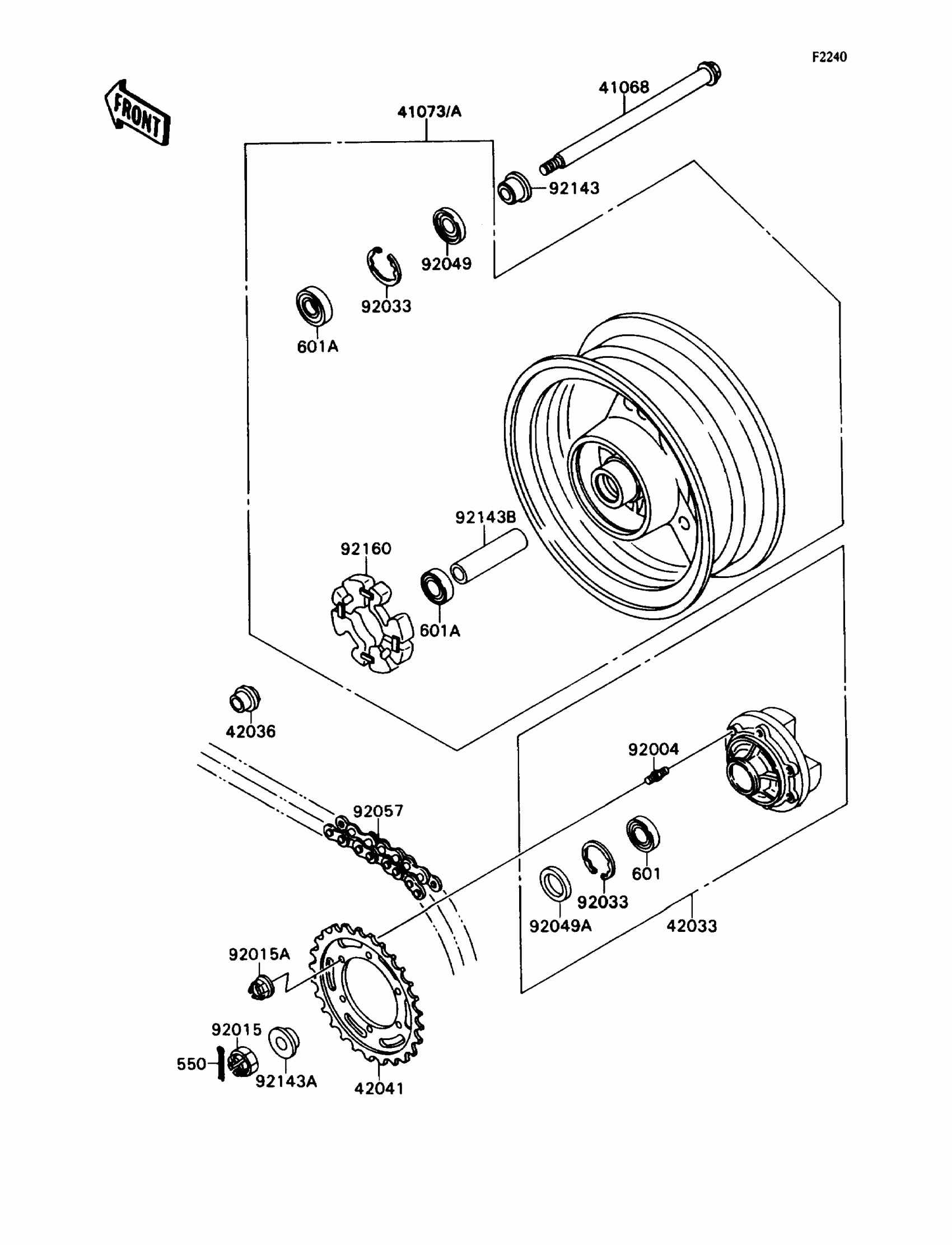

Kawasaki Ninja® ZX™-7 Rear Wheel/Chain Diagram

Description

Price

41068

AXLE,RR

41068-1279

$123.53

41073

WHEEL-ASSY,RR,L.GREEN

41073-1415-CJ

$1,185.31

41073A

WHEEL-ASSY,RR,P.C.GRAY

41073-1415-DH

$697.21

42033

COUPLING-ASSY,RR HUB

42033-1128

$318.73

42036

SLEEVE,RR HUB,L=23

42036-1251

$21.23

42041

SPROCKET-HUB,46T

42041-1324

$123.33

92004

STUD,10X19

92004-1151

$6.80

92015

NUT,CASTLE,18MM

42045-018

$7.01

92015A

NUT,10MM

92015-1720

$3.98

92033

RING-SNAP,52MM

92033-1043

$6.15

92049

SEAL-OIL,28X52X5

92049-1061

$16.11

92049A

SEAL-OIL,TWC35527

92052-006

Unavailable

92057

CHAIN,DRIVE,EK50MV-OX112L

92057-1284

$395.63

92143

COLLAR,L=23

92143-1042

$38.46

92143A

COLLAR,RR AXLE,L=16

92143-1302

$42.62

92143B

COLLAR,RR HUB,L=133

92143-1303

$38.93

92160

DAMPER,SHOCK,RR HUB

92160-1043

Unavailable

550

PIN-COTTER,4.0X35

550D4035

$1.57

601

BEARING-BALL,#6205G

601B6205G

Unavailable

601A

BEARING-BALL

601B6304UG

$30.87
