2005 Kawasaki Ninja® ZX™-6RR Side Covers Diagram

← All diagrams

Find the part on the Side Covers diagram for your 2005 Kawasaki Ninja® ZX™-6RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

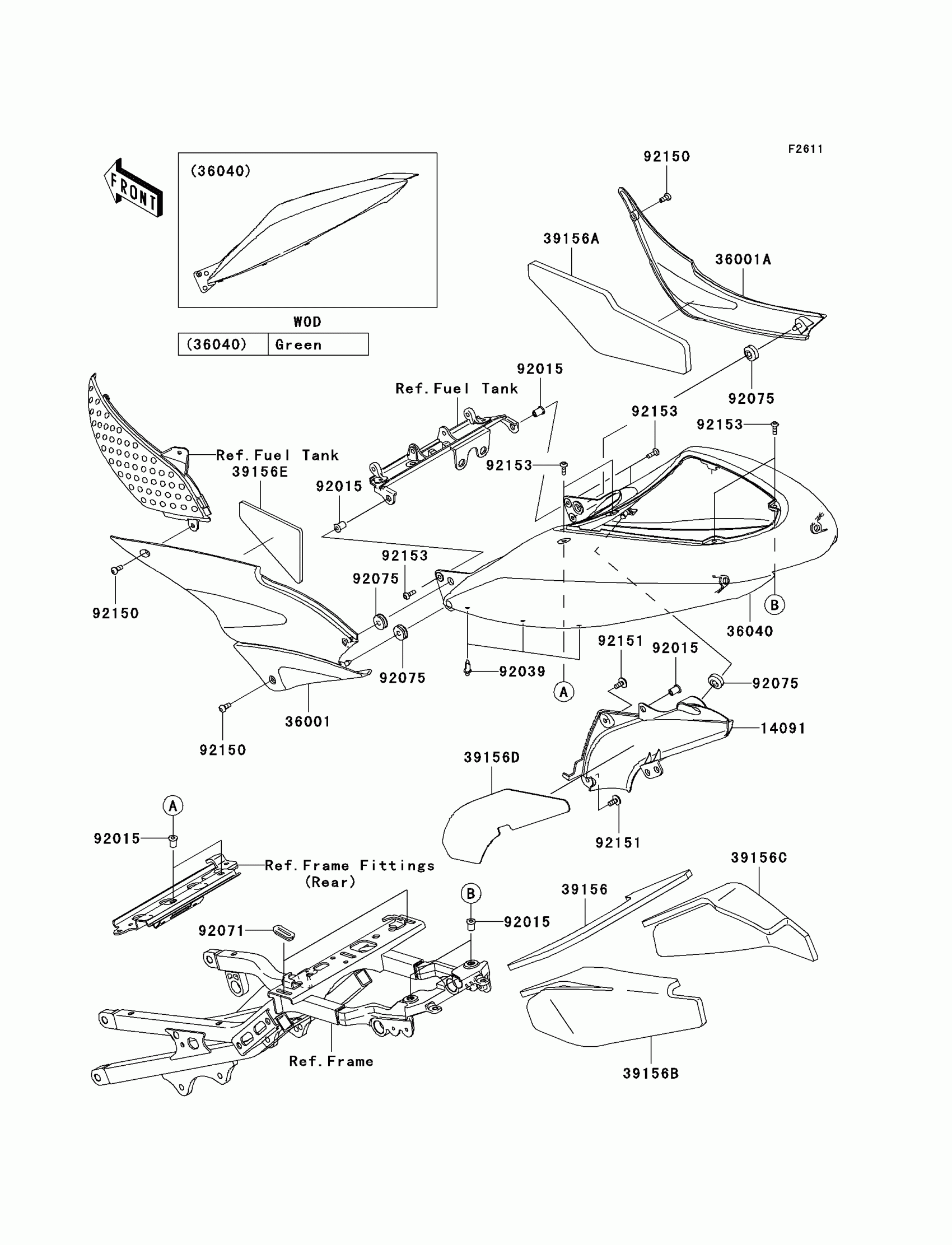

2005 Kawasaki Ninja® ZX™-6RR Side Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,JOINT PIPE

14091-0293

1
Out of stock

36001

COVER-SIDE,LH

36001-0042

1
Out of stock

36001A

COVER-SIDE,RH

36001-0043

1
Out of stock

36040

COVER-TAIL,L.GREEN

36040-0016-777

1
Out of stock

39156

PAD,TAIL COVER,RR

39156-0074

1
Out of stock

39156A

PAD,SIDE COVER,RH

39156-0085

1
Out of stock

39156B

PAD,TAIL COVER,LH

39156-0086

1
Out of stock

39156C

PAD,TAIL COVER,RH

39156-0087

1
Out of stock

39156D

PAD,JOINT PIPE COVER

39156-0088

1
Out of stock

39156E

PAD,SIDE COVER,LH

39156-0091

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92039

RIVET

92039-0015

1
Out of stock

92071

GROMMET

92071-1187

1
Out of stock

92075

DAMPER

92075-1067

1
Out of stock

92150

BOLT,SOCKET,6X14

92150-1836

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92153

BOLT,SOCKET,5X16

92153-1244

1
Out of stock
