2003 Kawasaki Ninja® ZX™-6RR Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2003 Kawasaki Ninja® ZX™-6RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

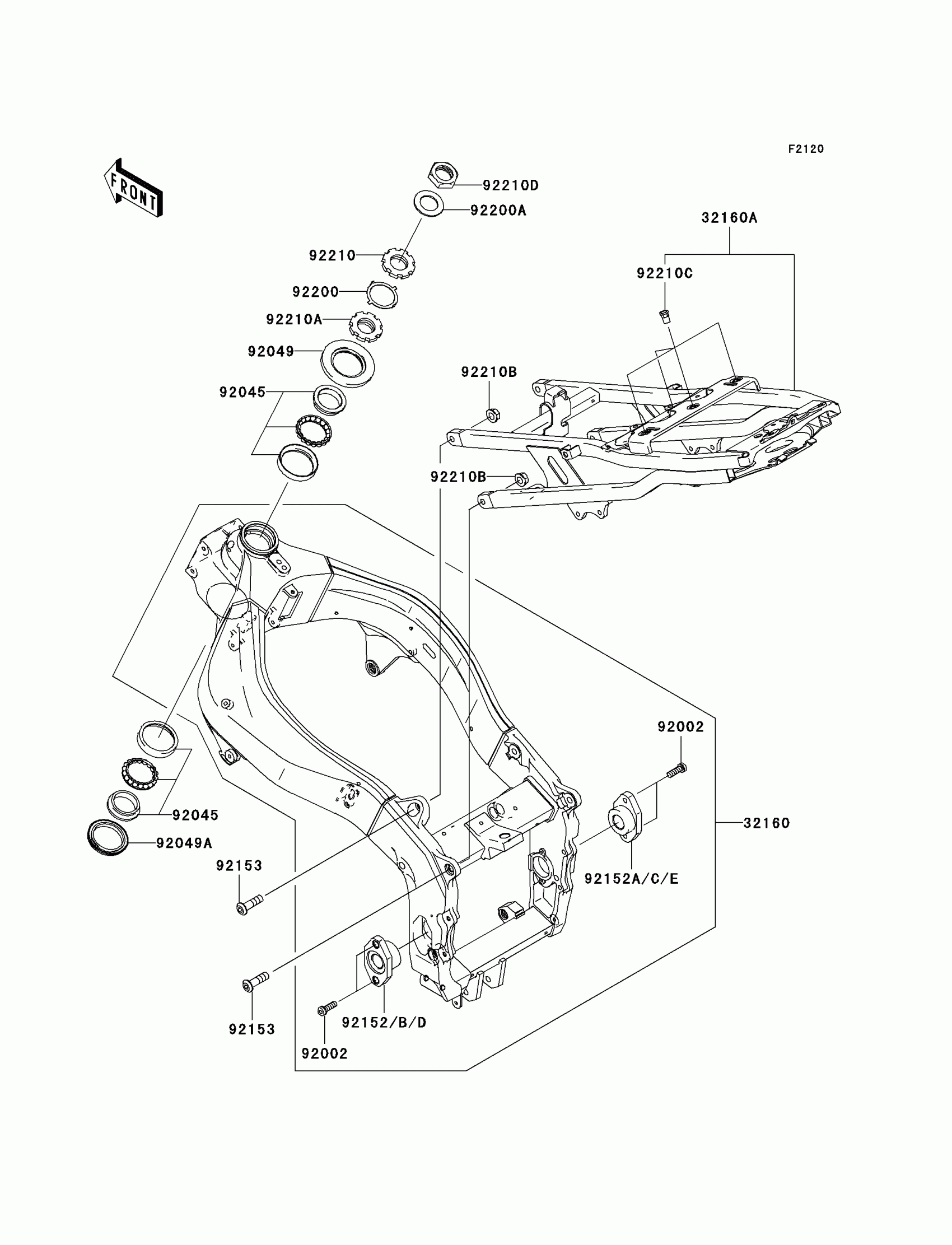

2003 Kawasaki Ninja® ZX™-6RR Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

FRAME-COMP,AL,FR,P.SILVER

32160-1817-458

1

$2,138.68

In stock

32160A

FRAME-COMP,AL,RR,P.SILVER

32160-1819-458

1

$1,133.40

In stock

92002

BOLT,6X20

92002-1418

1

$3.90

In stock

92045

1

$41.48

In stock

92049

SEAL-OIL,XMH 43 75 6.4J

92049-1382

1
Out of stock

92049A

SEAL-OIL,XMHE 43 55 4J

92049-1383

1
Out of stock

92152

1

$37.92

In stock

92152A

1

$37.92

In stock

92152B

1

$45.58

In stock

92152C

1

$45.58

In stock

92152D

1

$45.58

In stock

92152E

1

$45.58

In stock

92153

BOLT,SOCKET,10X35

92153-1164

1
Out of stock

92200

WASHER

92200-0036

1
Out of stock

92200A

WASHER,25.5X42X2.3

92200-1084

1
Out of stock

92210

NUT,STEERING STEM 35MM

92210-0062

1
Out of stock

92210A

NUT,STEERING STEM,35MM

92210-0077

1
Out of stock

92210B

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock

92210C

NUT,POP,6MM,L=15

92210-1397

1
Out of stock

92210D

NUT,25MM

92210-1412

1
Out of stock
