2003 Kawasaki Ninja® ZX™-6RR Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2003 Kawasaki Ninja® ZX™-6RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

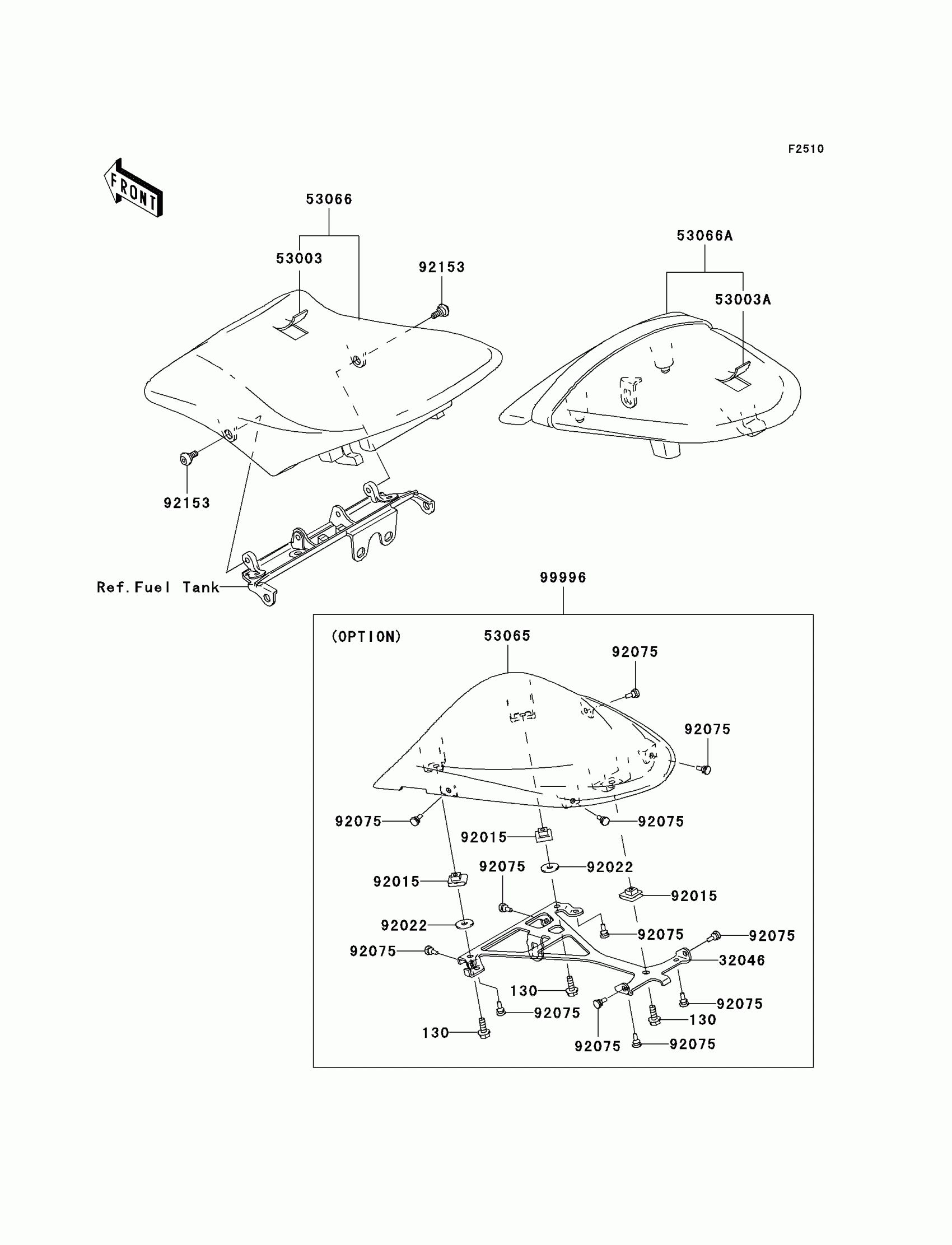

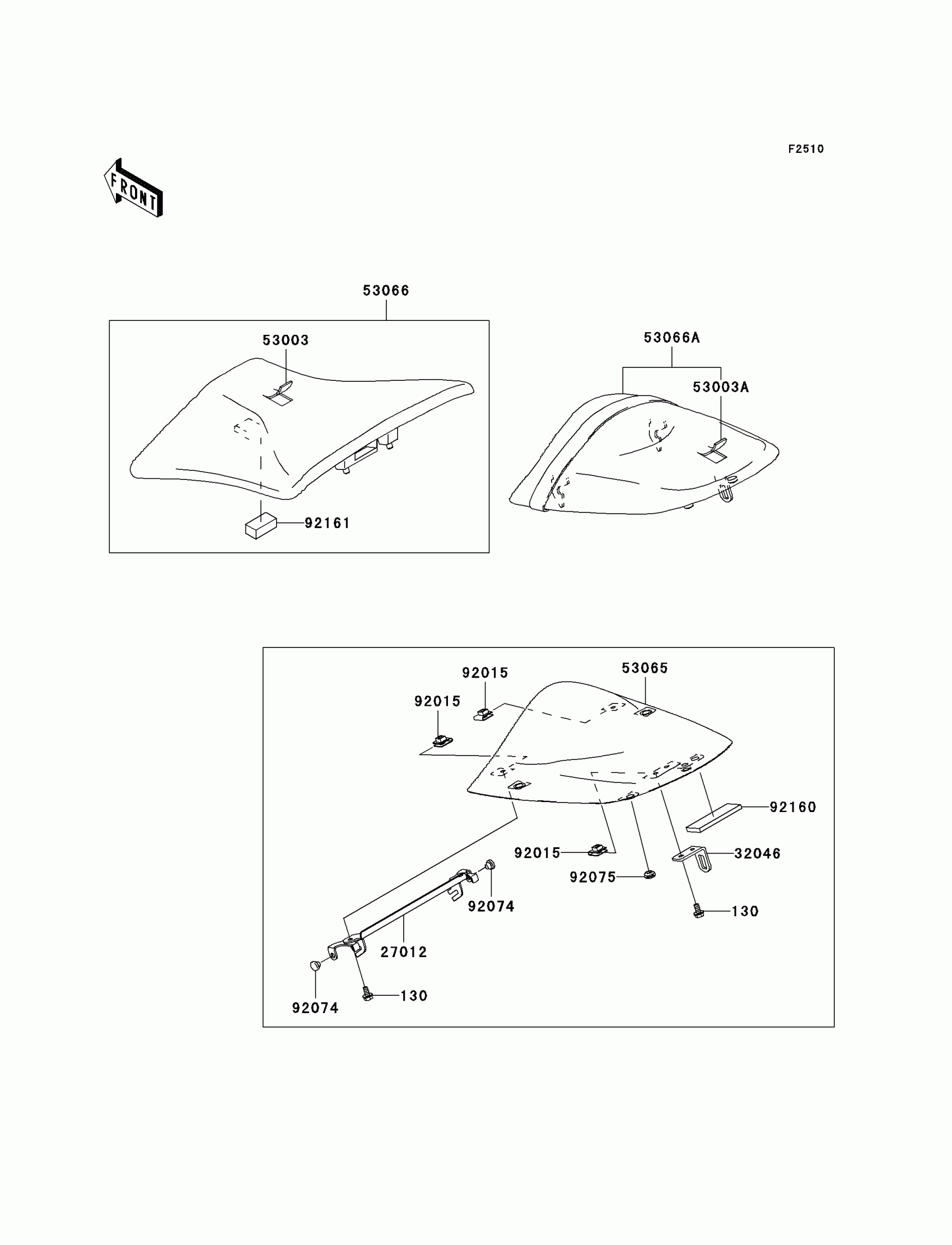

2003 Kawasaki Ninja® ZX™-6RR Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

27012

HOOK,SEAT COVER

27012-0013

1
Out of stock

32046

BRACKET-SEAT

32046-1468

1
Out of stock

53003

LEATHER,FRONT SEAT,BLACK

53003-1527-MA

1
Out of stock

53003A

LEATHER,REAR SEAT,BLACK

53003-1530-MA

1
Out of stock

53065

COVER SEAT,L.GREEN

53065-1054-7F

1
Out of stock

53066

SEAT-ASSY,FR,BLACK

53066-1073-MA

1
Out of stock

53066A

SEAT-ASSY,RR,W/BAND,BLACK

53066-1074-MA

1
Out of stock

92015

NUT,CLAMP,6MM

92015-1531

1
Out of stock

92074

PLUG,7X2

92074-028

1
Out of stock

92075

DAMPER,6X16X7

92075-1011

1
Out of stock

92160

DAMPER

92160-1323

1
Out of stock

92161

DAMPER,SEAT

92161-1321

1
Out of stock
