2003 Kawasaki Ninja® ZX™-6RR Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2003 Kawasaki Ninja® ZX™-6RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

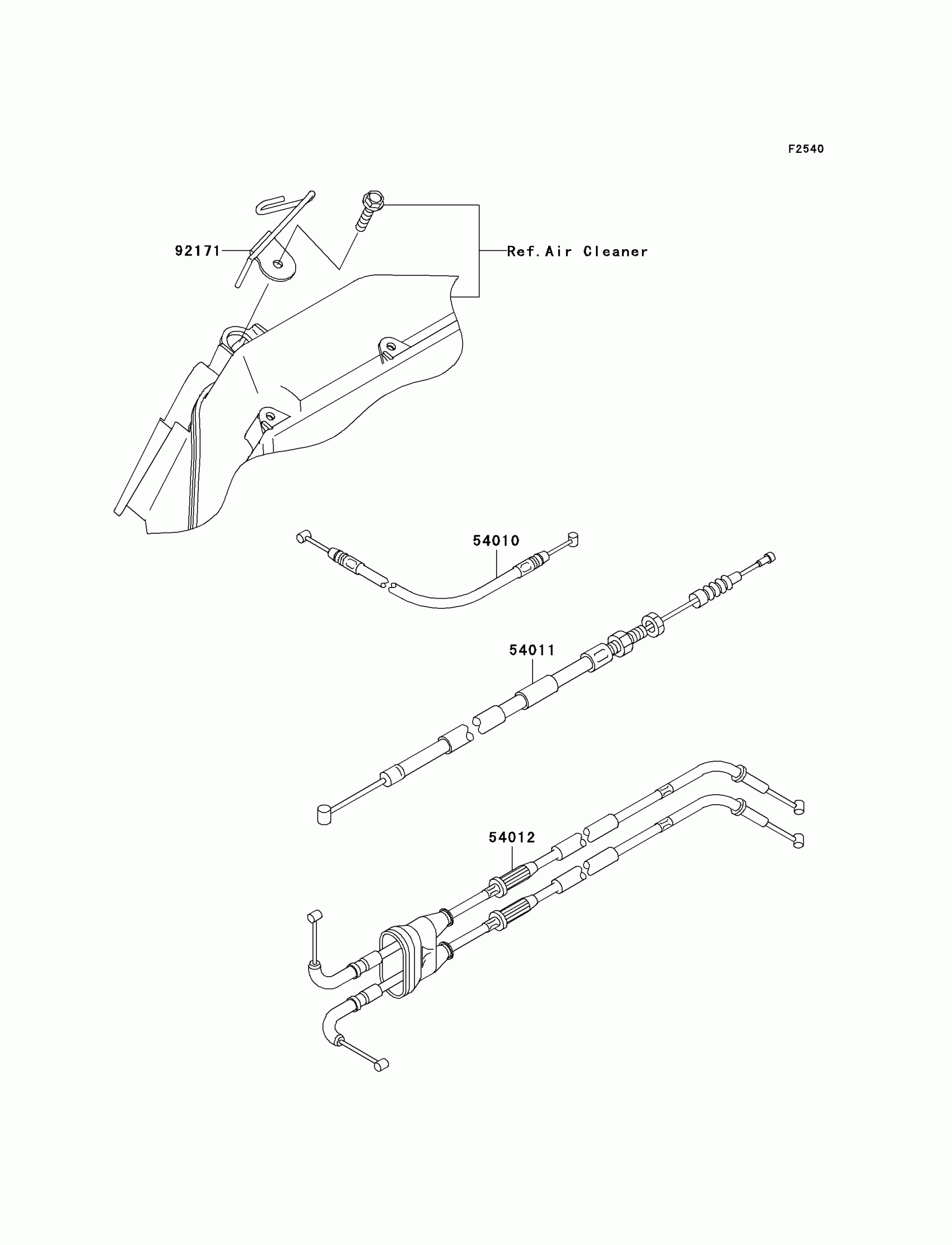

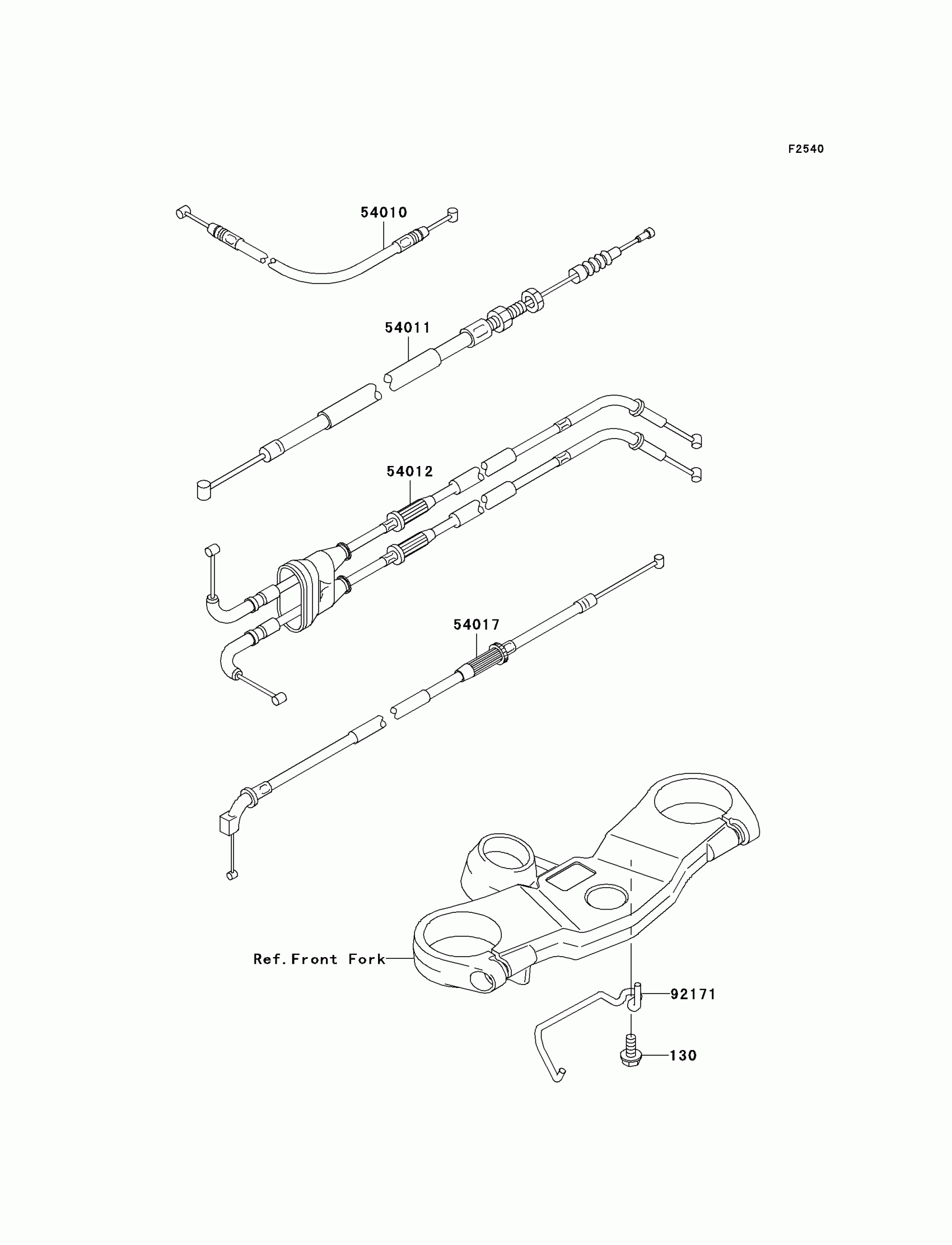

2003 Kawasaki Ninja® ZX™-6RR Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

54010

CABLE,SEAT LOCK

54010-1132

1

$19.53

In stock

54011

CABLE-CLUTCH

54011-1423

1

$31.95

In stock

54012

CABLE-THROTTLE

54012-1666

1
Out of stock

54017

CABLE-STARTER

54017-1224

1

$40.92

In stock

92171

CLAMP,CABLE

92171-0038

1
Out of stock
