2003 Kawasaki Ninja® ZX™-6RR Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2003 Kawasaki Ninja® ZX™-6RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

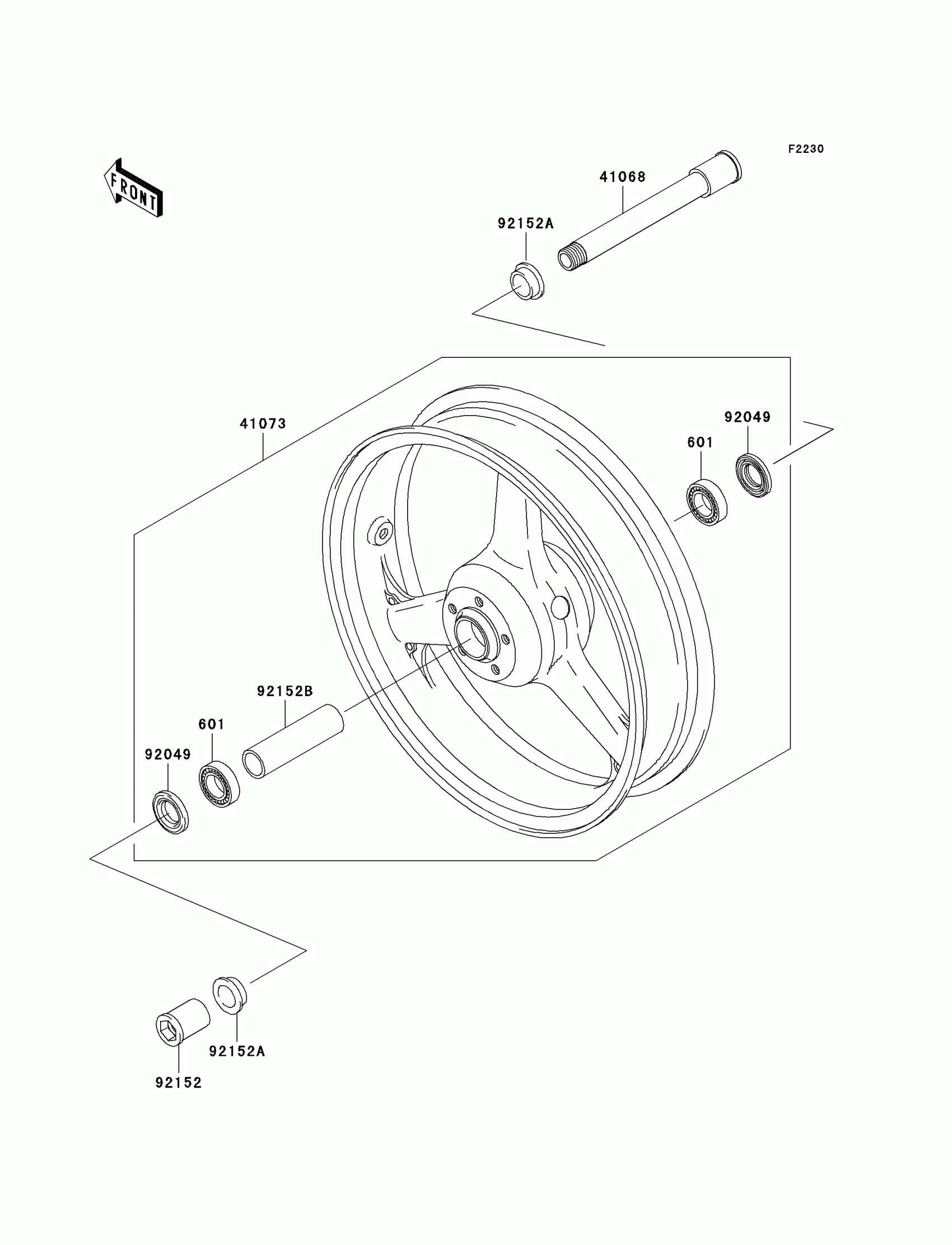

2003 Kawasaki Ninja® ZX™-6RR Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

601

BEARING-BALL,#6005UU

601B6005UU

1
Out of stock

41068

AXLE,FR

41068-1426

1
Out of stock

41073

WHEEL-ASSY,FR,BLACK

41073-1689-R2

1
Out of stock

92049

SEAL-OIL,BJN 32 47 5

92049-1377

1
Out of stock

92152

COLLAR,NUT,24MM

92152-1464

1
Out of stock

92152A

COLLAR,FR AXLE,L=13

92152-1470

1
Out of stock

92152B

COLLAR,FR HUB,L=115

92152-1471

1
Out of stock
