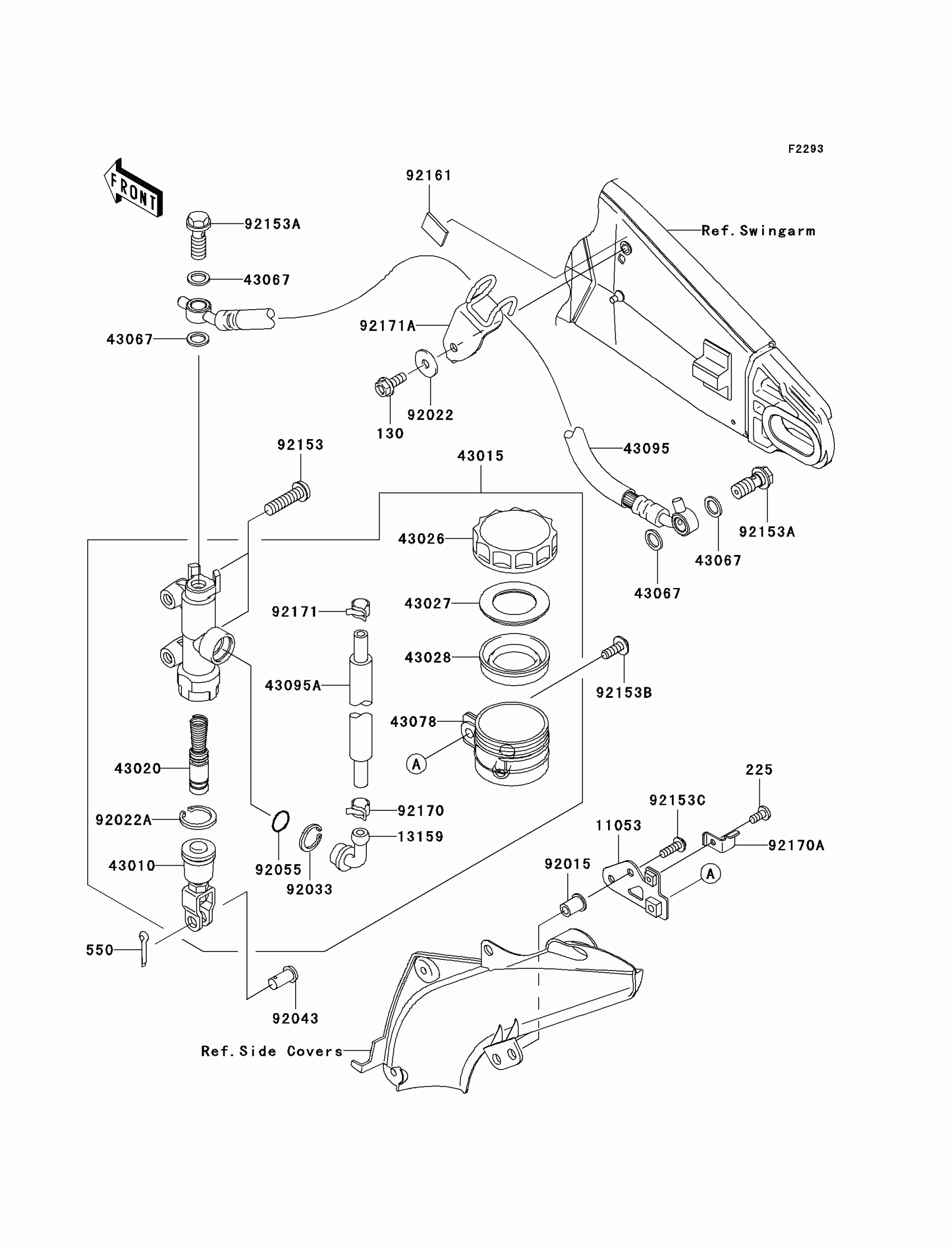

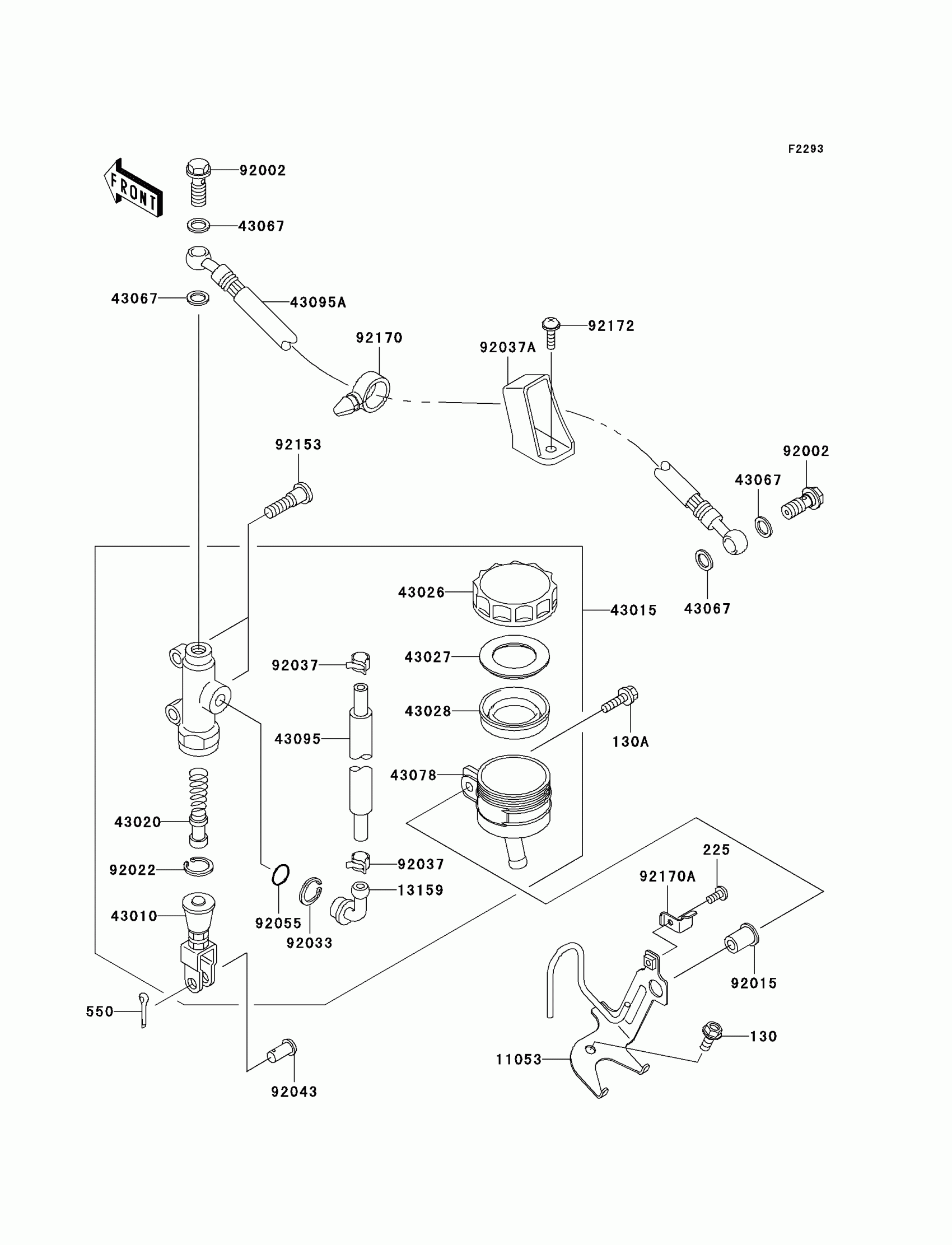

Kawasaki Ninja® ZX™-6RR Rear Master Cylinder Diagram

#

Description
Price

130

BOLT-FLANGED,6X14

130L0614

Unavailable

130A

BOLT-FLANGED,6X20

130V0620

Unavailable

225

SCREW-PAN-WSP-CROS,4X12

225F0412

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

11053

BRACKET,RESERVOIR TANK

11053-0292

$10.59

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$13.39

43010

ROD-ASSY-BRAKE

43010-0002

$83.77

43015

CYLINDER-ASSY-MASTER,RR

43015-0005

$486.16

43020

PISTON-COMP-BRAKE

43020-1120

$76.18

43026

CAP-BRAKE

43026-1051

$30.63

43027

PLATE-DIAPHRAGM

43027-1051

$4.04

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$14.40

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43078

RESERVOIR,RR MASTER CYLINDER

43078-1082

$28.80

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-1121

$38.77

43095A

HOSE-BRAKE,RR

43095-1285

Unavailable

92002

BOLT,OIL,L=23

92002-1888

$4.15

92015

NUT

92015-1700

$6.55

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP,BRAKE HOSE

92037-1547

$11.81

92037A

CLAMP,HOSE

92037-1896

$22.64

92043

PIN,8MM

92043-1303

$2.98

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92153

BOLT,SOCKET,8X32

92153-0403

$8.71

92170

CLAMP

92170-1067

$5.69

92170A

CLAMP,RESERVOIR TANK CAP

92170-1879

$4.80

92172

SCREW,6X14

92172-0004

$1.98
