2003 Kawasaki Ninja® ZX™-6RR Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2003 Kawasaki Ninja® ZX™-6RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

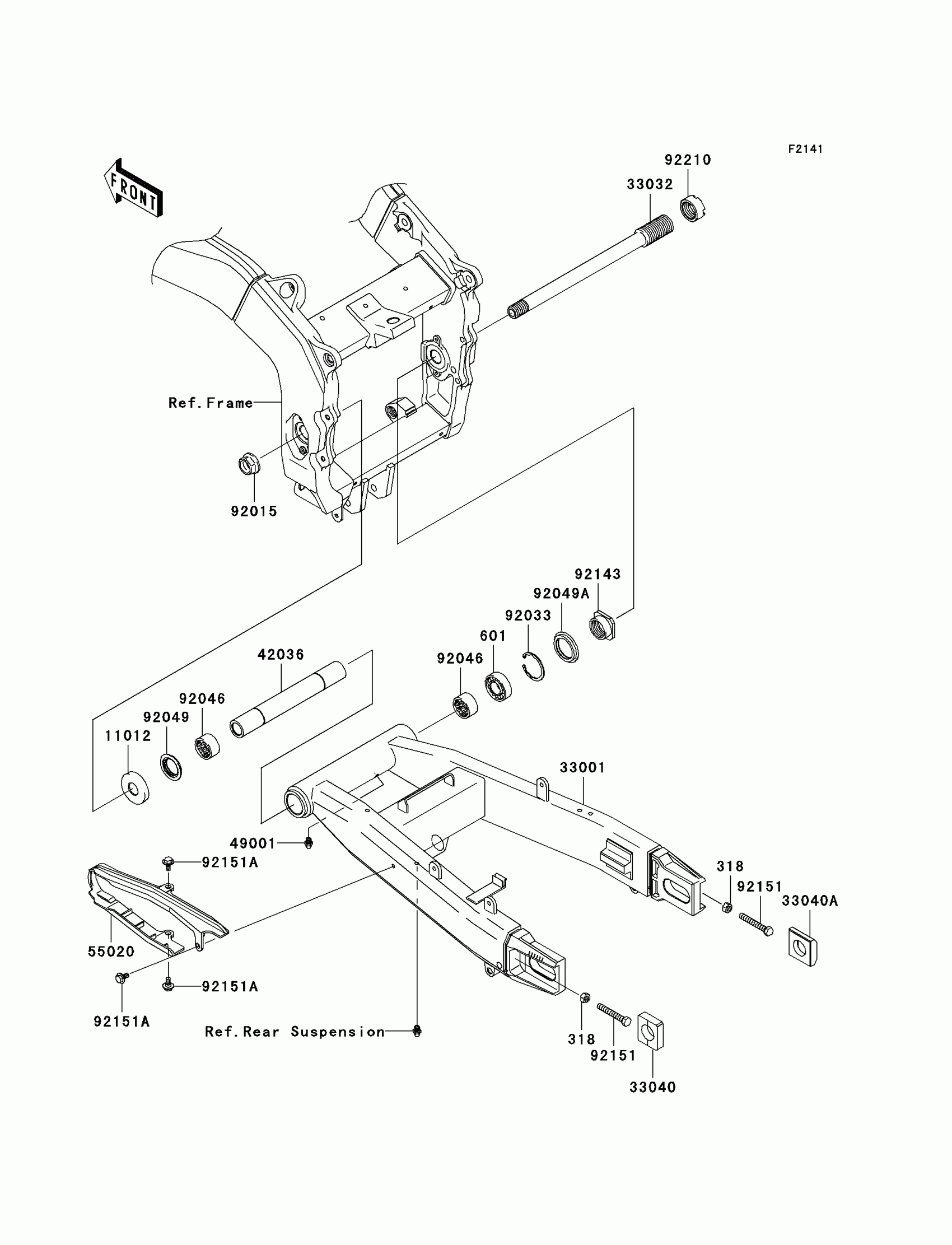

2003 Kawasaki Ninja® ZX™-6RR Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

318

NUT-HEX-SMALL,8MM

318G0800

1
Out of stock

601

1

$9.42

In stock

11012

CAP

11012-1658

1
Out of stock

33001

ARM-COMP-SWING,P.SILVER

33001-1636-458

1
Out of stock

33032

SHAFT-SWING ARM

33032-0003

1

$103.08

In stock

33040

ADJUSTER-CHAIN,RH

33040-1114

1

$15.15

In stock

33040A

ADJUSTER-CHAIN,RH

33040-1180

1
Out of stock

42036

1

$95.06

In stock

49001

NIPPLE-GREASE

49001-0001

1

$2.44

In stock

55020

GUARD,CHAIN

55020-1806

1
Out of stock

92015

NUT,FLANGED,20MM

92015-1724

1

$14.14

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92046

BEARING-NEEDLE,BM2817

92046-1111

1
Out of stock

92049

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock

92049A

SEAL-OIL,MHA 35 42 5.7F

92049-1380

1
Out of stock

92143

1

$35.97

In stock

92151

BOLT,8X55

92151-1578

1
Out of stock

92151A

BOLT,FLANGED,6X13

92151-1703

1

$3.14

In stock

92210

NUT,28X1.0

92210-1347

1
Out of stock
