2003 Kawasaki Ninja® ZX™-6RR Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2003 Kawasaki Ninja® ZX™-6RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

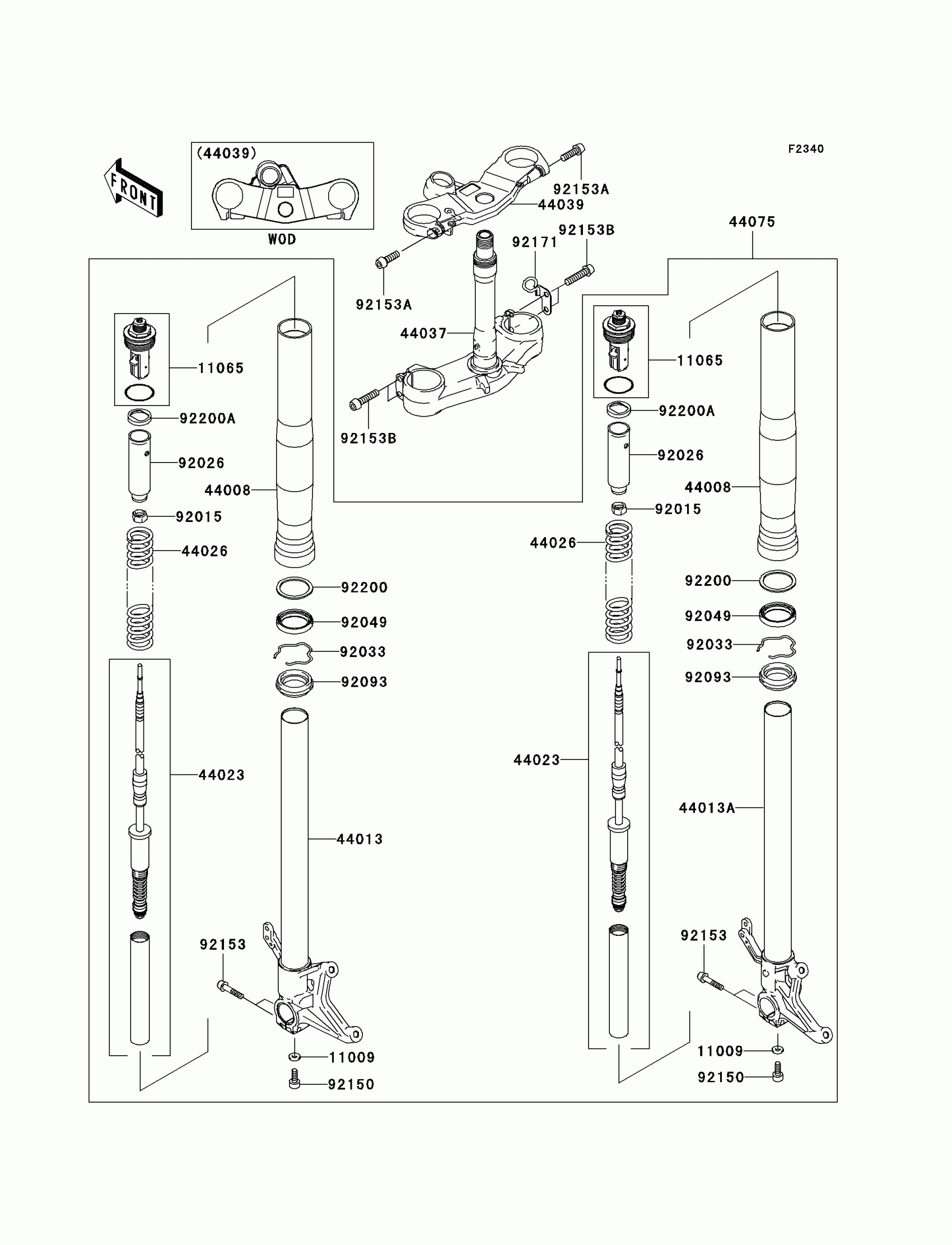

2003 Kawasaki Ninja® ZX™-6RR Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$4.12

In stock

11065

CAP

11065-0003

1

$189.14

In stock

44008

PIPE-FORK OUTER

44008-0001

1

$1,189.33

In stock

44013

PIPE-FORK INNER,LH

44013-1510

1

$739.53

In stock

44013A

PIPE-FORK INNER,RH

44013-1511

1

$739.53

In stock

44023

CYLINDER-SET-FORK

44023-0001

1

$529.27

In stock

44026

SPRING-FRONT FORK

44026-0001

1

$84.42

In stock

44037

HOLDER-FORK UNDER

44037-1442

1

$883.62

In stock

44039

HOLDER-FORK UPPER

44039-1332

1

$342.56

In stock

44075

DAMPER-SET-FORK

44075-1182

1

$2,758.81

In stock

92015

NUT

92015-1795

1

$4.85

In stock

92026

SPACER,FORK

92026-0045

1
Out of stock

92033

RING-SNAP

92033-1036

1

$5.15

In stock

92049

SEAL-OIL

92049-0001

1
Out of stock

92093

1

$22.03

In stock

92150

BOLT,12X22

92150-1398

1

$8.95

In stock

92153

BOLT,SOCKET,8X40

92153-0006

1
Out of stock

92153A

BOLT,SOCKET,8X25

92153-0007

1
Out of stock

92153B

BOLT,SOCKET,8X35

92153-1228

1
Out of stock

92171

CLAMP

92171-0028

1

$10.22

In stock

92200

WASHER

92200-0001

1
Out of stock

92200A

WASHER

92200-0085

1
Out of stock
