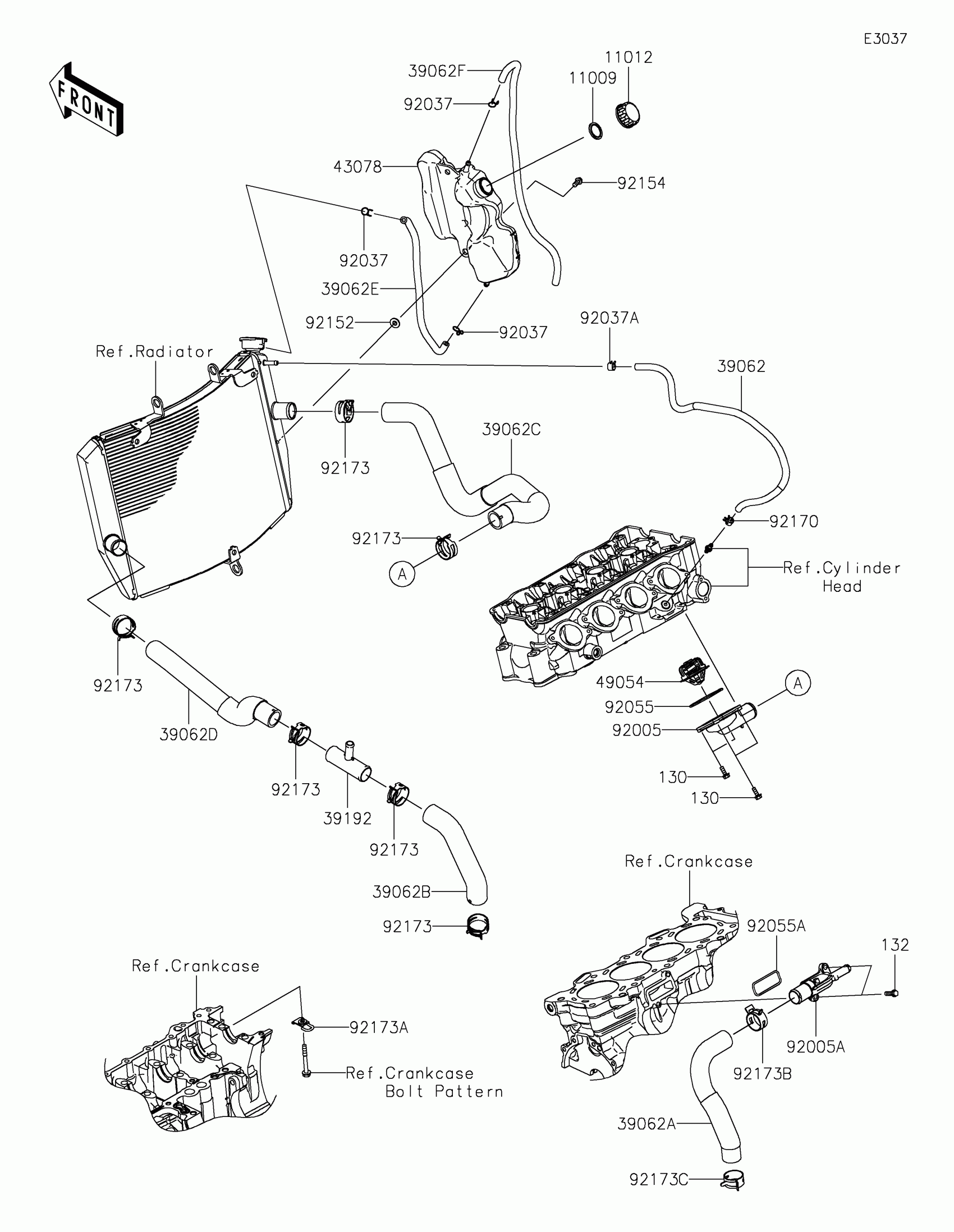

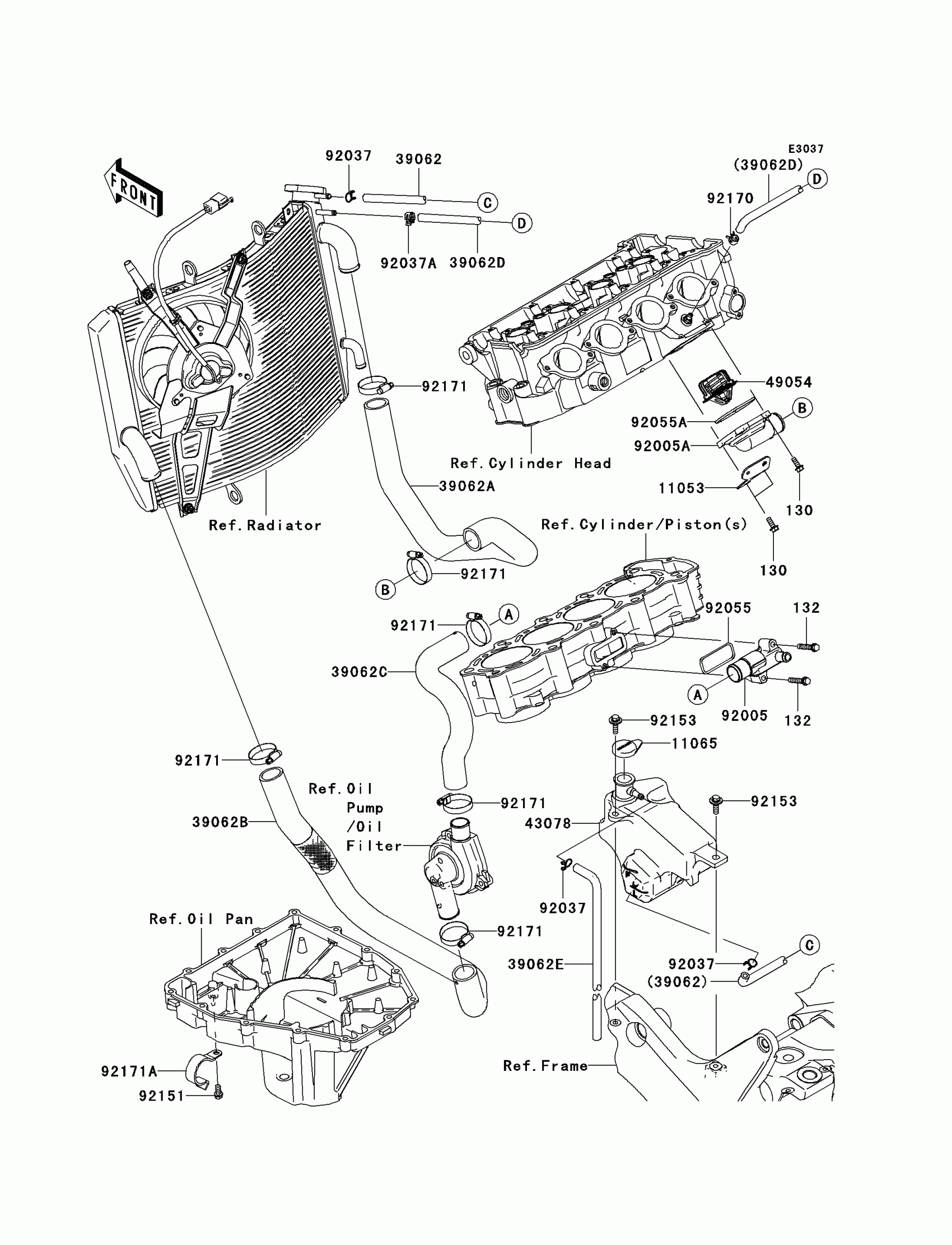

Kawasaki Ninja® ZX™-6R Water Pipe Diagram

#

Description
Price

130

BOLT-FLANGED,5X14

130J0514

Unavailable

132

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

11053

BRACKET

11053-1712

$8.53

11065

CAP,COOLANT

11065-1093

$3.04

39062

HOSE-COOLING,5.5X10.5X717

39062-0015

Unavailable

39062A

HOSE-COOLING,THERMO-RAD

39062-0070

Unavailable

39062B

HOSE-COOLING,RAD-W.PUMP

39062-0071

$65.40

39062C

HOSE-COOLING,W.PUMP-CYLINDER

39062-0072

Unavailable

39062D

HOSE-COOLING,RAD-HEAD

39062-0078

$9.66

39062E

HOSE-COOLING,5.5X10.5X550

39062-1208

$38.54

43078

RESERVOIR

43078-0022

Unavailable

49054

THERMOSTAT

49054-1067

Unavailable

92005

FITTING

92005-0028

$42.93

92005A

FITTING,THERMO CAP

92005-1275

$70.91

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP,TUBE

92037-1505

$3.63

92055

RING-O

92055-1402

$5.99

92055A

RING-O,THERMOSTAT CAP

92055-1699

$6.91

92151

BOLT,6X12

92151-1133

Unavailable

92153

BOLT,6X20

92153-0502

$1.98

92170

CLAMP

92170-1493

$3.81

92171

CLAMP

92171-0179

$6.25

92171A

CLAMP

92171-0421

$9.37
