1997 Kawasaki Ninja® ZX™-6R Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 1997 Kawasaki Ninja® ZX™-6R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

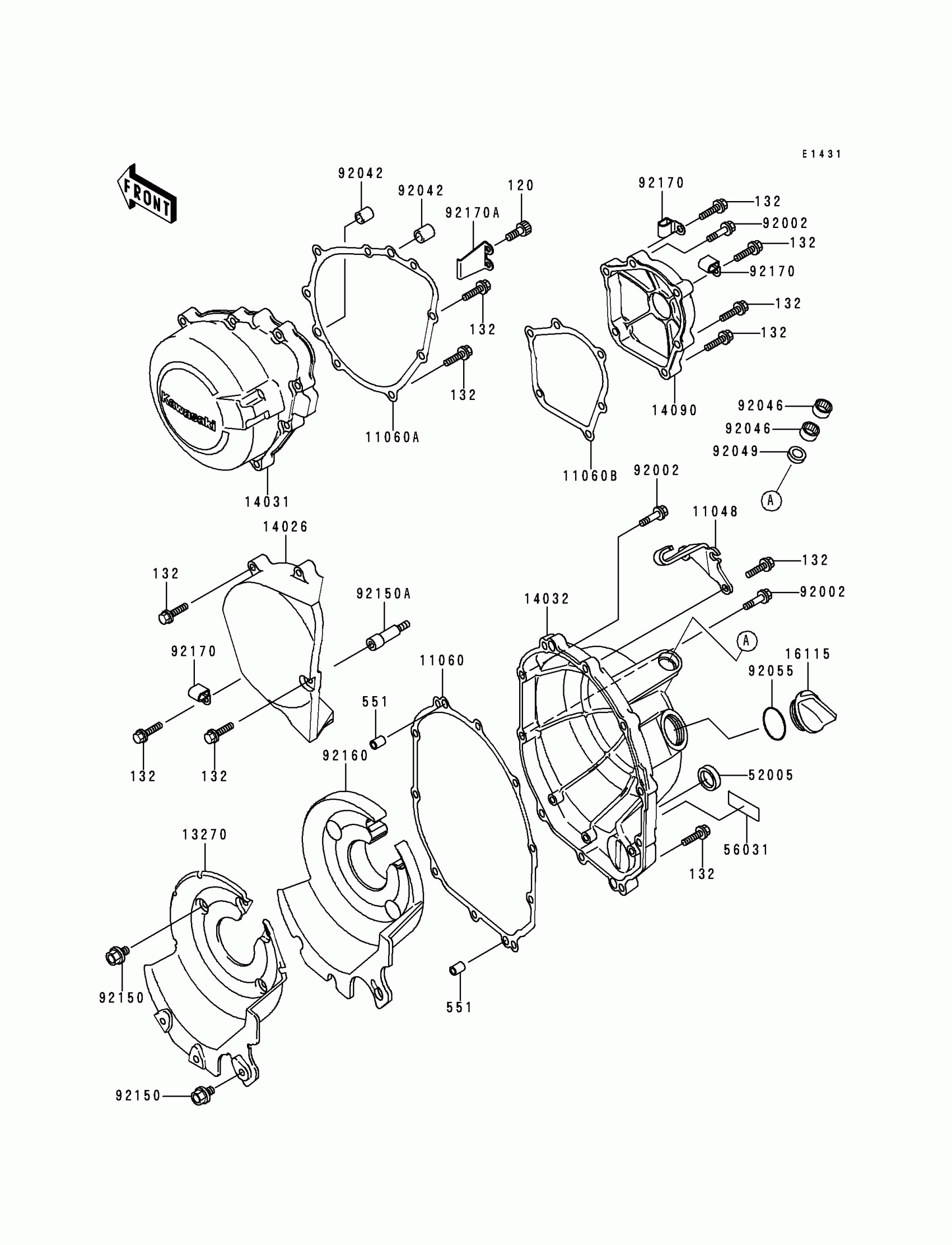

1997 Kawasaki Ninja® ZX™-6R Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET

120P0512

1
Out of stock

132

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock

551

PIN-DOWEL,8X14

551A0814

1

$1.08

In stock

11048

BRACKET,CLUTCH COVER

11048-1852

1
Out of stock

11060

GASKET

11060-1672

1
Out of stock

11060A

GASKET,GENERATOR COVER

11060-1673

1
Out of stock

11060B

GASKET,PULSING COVER

11060-1674

1
Out of stock

13270

PLATE,CLUTCH COVER

13270-1350

1
Out of stock

14026

COVER-CHAIN

14026-1234

1
Out of stock

14031

COVER-GENERATOR

14031-1307

1

$228.40

In stock

14032

COVER-CLUTCH

14032-1400

1
Out of stock

14090

COVER,PULSING

14090-1521

1
Out of stock

16115

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

52005

GAUGE,OIL LEVEL

52005-1057

1

$23.13

In stock

56031

1

$5.44

In stock

92002

BOLT,6X30

92002-1534

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92049

SEAL-OIL,TB12205.5

92049-1271

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92150

BOLT,5X8

92150-1406

1

$3.56

In stock

92150A

BOLT

92150-1889

1

$16.92

In stock

92160

DAMPER,CLUTCH COVER

92160-1554

1

$61.95

In stock

92170

CLAMP

92170-1577

1

$3.03

In stock

92170A

CLAMP

92170-1579

1

$4.61

In stock
