1997 Kawasaki Ninja® ZX™-6R Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1997 Kawasaki Ninja® ZX™-6R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

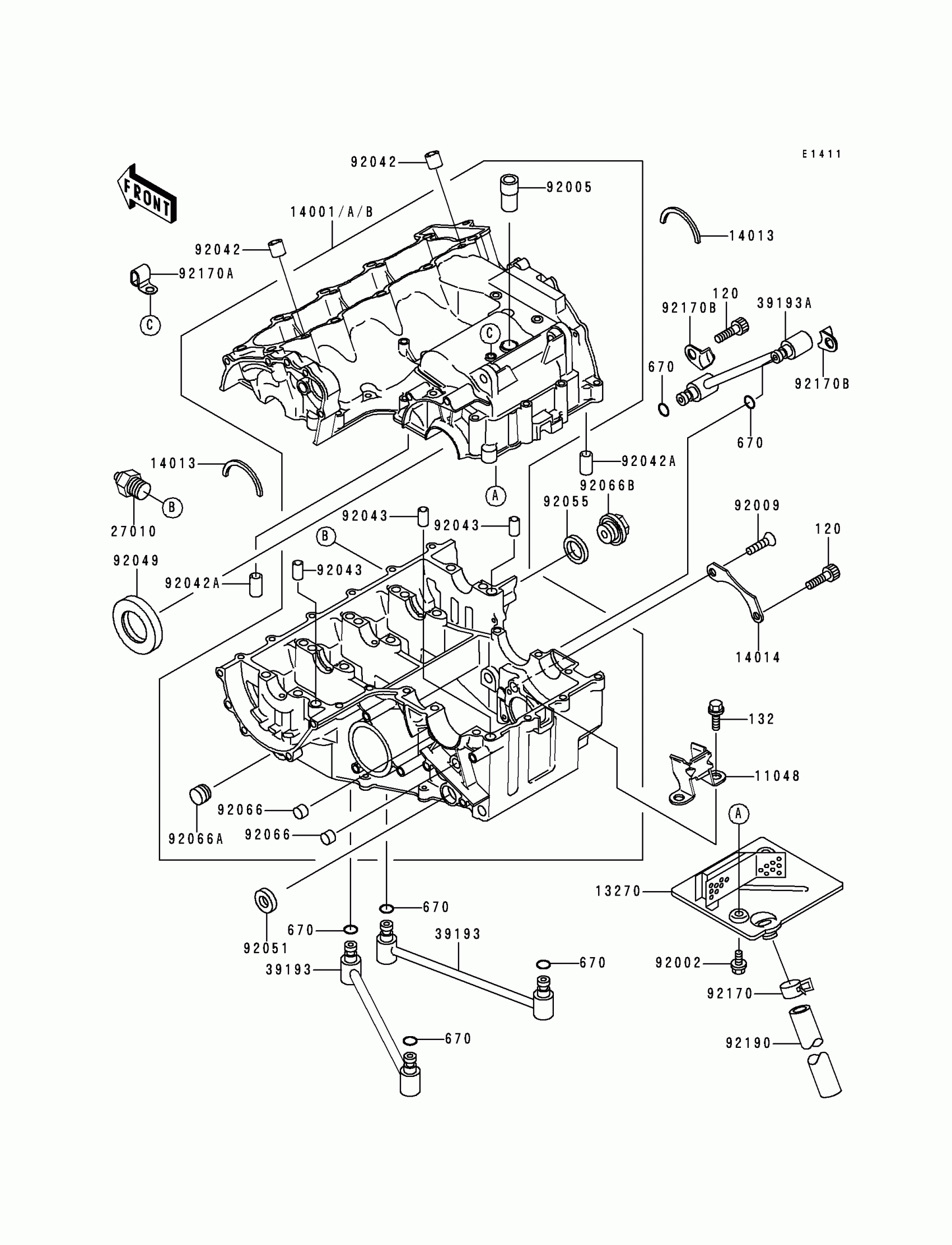

1997 Kawasaki Ninja® ZX™-6R Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X16

120P0616

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132H0612

1
Out of stock

670

O RING

670D1505

1
Out of stock

11048

BRACKET

11048-1851

1
Out of stock

13270

PLATE,BREATHER

13270-1349

1
Out of stock

14001A

SET-CRANKCASE

14001-1210

1
Out of stock

14013

RING-POSITION

14013-004

1
Out of stock

14014

PLATE-POSITION

14014-1123

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1313

1
Out of stock

39193

PIPE-OIL,MAIN-INPUT

39193-1019

1
Out of stock

39193A

PIPE-OIL

39193-1020

1
Out of stock

92002

BOLT,6X10

92002-1449

1
Out of stock

92005

FITTING,BREATHER

92005-1238

1
Out of stock

92009

SCREW,6X16

92009-1360

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92042A

PIN,DOWEL,6X16

92042-016

1
Out of stock

92043

PIN,10X14

92043-1506

1
Out of stock

92049

SEAL-OIL,TC32528

92049-1307

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O,20X2

92055-1146

1
Out of stock

92066

PLUG

92066-1110

1
Out of stock

92066A

PLUG,PT3/8X12

92066-1252

1
Out of stock

92066B

PLUG,MAIN GALLERY,18X9

92066-1394

1
Out of stock

92170

CLAMP

92170-1167

1
Out of stock

92170A

CLAMP

92170-1514

1
Out of stock

92170B

CLAMP

92170-1578

1
Out of stock

92190

TUBE,9X12X180

92190-1580

1
Out of stock
