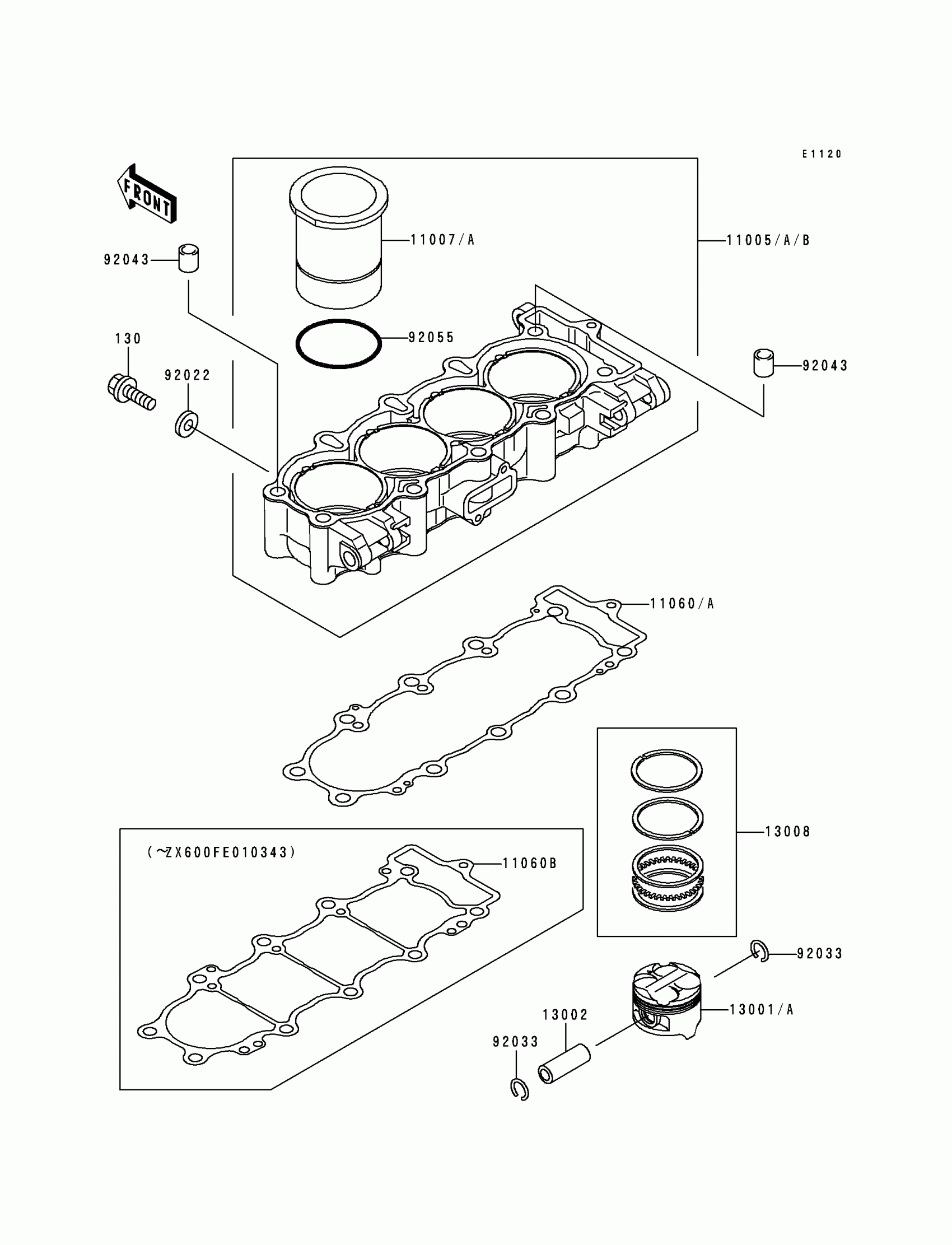

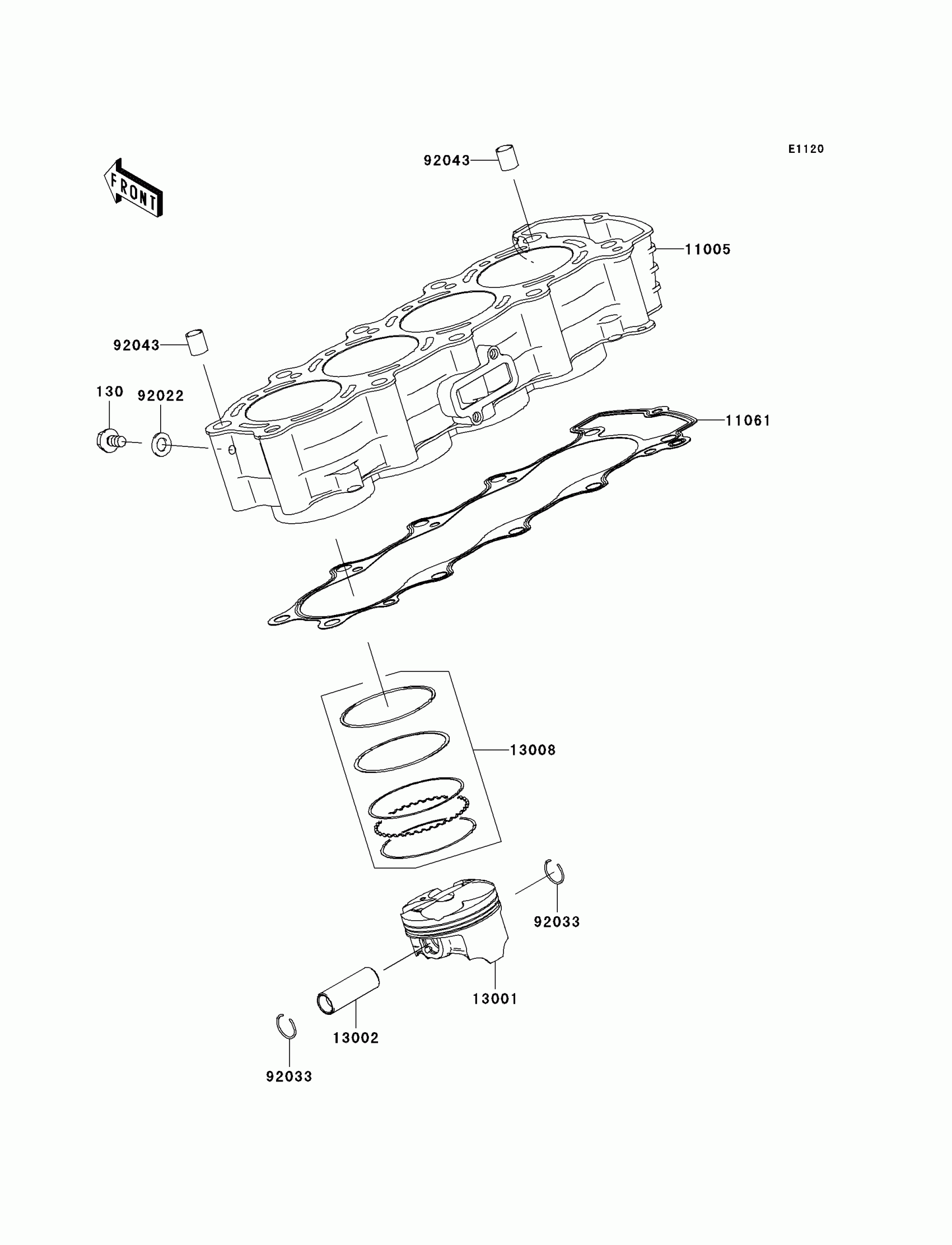

Kawasaki Ninja® ZX™-6R Cylinder/Piston(s) Diagram

#

Description

Price

130

BOLT-FLANGED

130J0610

Unavailable

11005A

CYLINDER-ENGINE

11005-1798

Unavailable

11007A

LINER-CYLINDER

11007-1142

Unavailable

11060

GASKET,CYLINDER BASE

11060-1668

Unavailable

13001A

PISTON-ENGINE,STD

13001-1451

Unavailable

13002

PIN-PISTON

13002-1105

Unavailable

13008

RING-SET-PISTON,STD

13008-1161

$62.02

92022

WASHER,6.2X11X1

92022-304

$2.76

92033

RING-SNAP,PISTON PIN

92033-1161

$2.97

92043

PIN,10.1X12X14

92043-4009

$4.67

92055

RING-O,72X2.0

92055-1534

Unavailable
