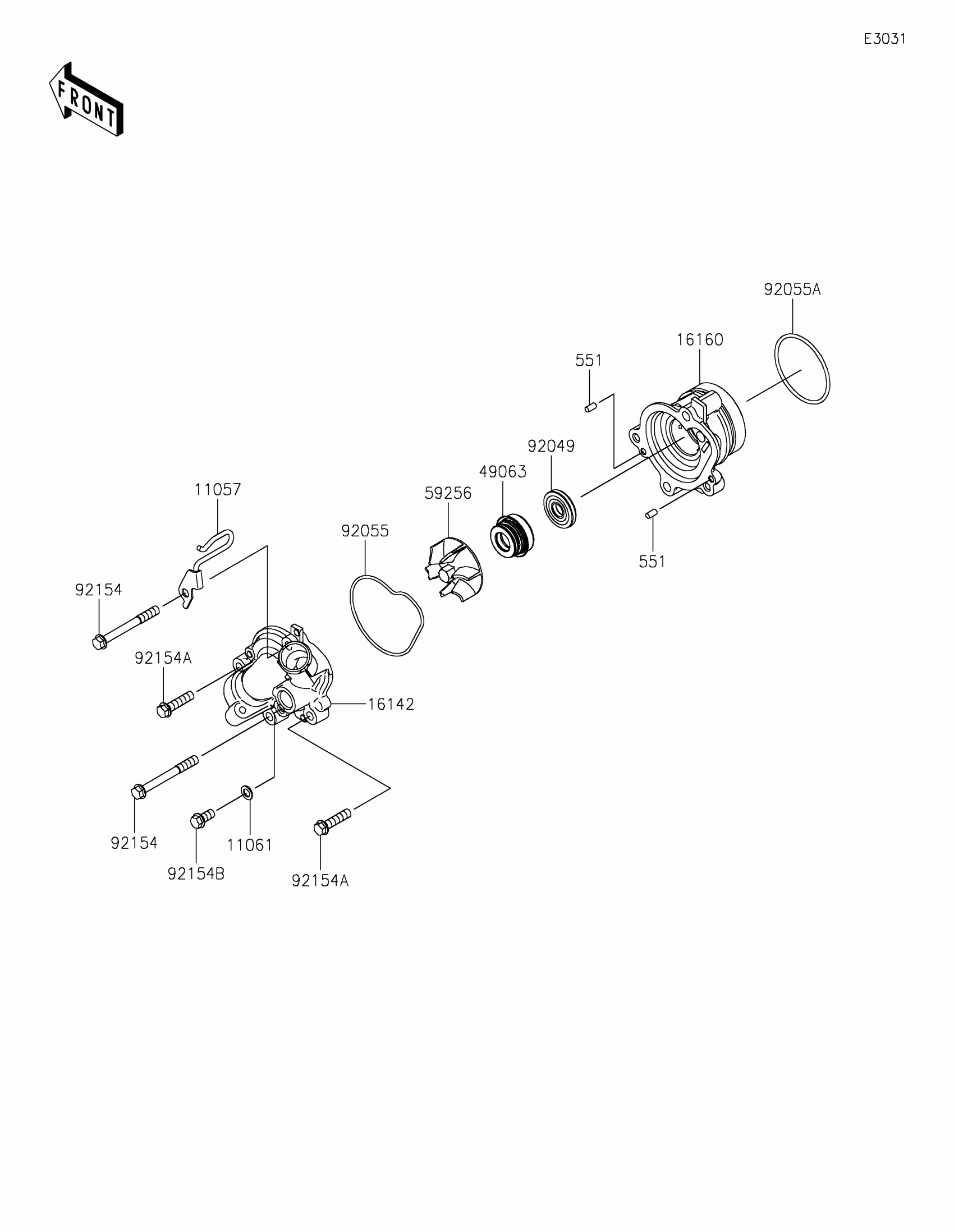

Find the part on the Water Pump diagram for your 2024 Kawasaki Ninja ZX-4RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Ninja ZX-4RR Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-4085

1
Out of stock

11061

GASKET

11061-0107

1
Out of stock

16142

COVER-PUMP,WATER

16142-0775

1
Out of stock

16160

BODY,WATER PUMP

16160-0846

1
Out of stock

49063

SEAL-MECHANICAL

49063-1055

1
Out of stock

59256

IMPELLER

59256-0554

1
Out of stock

92049

SEAL-OIL

92049-0798

1
Out of stock

92055

RING-O,WATER PUMP COVER

92055-0942

1
Out of stock

92055A

RING-O,WATER PUMP BODY

92055-0943

1
Out of stock

92154

BOLT,FLANGED,6X55

92154-1288

1
Out of stock

92154A

BOLT,FLANGED,6X25

92154-7030

1
Out of stock

92154B

BOLT,FLANGED,6X12

92154-7036

1
Out of stock

551

PIN-DOWEL,4X8

551A0408

1
Out of stock
