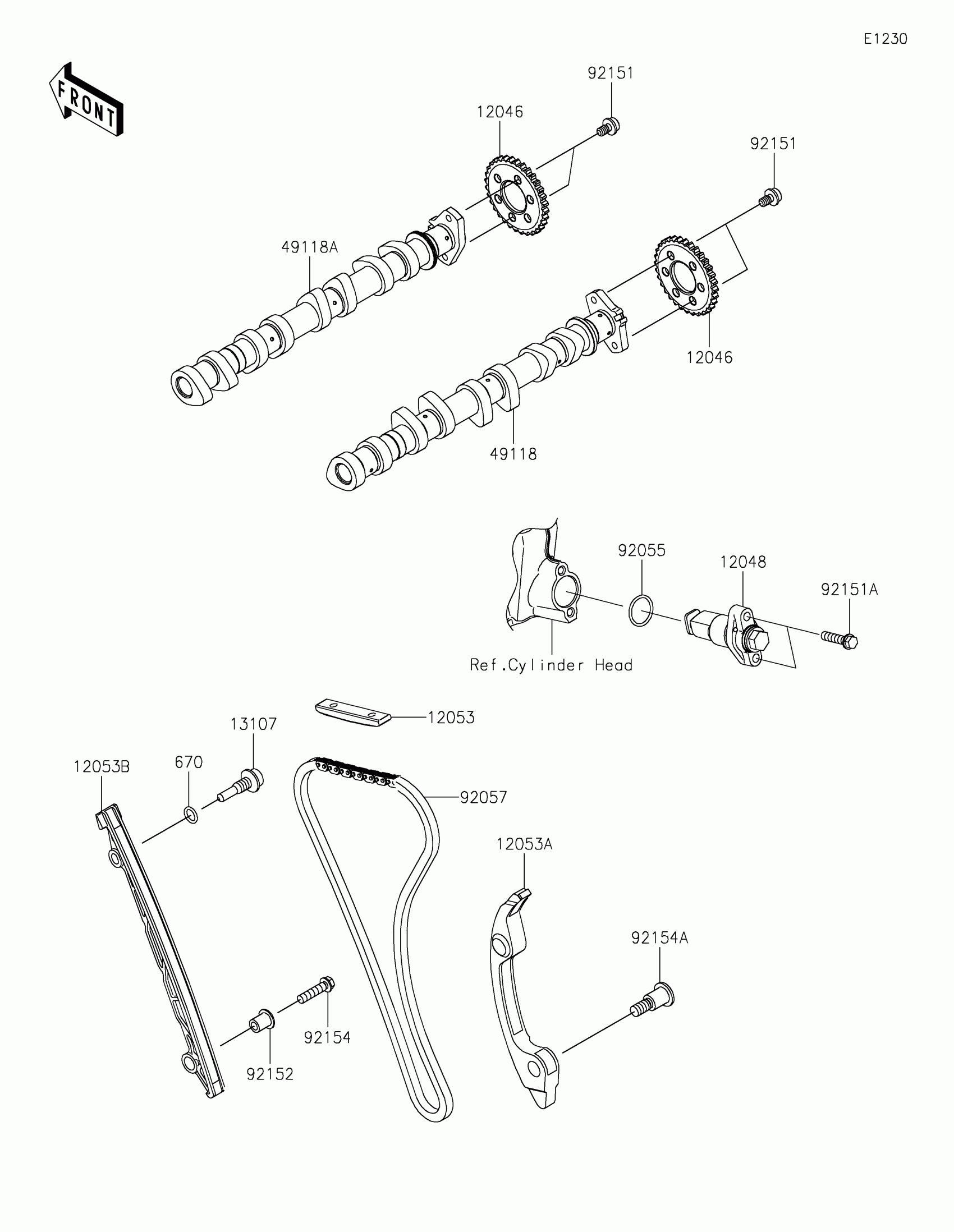

Kawasaki Ninja ZX-4RR Camshaft(s)/Tensioner Diagram

Description

Price

12046

SPROCKET,32T

12046-0621

$69.26

12048

TENSIONER-ASSY

12048-0111

$97.28

12053

GUIDE-CHAIN,UPP

12053-0051

$19.45

12053A

GUIDE-CHAIN,RR

12053-0325

$70.68

12053B

GUIDE-CHAIN,FR

12053-0330

$13.34

13107

SHAFT,CHAIN GUIDE

13107-0157

$8.10

49118

CAMSHAFT-COMP,INTAKE

49118-1289

$426.11

49118A

CAMSHAFT-COMP,EXHAUST

49118-1290

$426.11

92055

RING-O,18.8X1.9

92055-086

$3.29

92057

CHAIN,CAM,98XRH2010-110M

92057-0782

$29.75

92151

BOLT,SOCKET,6X10

92151-1829

$1.98

92151A

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92152

COLLAR

92152-0413

$8.46

92154

BOLT,FLANGED,6X25

92154-0520

$2.31

92154A

BOLT,SOCKET,8X29.2

92154-0953

$4.46

670

O RING,9MM

670D1509

$3.57
