2024 Kawasaki Ninja ZX-4RR Water Pipe Diagram

← All diagrams

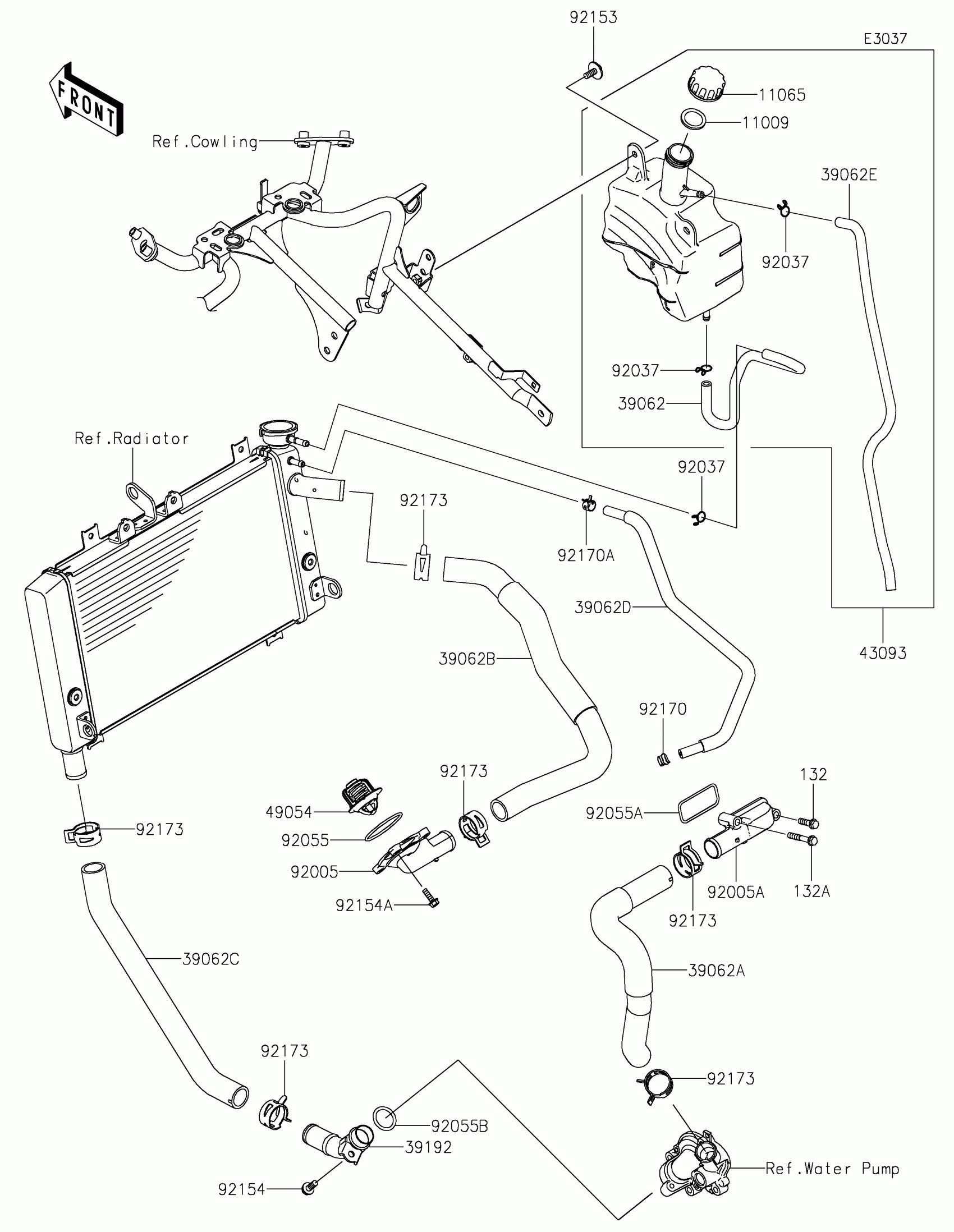

Find the part on the Water Pipe diagram for your 2024 Kawasaki Ninja ZX-4RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Ninja ZX-4RR Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11065

CAP

11065-0969

1

$1.69

In stock

39062

HOSE-COOLING,RETURN

39062-0853

1

$5.81

In stock

39062A

1

$22.54

In stock

39062B

1

$29.09

In stock

39062C

1

$15.03

In stock

39062D

1

$14.63

In stock

39062E

1

$7.73

In stock

39192

PIPE-WATER

39192-0658

1

$17.29

In stock

43093

RESERVOIR-ASSY-TANK

43093-0009

1

$25.19

In stock

49054

THERMOSTAT

49054-0001

1

$27.83

In stock

92005

FITTING,THERMO CAP

92005-0957

1

$35.83

In stock

92005A

FITTING

92005-0958

1

$35.83

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92055

RING-O,44.7X2.4

92055-0947

1

$5.71

In stock

92055A

RING-O,FITTING

92055-0948

1

$5.02

In stock

92055B

RING-O,21.6X3.1

92055-0949

1

$3.29

In stock

92153

1

$1.53

In stock

92154

1

$4.17

In stock

92154A

BOLT,FLANGED,5X16

92154-7034

1

$0.85

In stock

92170

CLAMP

92170-1493

1

$3.97

In stock

92170A

CLAMP

92170-1872

1

$3.18

In stock

92173

CLAMP

92173-1688

1

$3.07

In stock

132

1

$2.05

In stock

132A

1

$1.73

In stock
