2024 Kawasaki Ninja ZX-4RR Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2024 Kawasaki Ninja ZX-4RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

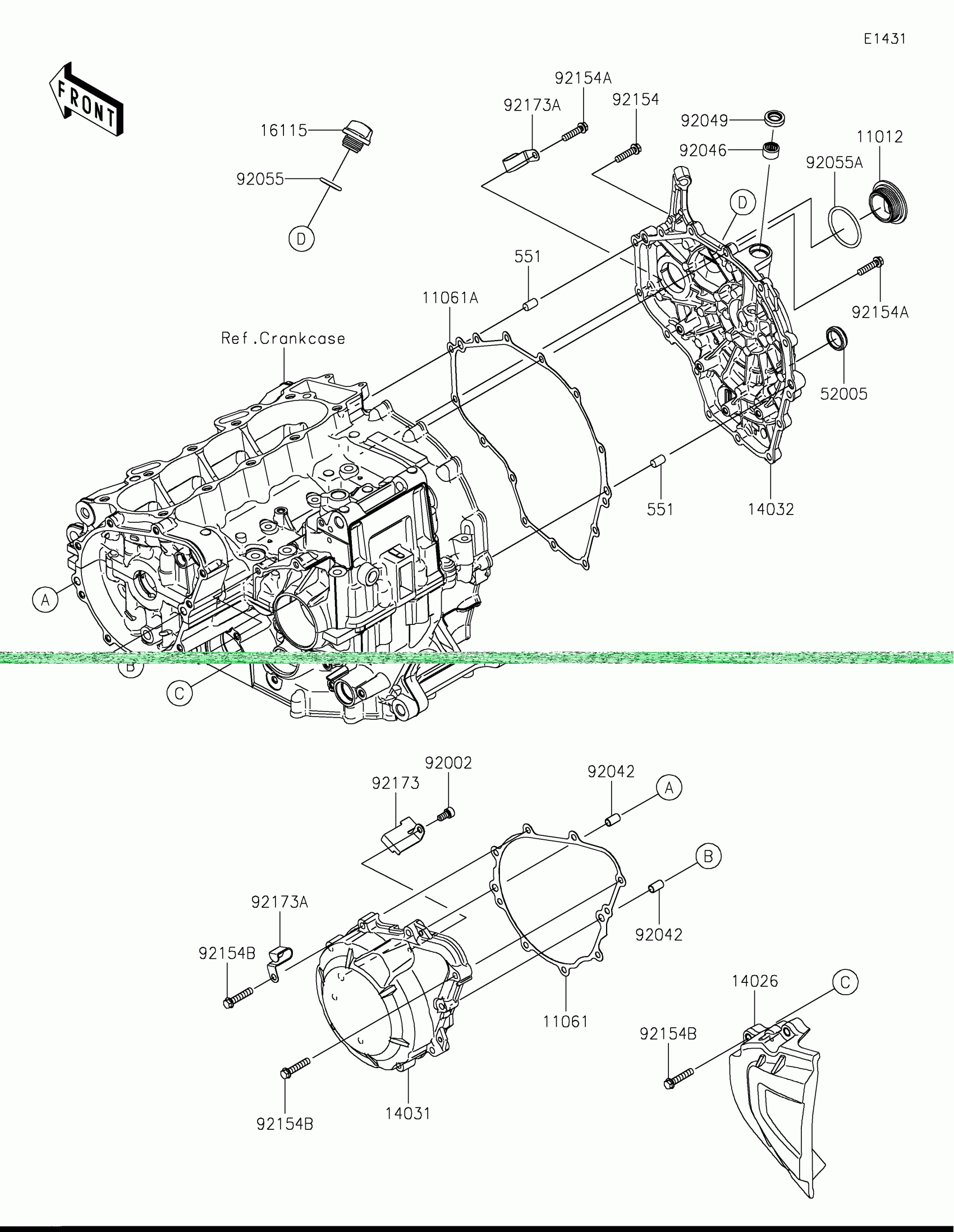

2024 Kawasaki Ninja ZX-4RR Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1362

1
Out of stock

11061

GASKET,GENERATOR COVER

11061-1326

1
Out of stock

11061A

GASKET,CLUTCH COVER

11061-1327

1
Out of stock

14026

COVER-CHAIN

14026-0158

1
Out of stock

14031

COVER-GENERATOR

14031-0637

1
Out of stock

14032

COVER-CLUTCH

14032-0661

1
Out of stock

16115

CAP-OIL FILLER

16115-1053

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1009

1
Out of stock

92002

BOLT,SOCKET,6X12

92002-1796

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92046

BEARING-NEEDLE,HK1210FM

92046-0034

1
Out of stock

92049

SEAL-OIL

92049-1560

1
Out of stock

92055

RING-O

92055-012

1
Out of stock

92055A

RING-O,39.4X3.1

92055-0734

1
Out of stock

92154

BOLT,FLANGED,6X25

92154-2734

1
Out of stock

92154A

BOLT,FLANGED,6X25

92154-7030

1
Out of stock

92154B

BOLT,FLANGED,6X30

92154-7032

1
Out of stock

92173

CLAMP

92173-2112

1
Out of stock

92173A

CLAMP

92173-2588

1
Out of stock

551

PIN-DOWEL,8X14

551A0814

1
Out of stock
