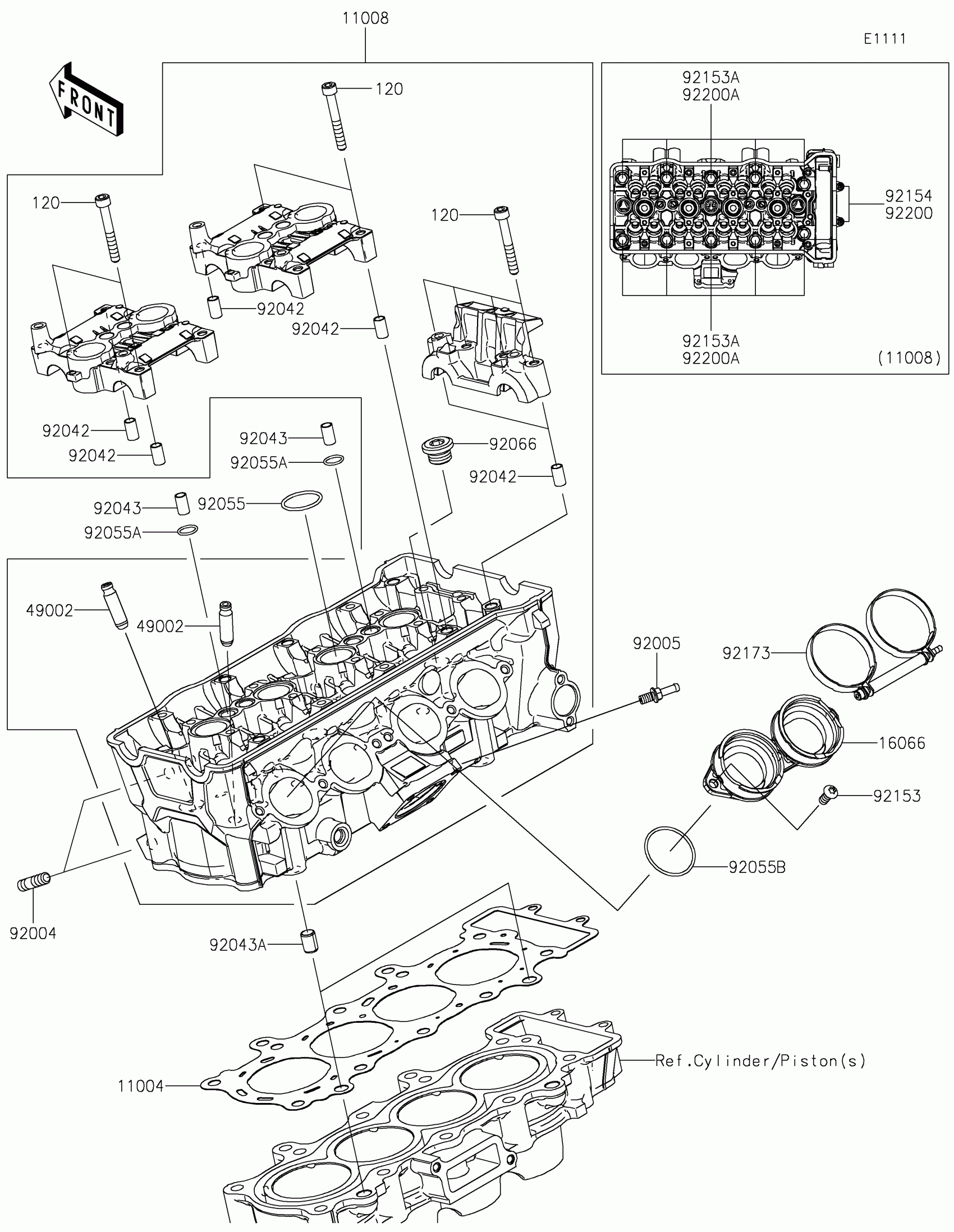

Kawasaki Ninja ZX-4RR Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0806

$65.42

11008

HEAD-COMP-CYLINDER

11008-1503

$1,886.02

16066

HOLDER-THROTTLE BODY

16066-0025

$54.47

49002

GUIDE-VALVE

49002-1152

$31.83

92004

STUD,8X18

92004-0049

$4.92

92005

FITTING

92005-0826

$9.86

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92043A

PIN,8.2X10X14

92043-1264

$0.51

92055

RING-O,25.5X2

92055-0074

$2.98

92055A

RING-O,11.5X1.5

92055-0133

$2.98

92055B

RING-O,36.2X1.9

92055-1742

$3.68

92066

PLUG,16X10

92066-0129

$13.02

92153

BOLT,TORX,6X14

92153-0406

$1.98

92153A

BOLT,FLANGED,8X120

92153-0960

$6.62

92154

BOLT,SOCKET,6X80

92154-7031

$5.24

92173

CLAMP

92173-2681

$18.26

92200

WASHER,6.1X10.0X1.0

92200-0190

$1.85

92200A

WASHER,WAVE,8.2X16.4X1.6

92200-2372

$1.71

120

BOLT-SOCKET,6X45

120CA0645

$1.73
