2024 Kawasaki Ninja ZX-4RR Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2024 Kawasaki Ninja ZX-4RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

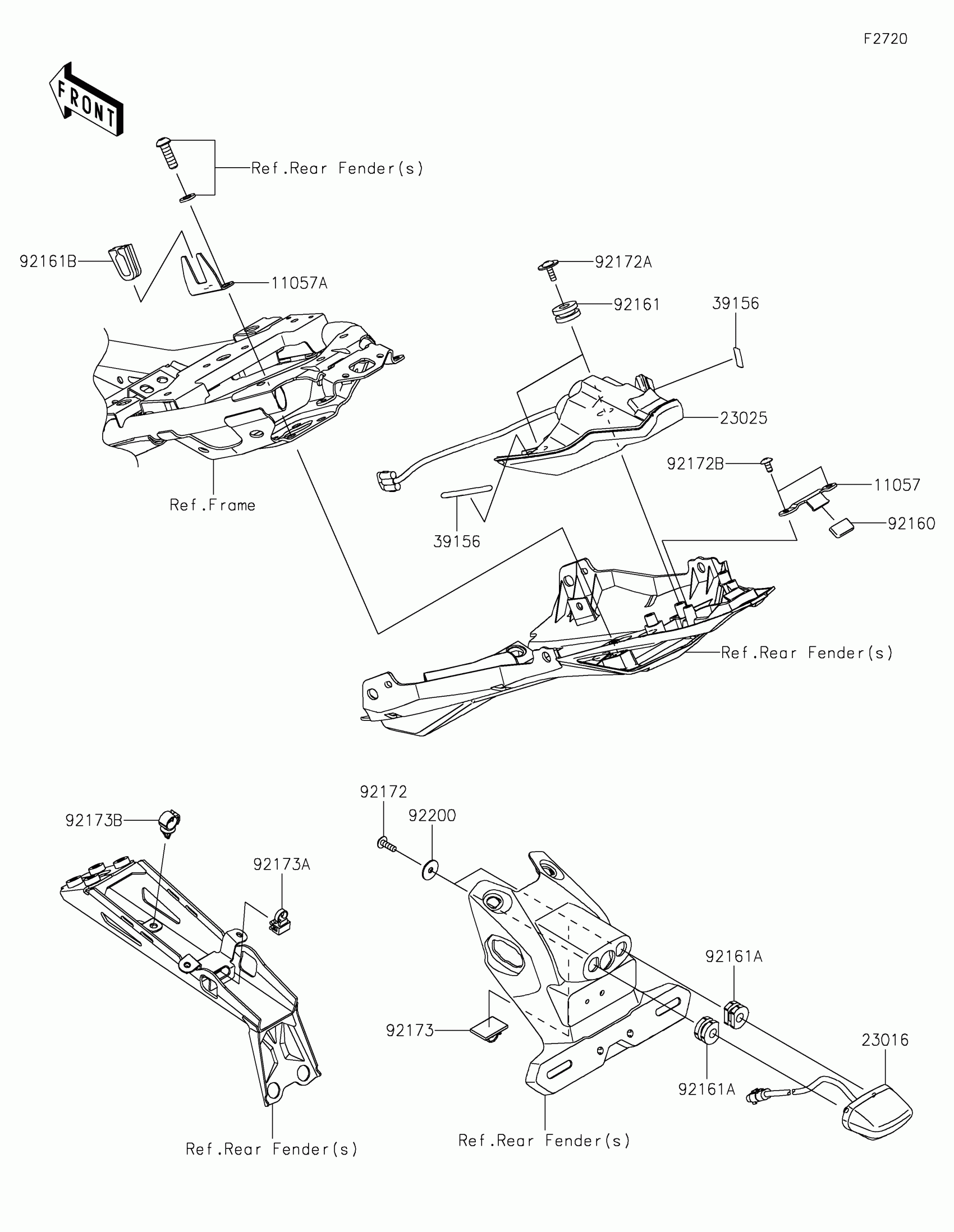

2024 Kawasaki Ninja ZX-4RR Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-1214

1
Out of stock

11057A

BRACKET

11057-7802

1
Out of stock

23016

LAMP-ASSY,LICENSE,LED

23016-0637

1
Out of stock

23025

LAMP-TAIL,LED

23025-0400

1
Out of stock

39156

PAD,6X50

39156-2421

1
Out of stock

92160

DAMPER

92160-1190

1
Out of stock

92161

DAMPER

92161-0163

1
Out of stock

92161A

DAMPER

92161-0776

1
Out of stock

92161B

DAMPER,RR FENDER

92161-1984

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0427

1
Out of stock

92172A

SCREW,5X16

92172-1215

1
Out of stock

92172B

SCREW,CROS,5X10

92172-1255

1
Out of stock

92173

CLAMP

92173-1061

1
Out of stock

92173A

CLAMP

92173-1578

1
Out of stock

92173B

CLAMP

92173-1951

1
Out of stock

92200

WASHER,5.5X20X1.2

92200-0585

1
Out of stock
