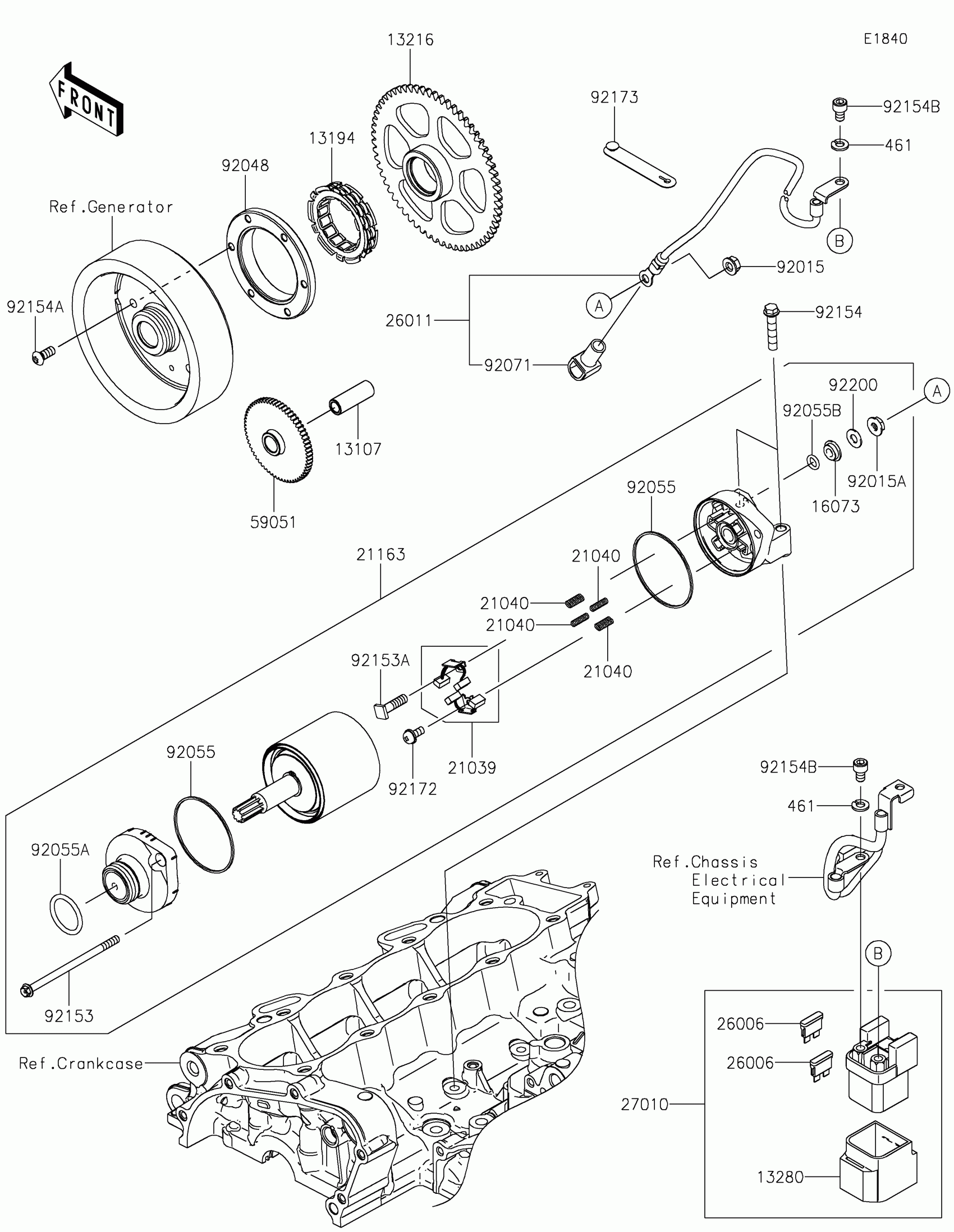

Find the part on the Starter Motor diagram for your 2024 Kawasaki Ninja ZX-4RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Ninja ZX-4RR Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,IDLER

13107-0861

1
Out of stock

13194

CLUTCH-ONEWAY

13194-1096

1
Out of stock

13216

GEAR-COMP,ONEWAY CLUTCH

13216-0913

1
Out of stock

13280

HOLDER

13280-0301

1
Out of stock

16073

INSULATOR

16073-0053

1
Out of stock

21039

BRUSH,CARBON

21039-0004

1
Out of stock

21040

SPRING-BRUSH

21040-0003

1
Out of stock

21163

STARTER-ELECTRIC

21163-0793

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1006

1
Out of stock

26011

WIRE-LEAD,STARTER

26011-1942

1
Out of stock

27010

SWITCH,MAGNETIC

27010-0099

1
Out of stock

59051

GEAR-SPUR,IDLER

59051-0840

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92048

RACE

92048-0024

1
Out of stock

92055

RING-O

92055-0136

1
Out of stock

92055A

RING-O

92055-1276

1
Out of stock

92055B

RING-O,4.5X2.0

92055-1370

1
Out of stock

92071

GROMMET

92071-0024

1
Out of stock

92153

BOLT

92153-1850

1
Out of stock

92153A

BOLT

92153-1866

1
Out of stock

92154

BOLT,FLANGED,6X30

92154-1080

1
Out of stock

92154A

BOLT,TORX,6X14

92154-1225

1
Out of stock

92154B

BOLT,SOCKET,6X10

92154-4401

1
Out of stock

92172

SCREW

92172-0334

1
Out of stock

92173

CLAMP

92173-2199

1
Out of stock

92200

WASHER

92200-0386

1
Out of stock

461

WASHER-SPRING,6MM

461DA0600

1
Out of stock
