2024 Kawasaki Ninja ZX-4RR Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2024 Kawasaki Ninja ZX-4RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

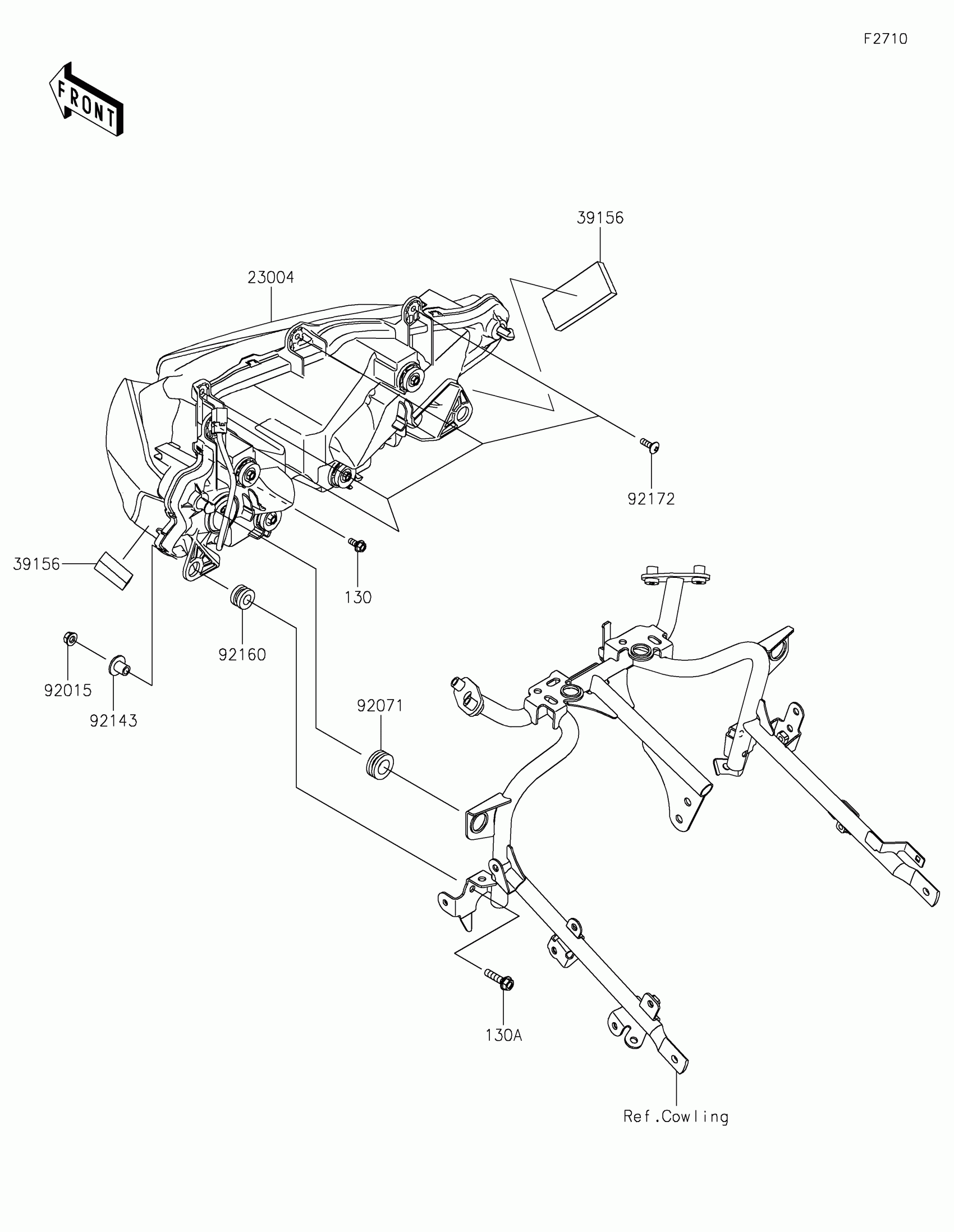

2024 Kawasaki Ninja ZX-4RR Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23004

LAMP-HEAD,LED

23004-0423

1
Out of stock

39156

PAD,70X40X10

39156-2804

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92071

GROMMET

92071-1131

1
Out of stock

92143

COLLAR

92143-1353

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0427

1
Out of stock

130

BOLT-FLANGED,5X12

130BA0512

1

$1.80

In stock

130A

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock
