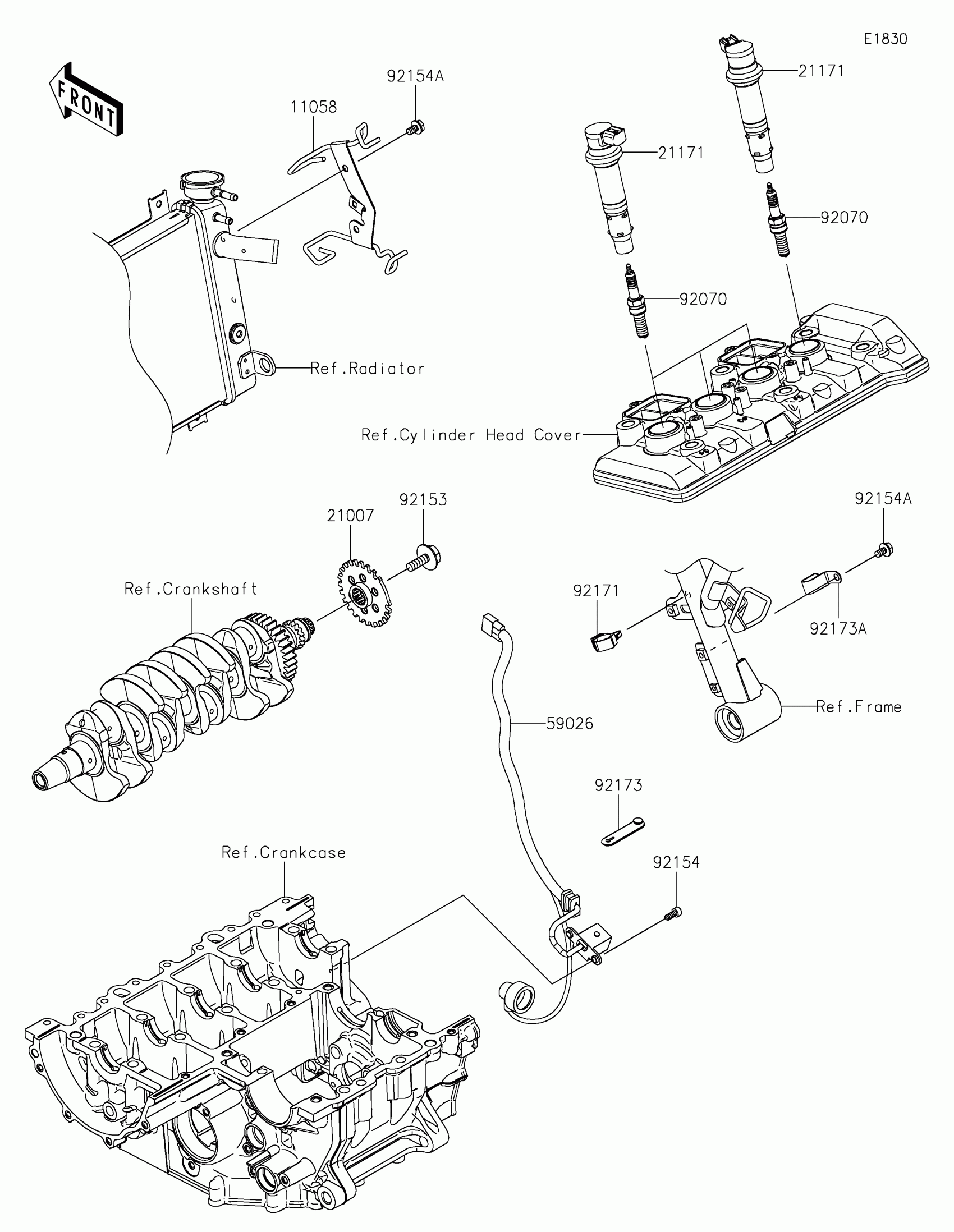

Find the part on the Ignition System diagram for your 2024 Kawasaki Ninja ZX-4RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Ninja ZX-4RR Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET

11058-0576

1
Out of stock

21007

ROTOR,15T

21007-0686

1
Out of stock

21171

COIL-ASSY-IGNITION

21171-0732

1
Out of stock

59026

COIL-PULSING

59026-0561

1
Out of stock

92070

PLUG-SPARK,LMAR9G(NGK)

92070-0716

1
Out of stock

92153

BOLT,FLANGED,8X23

92153-0549

1
Out of stock

92154

BOLT,SOCKET,5X12

92154-0503

1
Out of stock

92154A

BOLT,FLANGED,6X10

92154-2939

1
Out of stock

92171

CLAMP,BRAKE HOSE

92171-0316

1

$3.08

In stock

92173

CLAMP

92173-2198

1
Out of stock

92173A

CLAMP

92173-2588

1
Out of stock
