2024 Kawasaki Ninja ZX-4RR Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2024 Kawasaki Ninja ZX-4RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

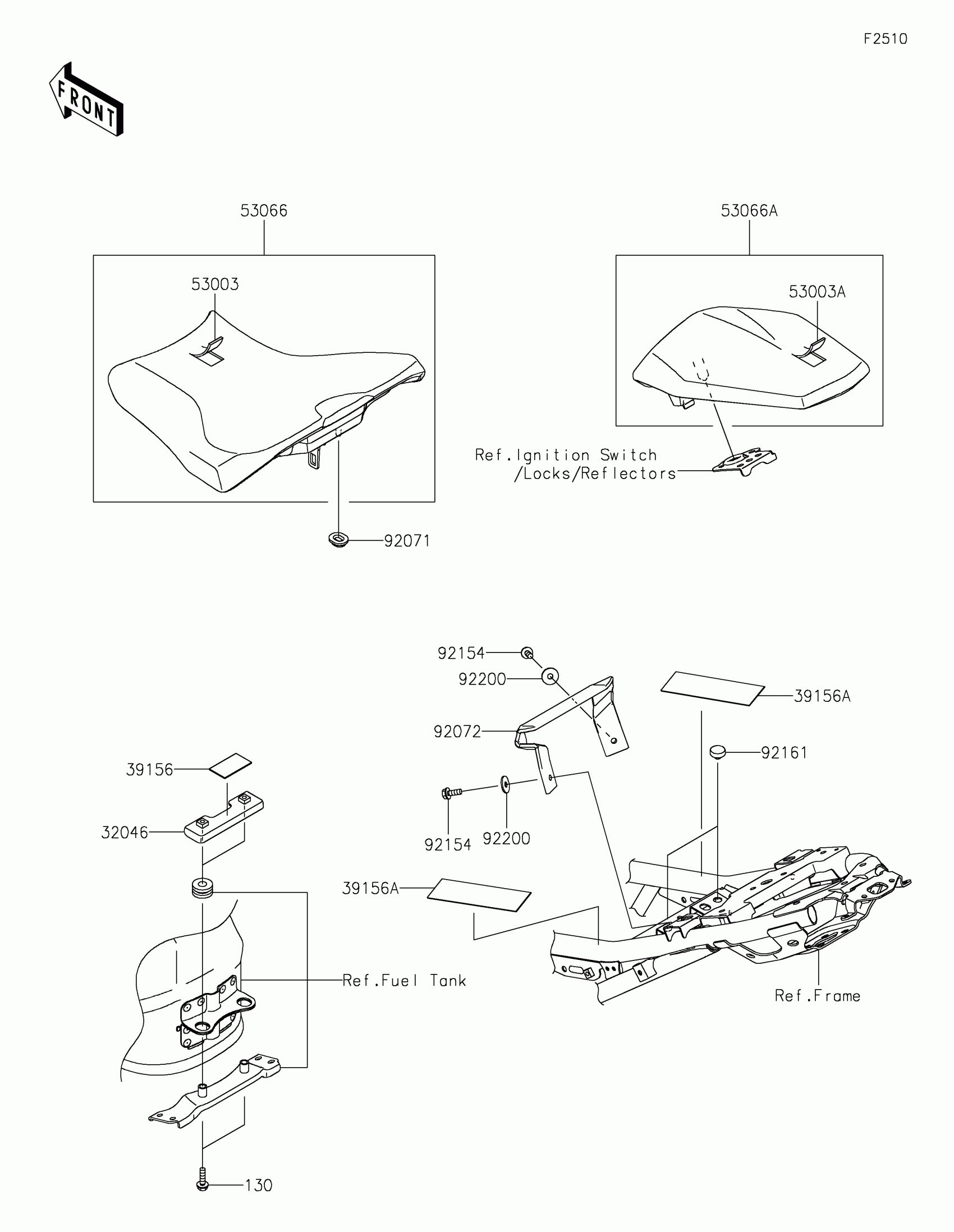

2024 Kawasaki Ninja ZX-4RR Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32046

BRACKET-SEAT

32046-0453

1
Out of stock

39156

PAD,45X26X1

39156-2607

1
Out of stock

39156A

PAD,130X35X1

39156-2835

1
Out of stock

53003

LEATHER,FR SEAT,BLACK

53003-0531-MA

1
Out of stock

53003A

LEATHER,RR SEAT,BLACK

53003-0537-MA

1
Out of stock

53066

SEAT-ASSY,FR,BLACK

53066-0670-MA

1
Out of stock

53066A

SEAT-ASSY,RR,BLACK

53066-0671-MA

1
Out of stock

92071

GROMMET,20X24X7.5

92071-0766

1
Out of stock

92072

BAND,SEAT,BLACK

92072-0861-MA

1
Out of stock

92154

BOLT,FLANGED,6X16

92154-2900

1
Out of stock

92161

DAMPER,9.5X18X6

92161-1473

1

$1.44

In stock

92200

WASHER,6.5X20X1.6

92200-1962

1
Out of stock

130

BOLT-FLANGED,6X22

130CA0622

1

$2.20

In stock
