2024 Kawasaki Ninja ZX-4RR Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2024 Kawasaki Ninja ZX-4RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

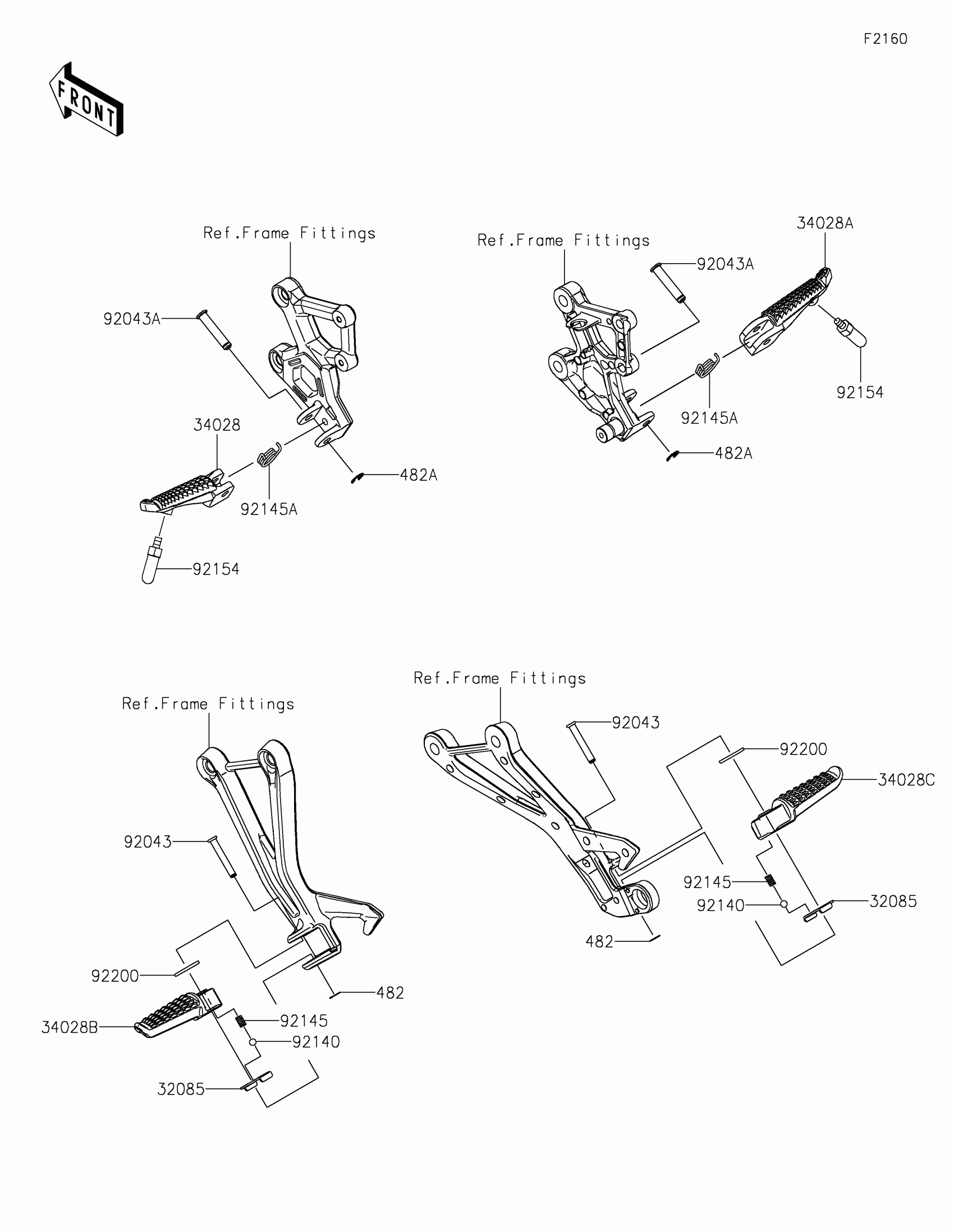

2024 Kawasaki Ninja ZX-4RR Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32085

STOPPER,REAR STEP

32085-0047

1
Out of stock

34028

STEP,FR,LH

34028-0356

1
Out of stock

34028A

STEP,FR,RH

34028-0357

1
Out of stock

34028B

STEP,RR,LH

34028-0366

1
Out of stock

34028C

STEP,RR,RH

34028-0367

1
Out of stock

92043

PIN,6X40

92043-0200

1
Out of stock

92043A

PIN,8X40.5

92043-0877

1
Out of stock

92140

BALL,6.35MM

92140-0008

1
Out of stock

92145

SPRING

92145-1319

1
Out of stock

92145A

SPRING

92145-2240

1
Out of stock

92154

BOLT,BANK SENSOR

92154-2799

1
Out of stock

92200

WASHER,16X26X2.3

92200-0772

1
Out of stock

482

CIRCLIP-TYPE-E

482EA5000

1
Out of stock

482A

CIRCLIP-TYPE-E

482EA7000

1
Out of stock
