2024 Kawasaki Ninja ZX-4RR Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2024 Kawasaki Ninja ZX-4RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

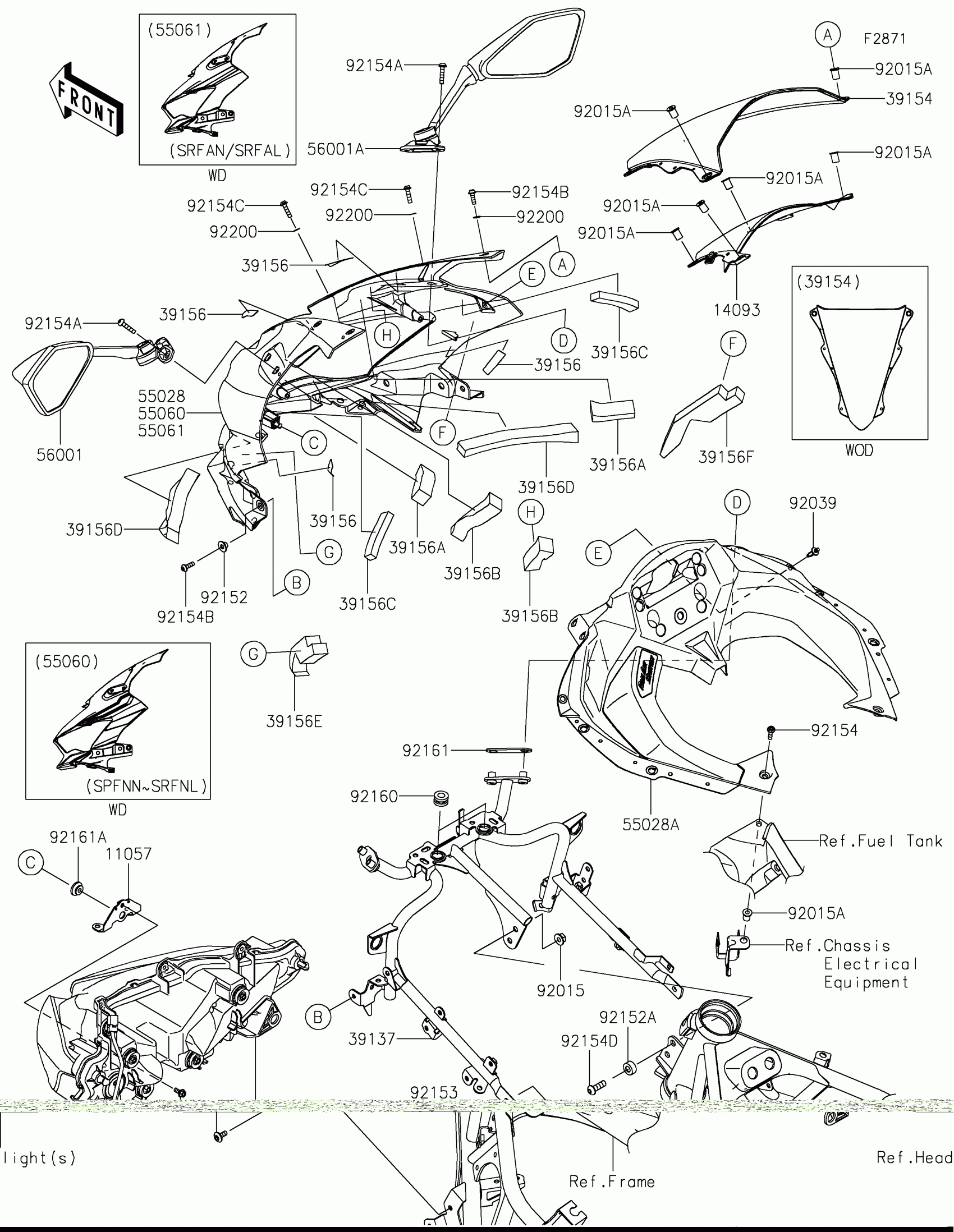

2024 Kawasaki Ninja ZX-4RR Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-2857

1

$3.24

In stock

14093

COVER,VISOR

14093-0957

1

$33.10

In stock

39137

STAY-COMP,UPP COWL.

39137-0743

1

$179.40

In stock

39154

WINDSHIELD

39154-0417

1

$221.66

In stock

39156

PAD,12X44

39156-0635

1

$1.17

In stock

39156A

PAD,60X20X20

39156-2800

1

$1.10

In stock

39156B

PAD,95X20X20

39156-2801

1

$1.20

In stock

39156C

PAD,70X20X10

39156-2802

1

$1.10

In stock

39156D

PAD,165X20X20

39156-2803

1

$1.41

In stock

39156E

PAD,LH

39156-2805

1

$3.92

In stock

39156F

PAD,RH

39156-2806

1

$3.92

In stock

55028A

COWLING,INNER COVER

55028-0823

1

$95.34

In stock

55060

COWLING,UPP,L.GREEN

55060-5228-777

1

$530.05

In stock

56001

MIRROR-ASSY,LH

56001-0380

1

$89.52

In stock

56001A

MIRROR-ASSY,RH

56001-0381

1

$100.75

In stock

92015

1

$3.43

In stock

92015A

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92039

RIVET

92039-0709

1

$2.19

In stock

92152

COLLAR,5.2X7.8X7.2

92152-2371

1

$2.97

In stock

92152A

COLLAR,8.2X18X8

92152-2725

1

$2.66

In stock

92153

BOLT,SOCKET,6X14

92153-1446

1
Out of stock

92154

BOLT,SOCKET,5X20

92154-0919

1
Out of stock

92154A

BOLT,SOCKET,6X25

92154-2806

1

$2.02

In stock

92154B

BOLT,SOCKET,5X16

92154-4294

1

$2.25

In stock

92154C

BOLT,SOCKET,5X20

92154-4301

1

$1.78

In stock

92154D

BOLT,SOCKET,8X25

92154-4459

1

$2.46

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92161

DAMPER

92161-1467

1

$1.68

In stock

92161A

DAMPER

92161-1531

1

$2.44

In stock

92200

WASHER,5.2X10X0.5

92200-1730

1
Out of stock
