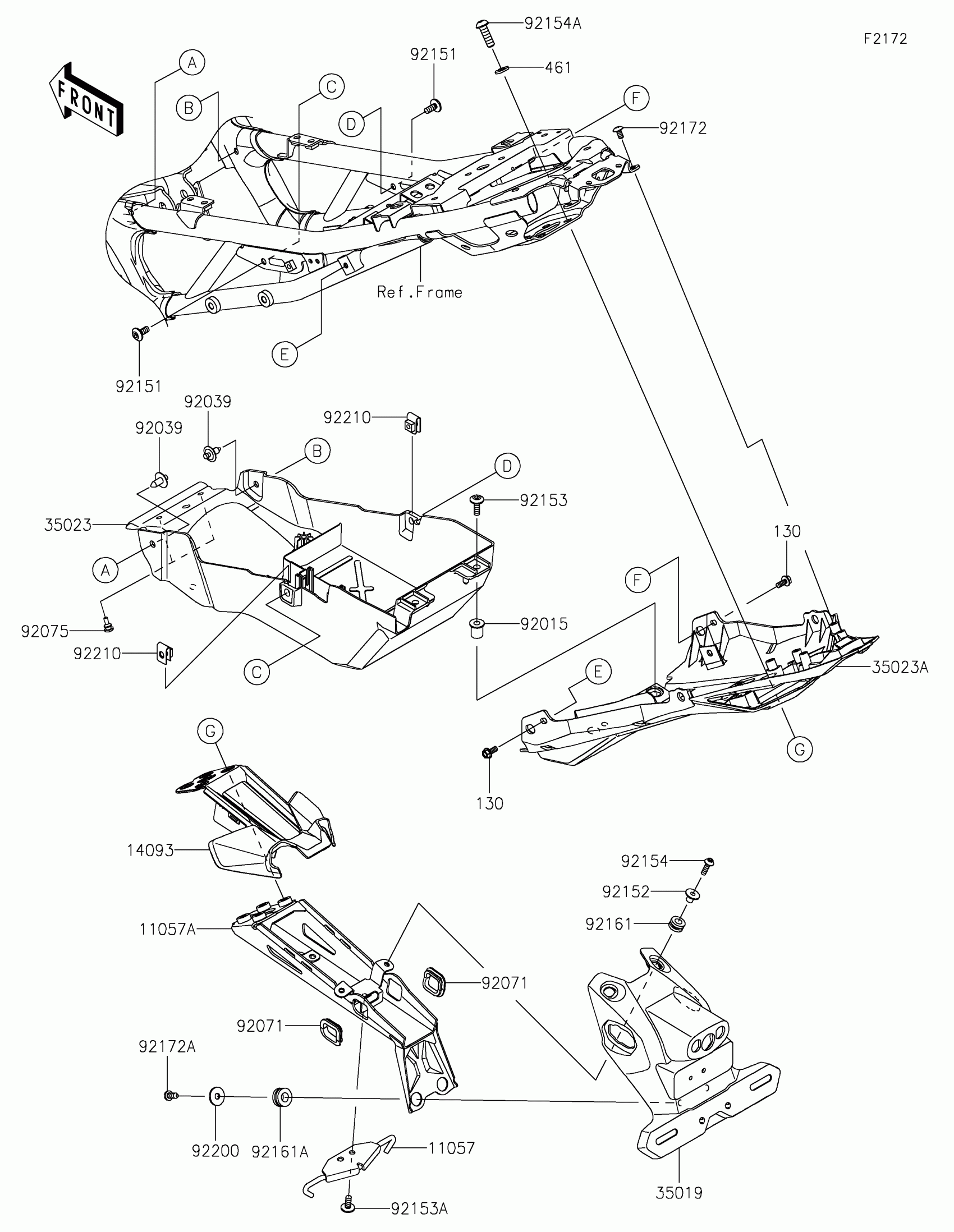

Kawasaki Ninja ZX-4RR Rear Fender(s) Diagram

Description

Price

11057

BRACKET,HOOK

11057-2916

$9.31

11057A

BRACKET,FLAP

11057-7472

$97.47

14093

COVER,FLAP

14093-0960

$30.00

35019

FLAP

35019-0670

$42.23

35023

FENDER-REAR,FR

35023-0465

$54.16

35023A

FENDER-REAR,RR

35023-0492

$46.85

92015

NUT

92015-1700

$6.55

92039

RIVET

92039-1289

$1.98

92071

GROMMET

92071-0819

Unavailable

92075

DAMPER,6X10X15

92075-1808

$1.06

92151

BOLT,SOCKET,6X14

92151-1654

$1.35

92152

COLLAR

92152-2761

$8.61

92153

BOLT,6X18

92153-0816

$1.57

92153A

BOLT,SOCKET,6X14

92153-1361

$2.15

92154

BOLT,SOCKET,5X16

92154-1701

$0.95

92154A

BOLT,SOCKET,8X25

92154-4432

$3.29

92161

DAMPER

92161-0056

$2.38

92161A

DAMPER,10X20X8.8

92161-1664

$2.44

92172

SCREW,5X12

92172-0821

$0.73

92172A

SCREW,TAPPING,6X14

92172-0856

$1.32

92200

WASHER,6.5X20X1.6

92200-1962

Unavailable

92210

NUT,6MM

92210-0218

$1.81

130

BOLT-FLANGED,5X12

130BB0512

$1.42

461

WASHER-SPRING,8MM

461DA0800

$0.44
