2024 Kawasaki Ninja ZX-4RR Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2024 Kawasaki Ninja ZX-4RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

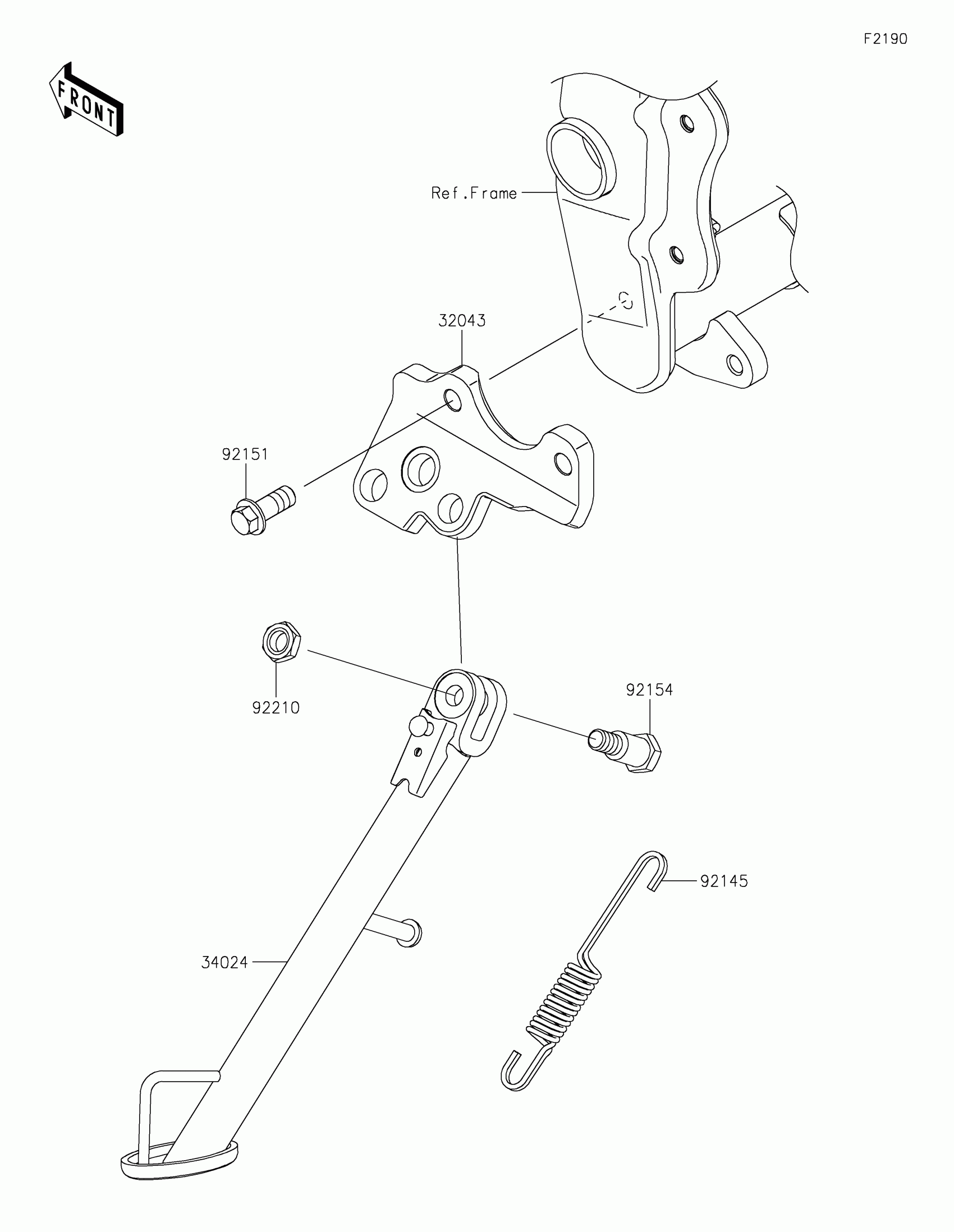

2024 Kawasaki Ninja ZX-4RR Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32043

BRACKET-STAND

32043-0668

1
Out of stock

34024

STAND-SIDE

34024-0138

1

$103.32

In stock

92145

SPRING,SIDE STAND

92145-0804

1
Out of stock

92151

BOLT,FLANGED,10X25

92151-1802

1
Out of stock

92154

BOLT,10X35.5

92154-1023

1
Out of stock

92210

NUT,LOCK,10MM

92210-0784

1
Out of stock
