2013 Kawasaki Ninja® ZX™-14R Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2013 Kawasaki Ninja® ZX™-14R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

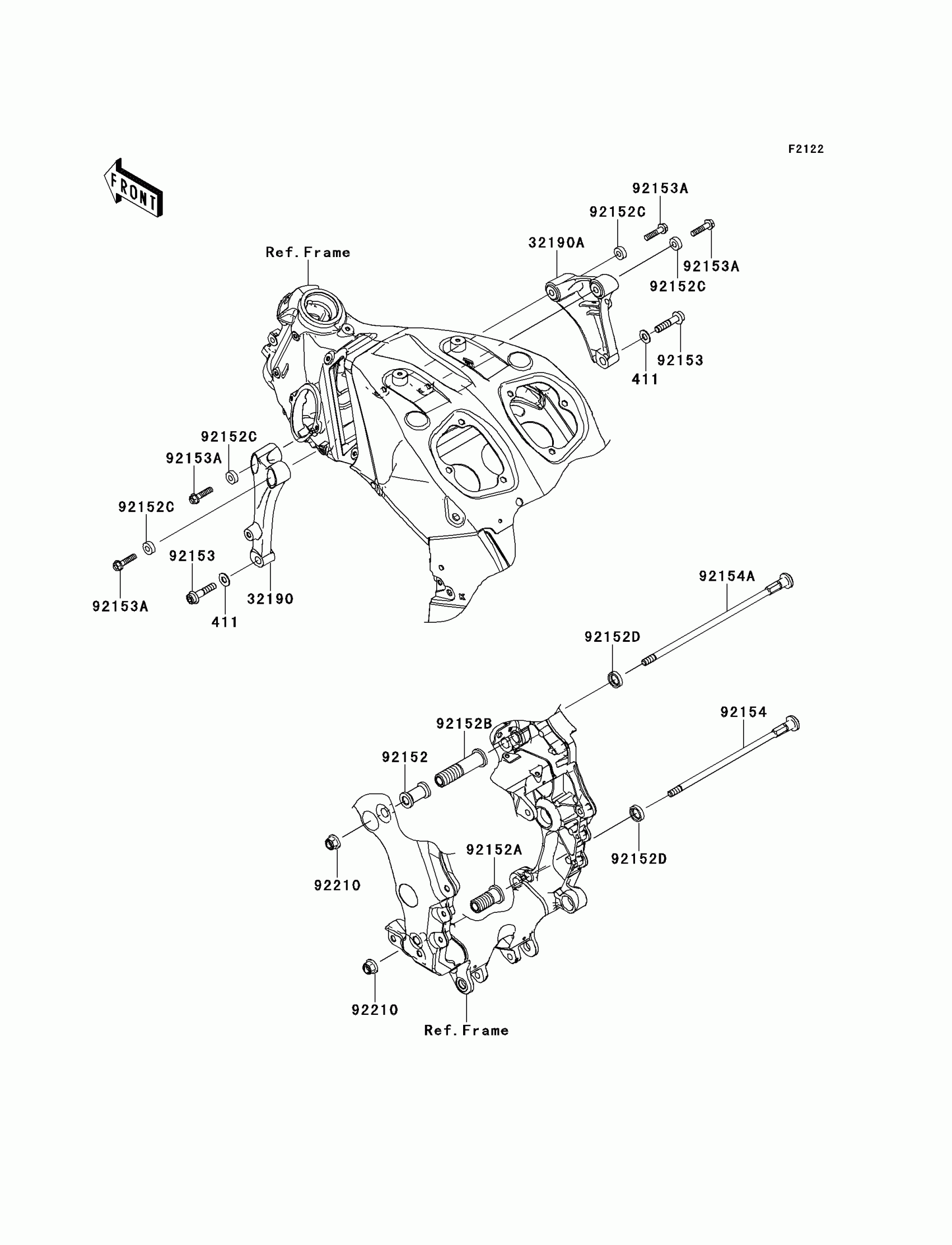

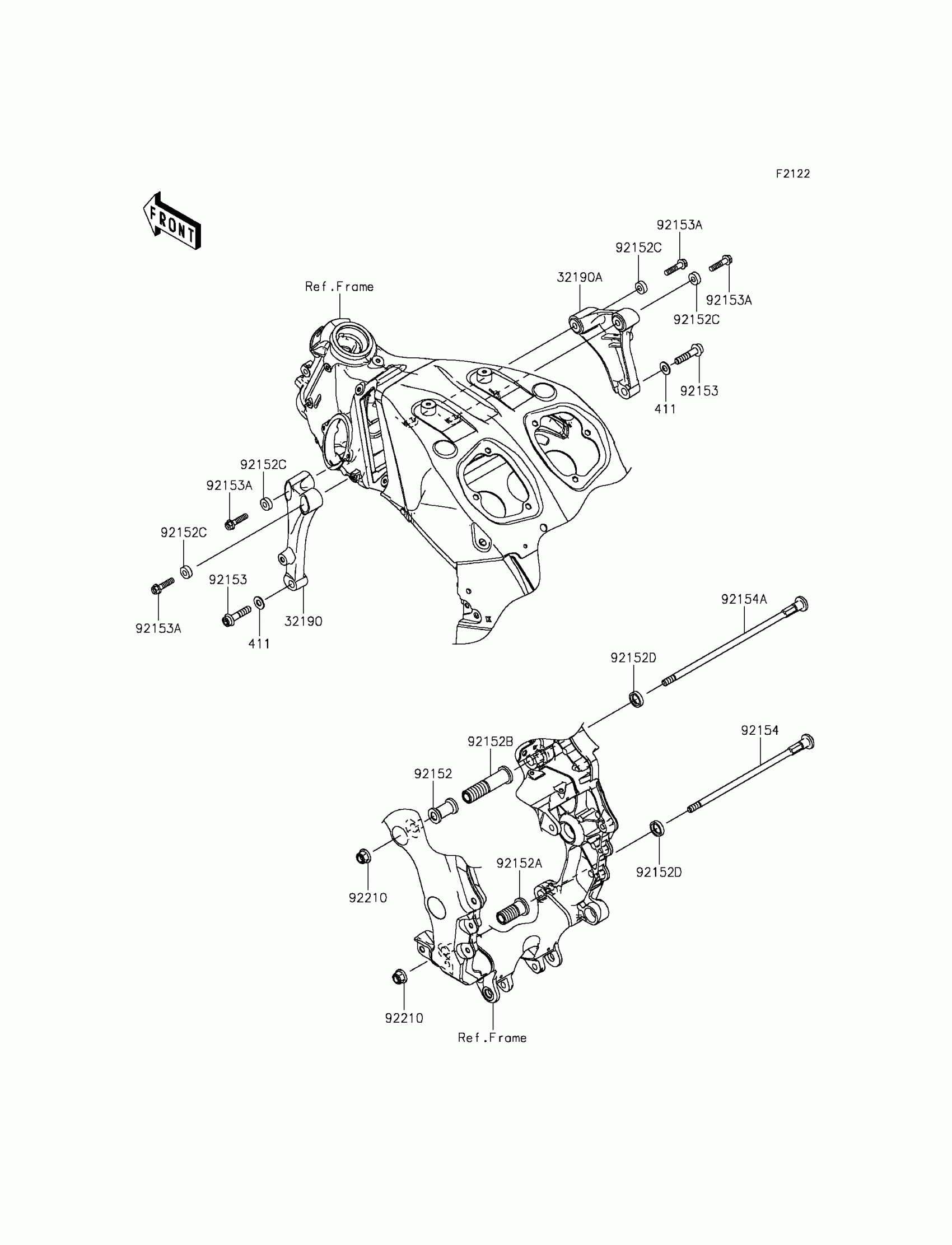

2013 Kawasaki Ninja® ZX™-14R Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

411

WASHER-PLAIN,10MM

411AA1000

1

$0.93

In stock

32190

1

$68.10

In stock

32190A

1

$68.10

In stock

92152

COLLAR,L=43.2

92152-0368

1

$20.63

In stock

92152A

1

$47.69

In stock

92152B

1

$67.96

In stock

92152C

COLLAR,8.8X20X7

92152-0502

1

$3.49

In stock

92152D

COLLAR,16.6X26X6

92152-1561

1

$12.85

In stock

92153

BOLT,SOCKET,10X45

92153-1769

1

$6.44

In stock

92153A

BOLT,FLANGED,8X35

92153-1770

1

$3.64

In stock

92154

BOLT,SOCKET,12X274

92154-0908

1

$42.21

In stock

92154A

BOLT,SOCKET,12X318

92154-0909

1

$42.21

In stock

92210

NUT,LOCK,FLANGED,12MM

92210-0287

1
Out of stock
← Engine Cover Muffler →

More Engine diagrams

Need Help Finding the Right Part?

Not sure it fits? Ask before you order — our team will check the part for your machine.

For a faster answer, include:

Year, make and model of your machine

VIN or frame / serial number

OEM part number or a photo of the old part
