2013 Kawasaki Ninja® ZX™-14R Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2013 Kawasaki Ninja® ZX™-14R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

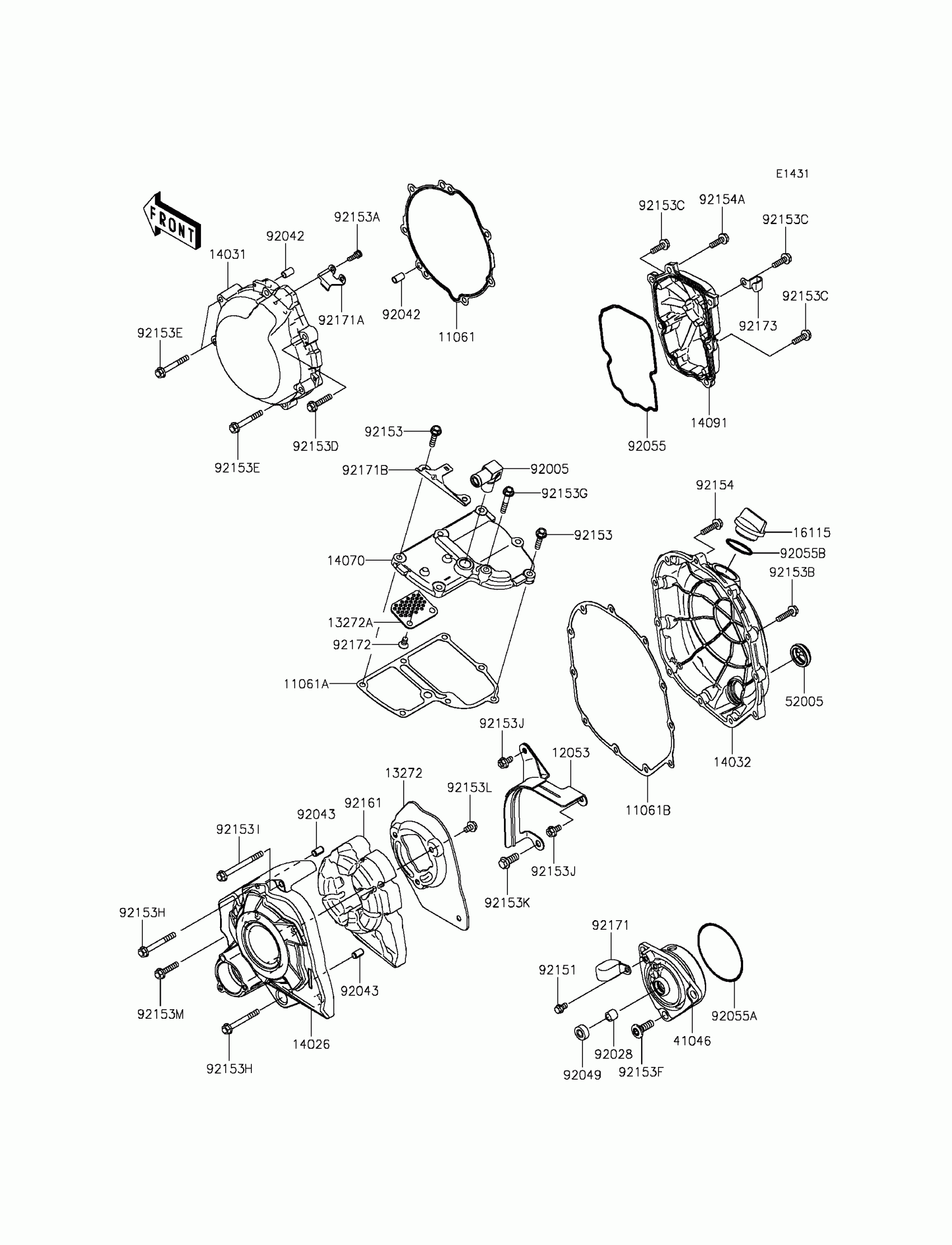

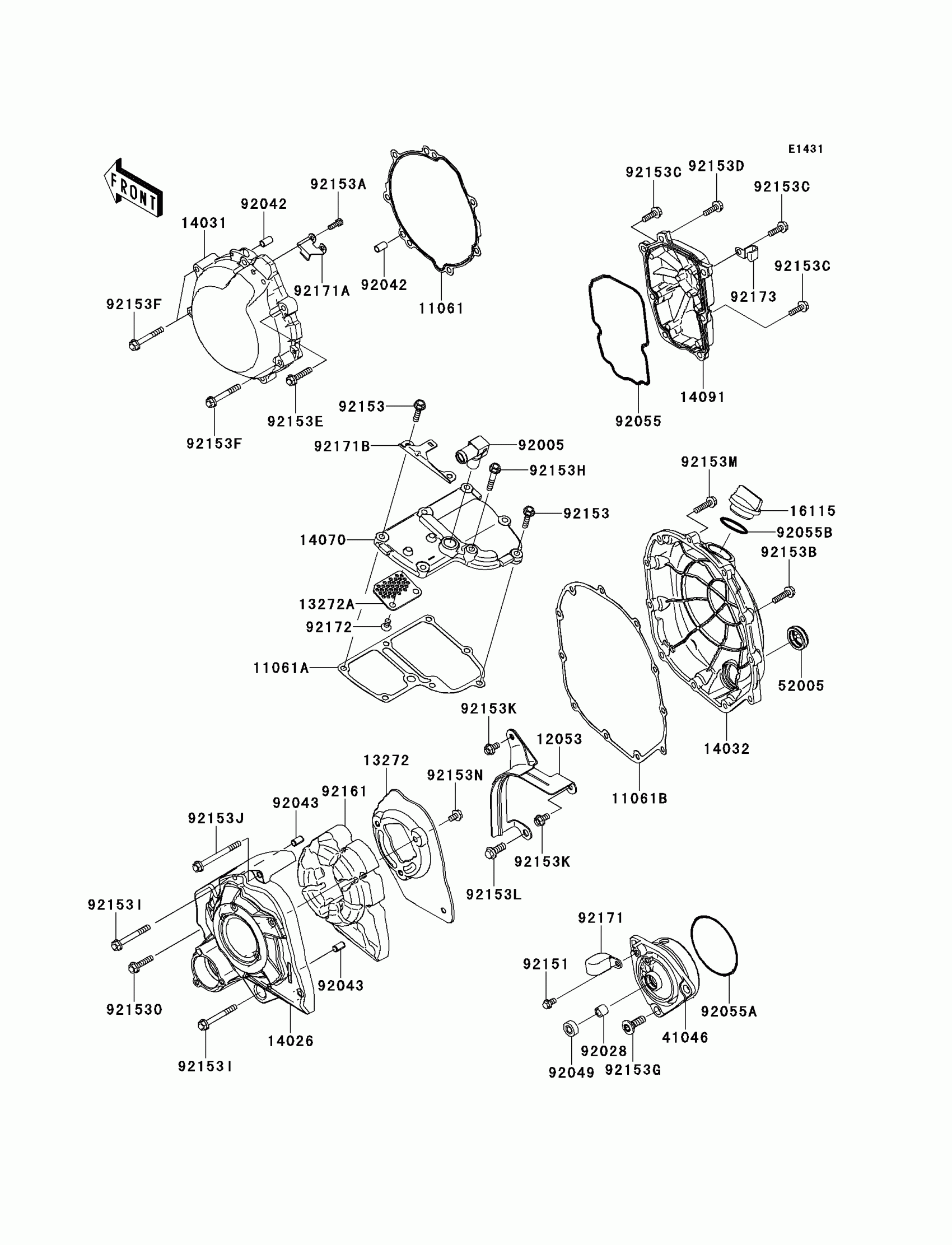

2013 Kawasaki Ninja® ZX™-14R Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,GENERATOR COVER

11061-0197

1
Out of stock

11061A

GASKET,BREATHER BODY

11061-0808

1
Out of stock

11061B

GASKET,CLUTCH COVER

11061-0810

1
Out of stock

12053

GUIDE-CHAIN

12053-0097

1
Out of stock

13272

PLATE

13272-0037

1
Out of stock

13272A

PLATE

13272-1311

1
Out of stock

14026

COVER-CHAIN

14026-0094

1
Out of stock

14031

COVER-GENERATOR

14031-0083

1
Out of stock

14032

COVER-CLUTCH

14032-0570

1
Out of stock

14070

BODY-BREATHER

14070-0061

1
Out of stock

14091

COVER,PULSER

14091-0896

1
Out of stock

16115

CAP-OIL FILLER

16115-1009

1
Out of stock

41046

HOUSING-BEARING

41046-0574

1
Out of stock

52005

GAUGE

52005-0024

1
Out of stock

92005

FITTING

92005-0044

1
Out of stock

92028

BUSHING,8X12X10

92028-1750

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92049

SEAL-OIL

92049-1566

1
Out of stock

92055

RING-O,PULSER COVER

92055-0086

1
Out of stock

92055A

RING-O,75X2.5

92055-0087

1
Out of stock

92055B

RING-O,31.5X2.6

92055-049

1
Out of stock

92151

BOLT,FLANGED,6X10

92151-1233

1
Out of stock

92153

BOLT,6X25

92153-1071

1
Out of stock

92153A

BOLT,SOCKET,5X14

92153-1286

1
Out of stock

92153B

BOLT,FLANGED,6X25

92153-1569

1
Out of stock

92153C

BOLT,FLANGED,6X20

92153-1572

1
Out of stock

92153D

BOLT,FLANGED,6X20

92153-1573

1
Out of stock

92153E

BOLT,FLANGED,6X30

92153-1574

1
Out of stock

92153F

BOLT,FLANGED,6X45

92153-1575

1
Out of stock

92153G

BOLT,SOCKET,8X25

92153-1578

1
Out of stock

92153H

BOLT,FLANGED,6X35

92153-1579

1
Out of stock

92153I

BOLT,FLANGED,6X52

92153-1581

1
Out of stock

92153J

BOLT,FLANGED,6X68

92153-1583

1
Out of stock

92153K

BOLT,FLANGED,6X12

92153-1596

1
Out of stock

92153L

BOLT,FLANGED-SMALL,8X20

92153-1682

1
Out of stock

92153M

BOLT,FLANGED,6X25

92153-1719

1
Out of stock

92153N

BOLT,FLANGED,6X10

92153-1925

1
Out of stock

92153O

BOLT,FLANGED,6X28

92153-1951

1
Out of stock

92161

DAMPER,CHAIN COVER

92161-0837

1
Out of stock

92171

CLAMP

92171-0594

1
Out of stock

92171A

CLAMP

92171-0768

1
Out of stock

92171B

CLAMP

92171-0769

1
Out of stock

92172

SCREW-CSK-CROS,6X12

92172-0747

1
Out of stock

92173

CLAMP

92173-0982

1
Out of stock
