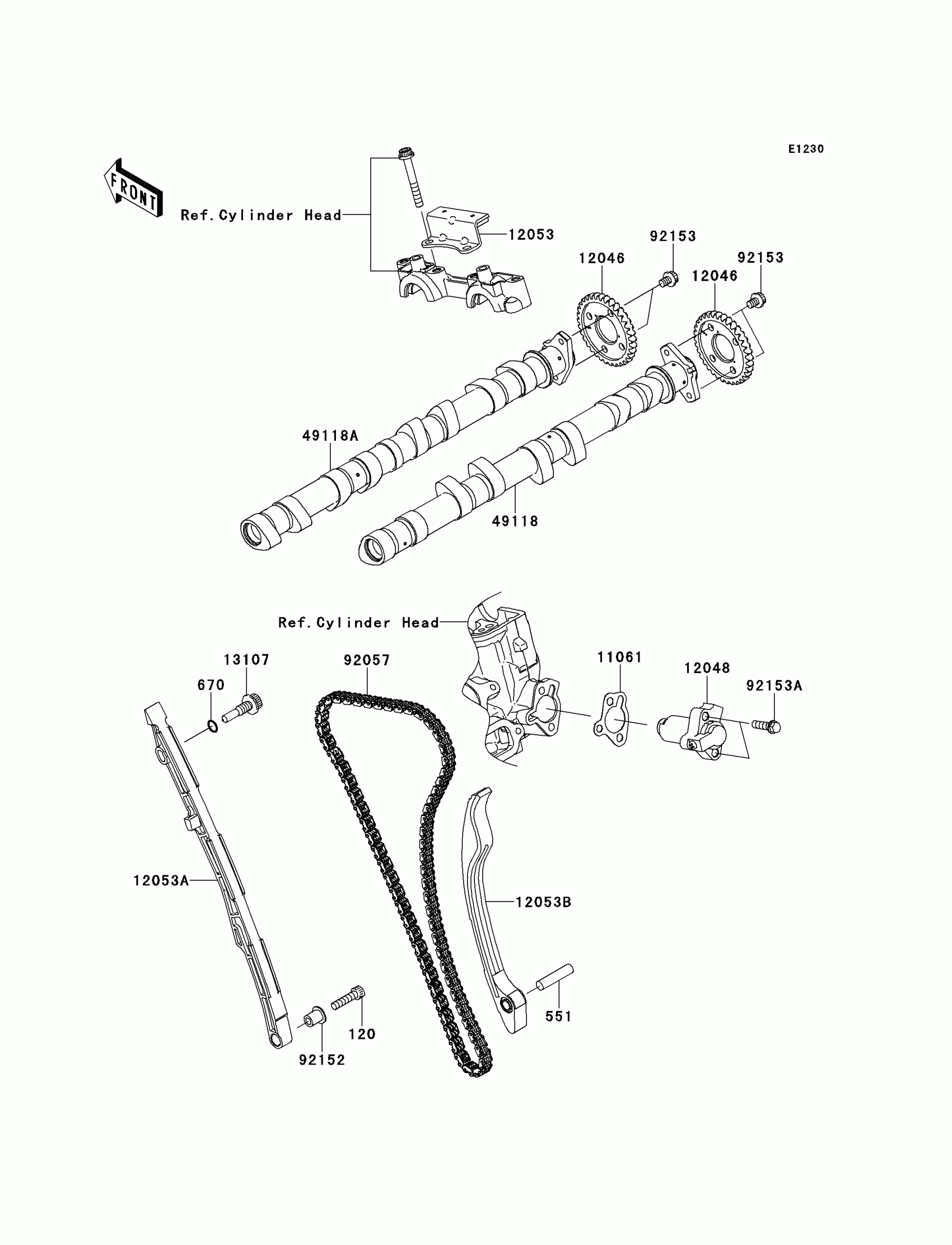

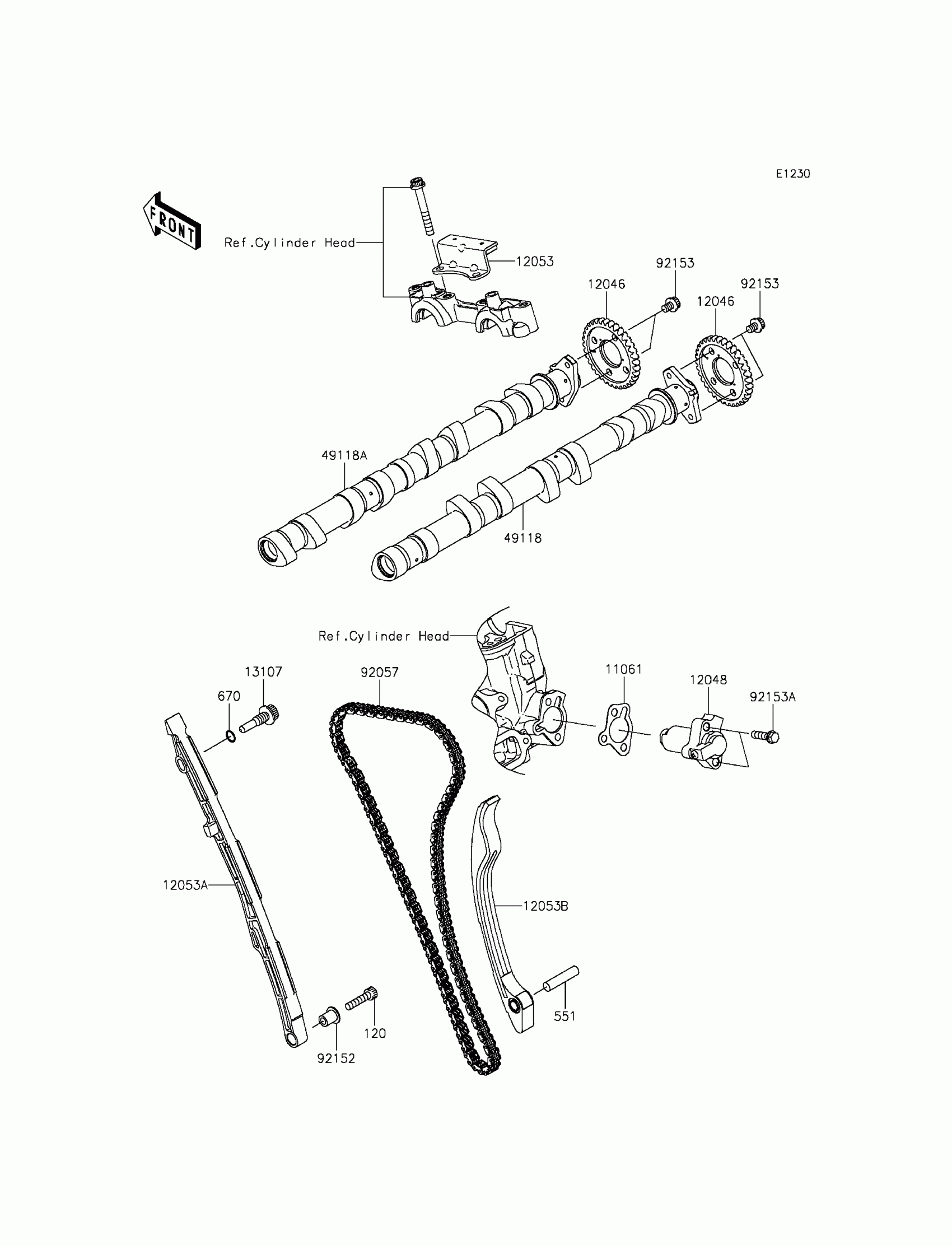

Kawasaki NINJA® ZX™-14R Camshaft(s)/Tensioner Diagram

Description

Price

120

BOLT-SOCKET,6X25

120CA0625

Unavailable

551

PIN-DOWEL

551A0835

$4.17

670

O RING,9MM

670D1509

$3.57

11061

GASKET,TENSIONER

11061-0796

$1.87

12046

SPROCKET,34T

12046-0570

$83.09

12048

TENSIONER-ASSY

12048-0083

$170.13

12053

GUIDE-CHAIN,UPP

12053-0067

$18.69

12053A

GUIDE-CHAIN,FR

12053-0182

$60.42

12053B

GUIDE-CHAIN,RR

12053-0183

$80.06

13107

SHAFT,CHAIN GUIDE

13107-0157

$8.10

49118

CAMSHAFT-COMP,INTAKE

49118-0739

$705.45

49118A

CAMSHAFT-COMP,EXHAUST

49118-0740

$705.45

92057

CHAIN,98XRH2015-132M

92057-0576

$97.13

92152

COLLAR

92152-0413

$8.46

92153

BOLT,FLANGED,6X8

92153-0455

$1.81

92153A

BOLT,FLANGED-SMALL,6X22

92153-1560

$1.81
