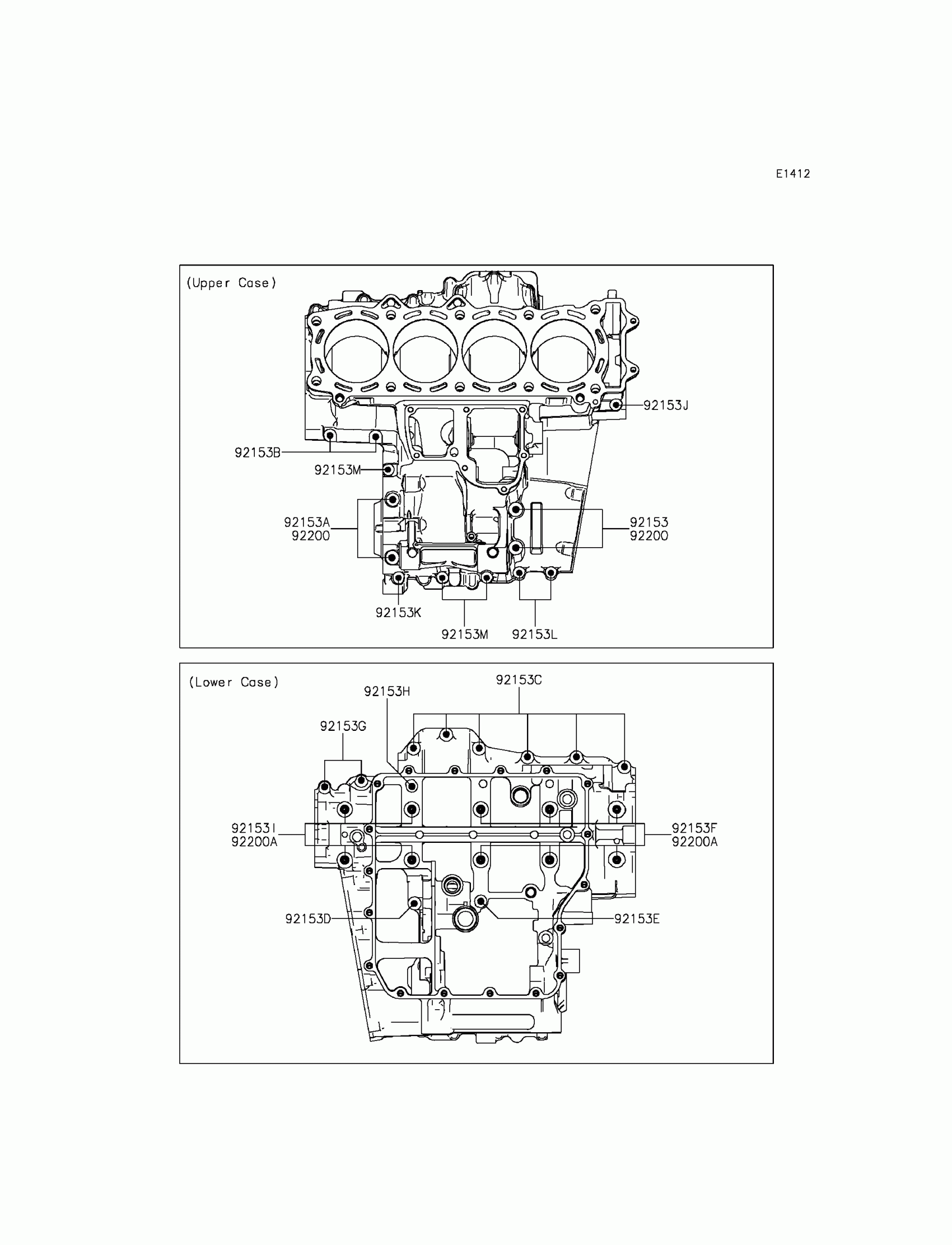

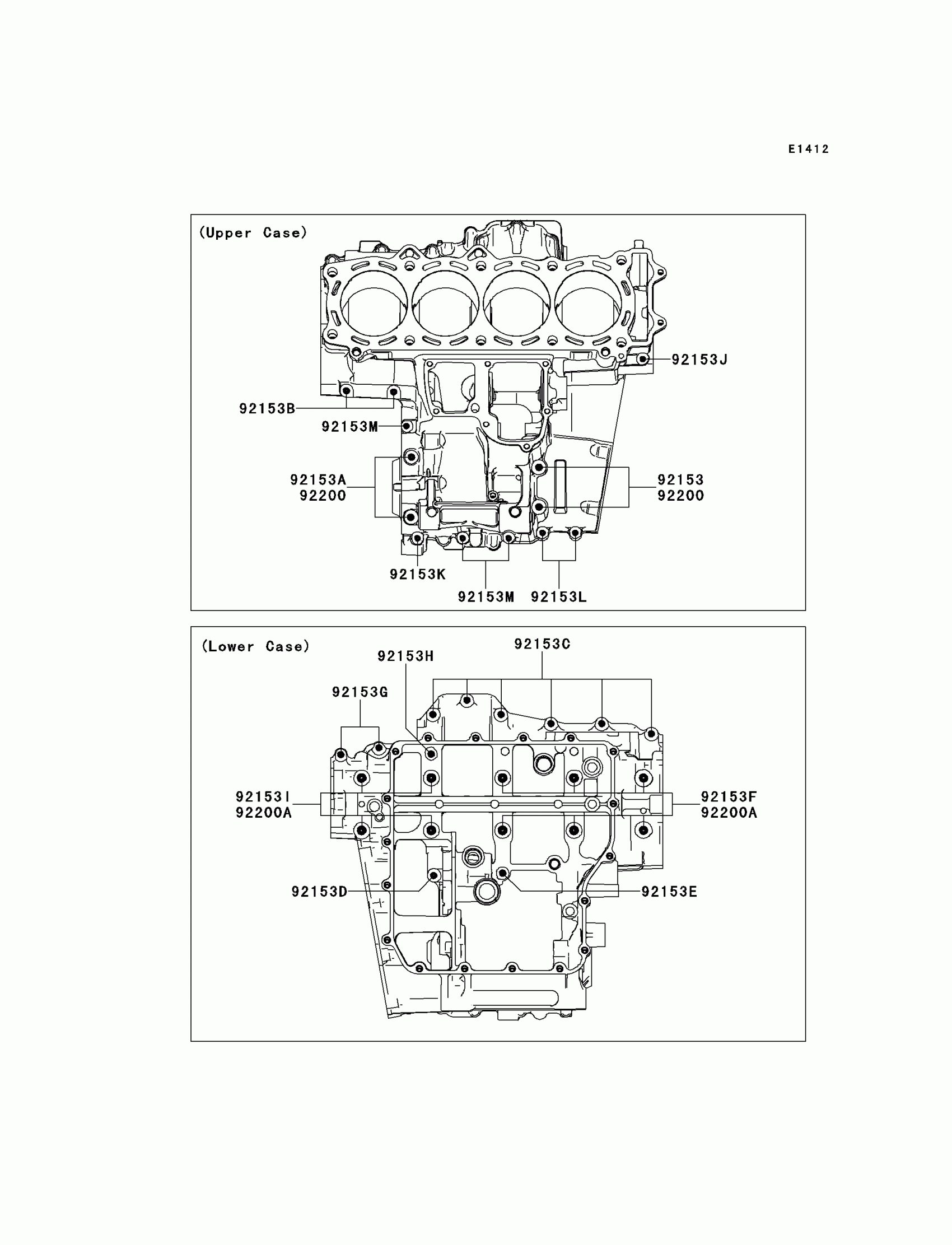

Kawasaki NINJA® ZX™-14R Crankcase Bolt Pattern Diagram

Description

Price

92153

BOLT,FLANGED,8X80

92153-1035

$4.95

92153A

BOLT,FLANGED,8X70

92153-1036

$4.95

92153B

BOLT,FLANGED,7X65

92153-1040

$4.68

92153C

BOLT,FLANGED,7X45

92153-1041

$4.34

92153D

BOLT,FLANGED,7X50

92153-1042

$4.34

92153E

BOLT,FLANGED,7X85

92153-1043

$4.95

92153F

BOLT,FLANGED,10X90

92153-1044

$8.37

92153G

BOLT,FLANGED,7X60

92153-1045

$4.68

92153H

BOLT,FLANGED,7X110

92153-1046

$5.05

92153I

BOLT,FLANGED,10X120

92153-1047

$13.42

92153J

BOLT,FLANGED,6X65

92153-1567

$2.98

92153K

BOLT,FLANGED,6X50

92153-1568

$3.51

92153L

BOLT,FLANGED,6X25

92153-1569

$1.32

92153M

BOLT,FLANGED,6X40

92153-1570

$2.71

92200

WASHER,8.2X16X1.6

92200-0047

$2.03

92200A

WASHER,10.5X19X2.3

92200-0257

$1.53
