2007 Kawasaki Ninja® ZX™-14 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2007 Kawasaki Ninja® ZX™-14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

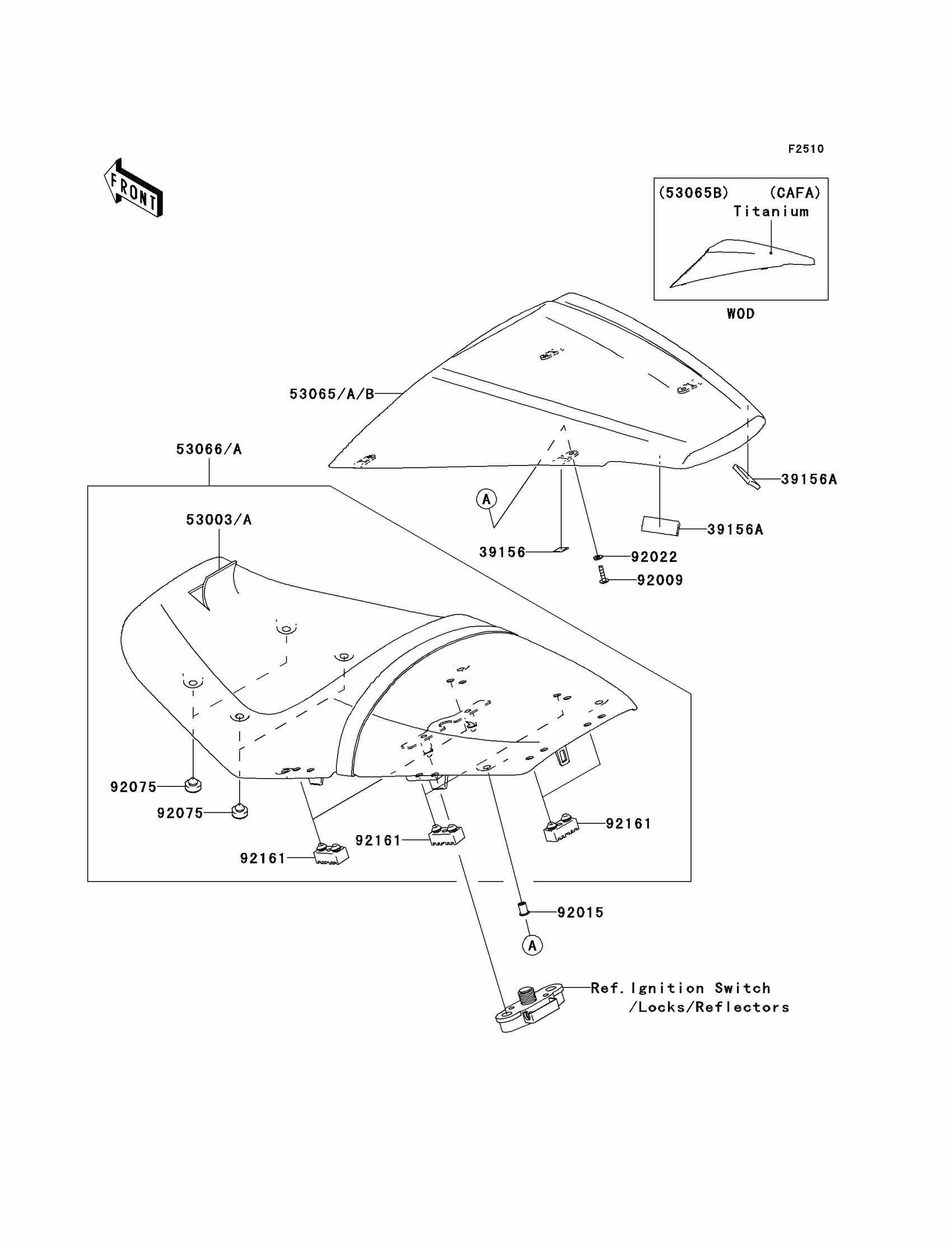

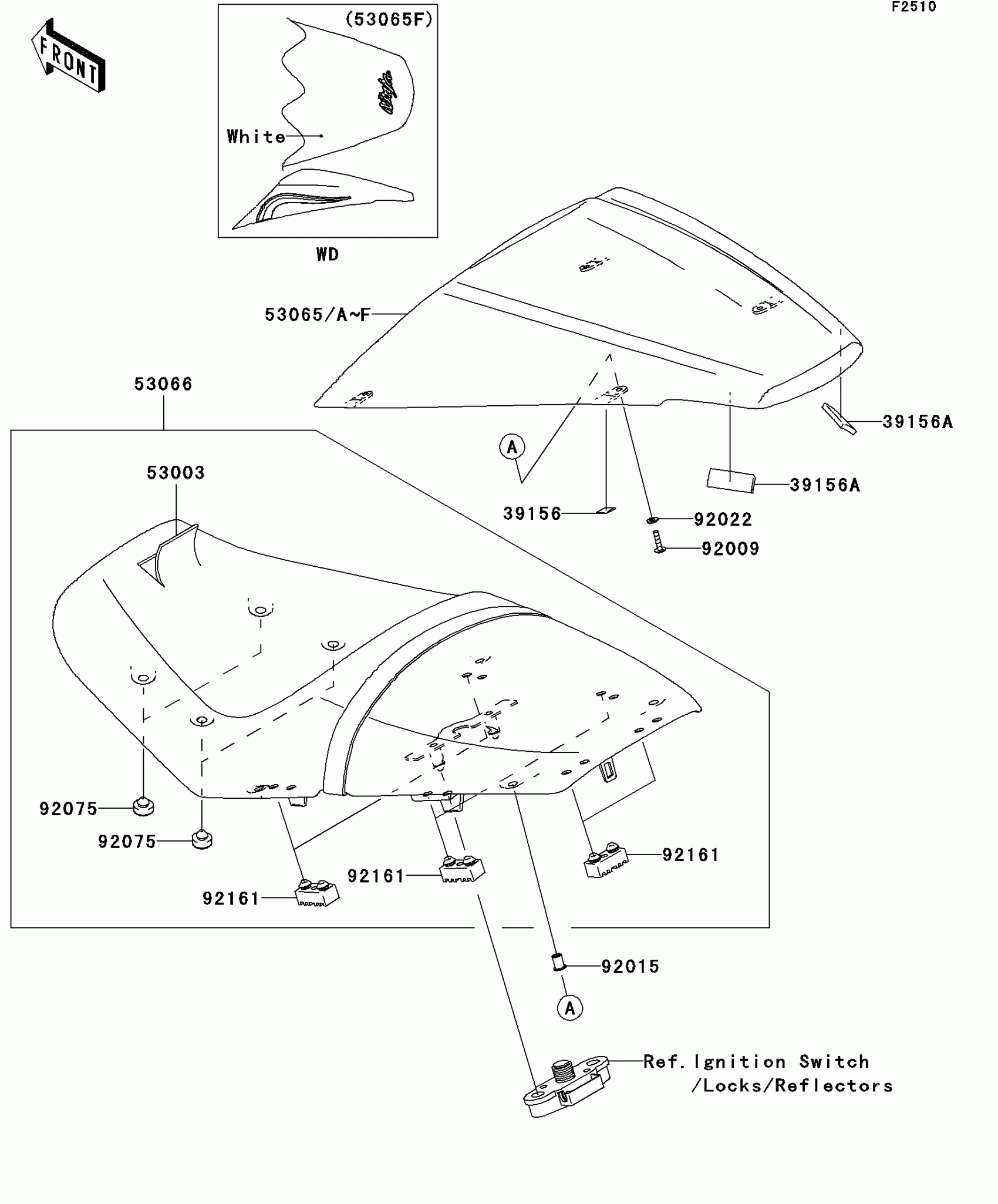

2007 Kawasaki Ninja® ZX™-14 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39156

PAD

39156-0176

1

$1.93

In stock

39156A

PAD,SEAT COVER

39156-0188

1

$2.92

In stock

53003

LEATHER,SEAT,BLACK

53003-0103-MA

1

$241.09

In stock

53065A

COVER SEAT,M.BLACK

53065-0012-17K

1

$311.54

In stock

53065B

COVER SEAT,SILVER

53065-0012-17M

1

$319.82

In stock

53065E

COVER SEAT,C.P.BLUE

53065-0012-723

1

$319.82

In stock

53066

1

$619.65

In stock

92009

SCREW,5X20,BLACK

92009-1656

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

1
Out of stock

92075

DAMPER,10X20X8

92075-1927

1
Out of stock

92161

DAMPER,SEAT

92161-0050

1
Out of stock
