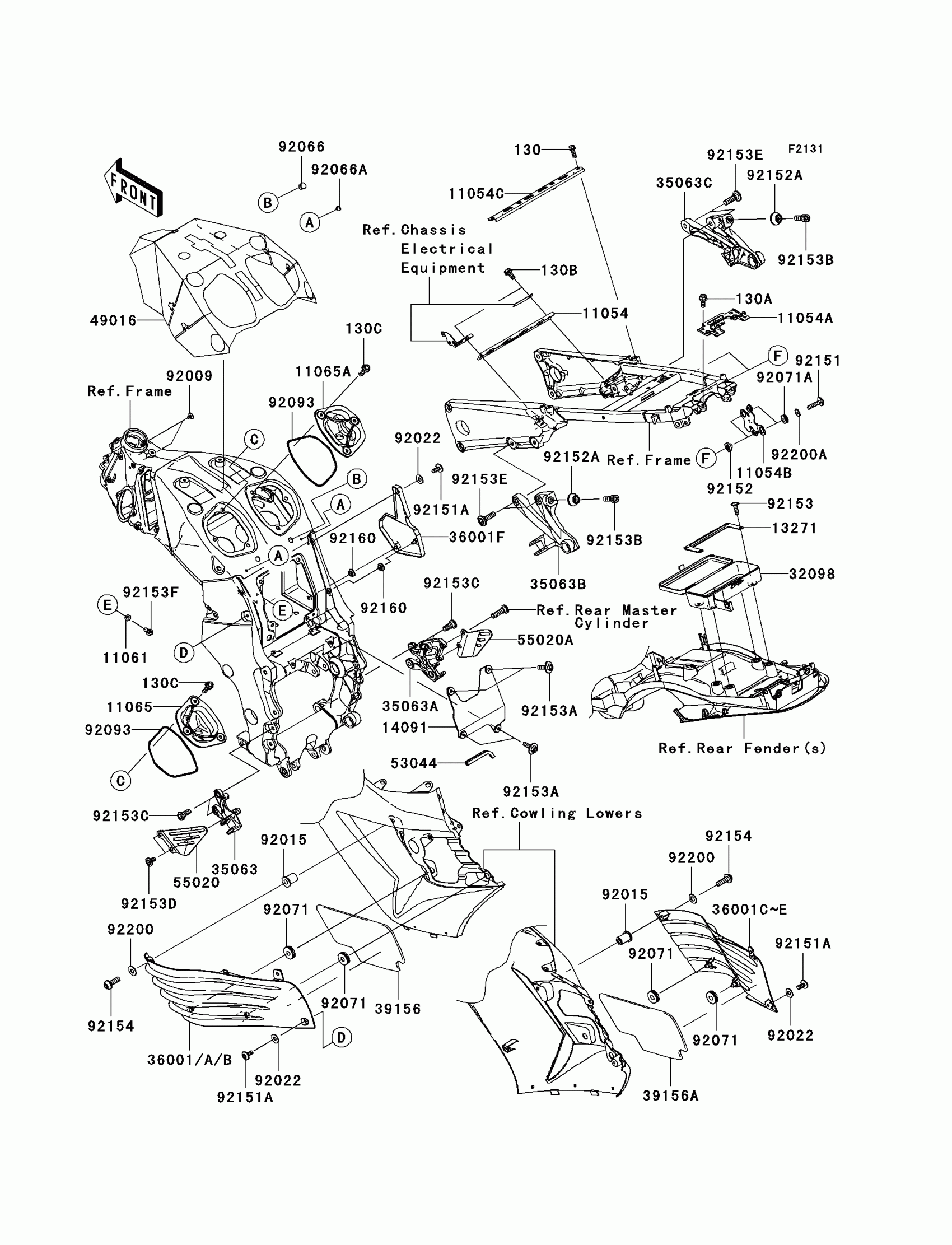

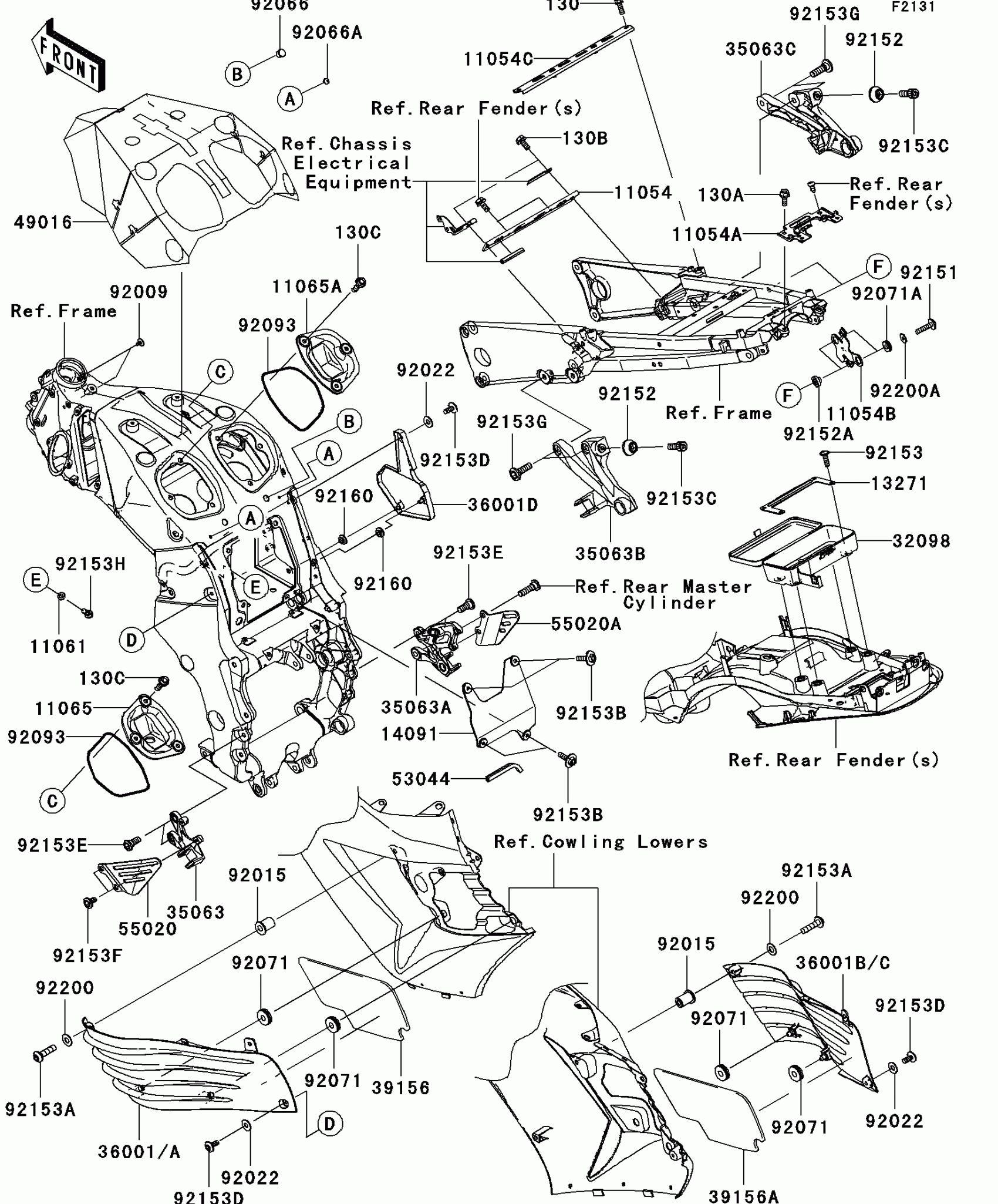

Kawasaki Ninja® ZX™-14 Frame Fittings Diagram

#

Description
Price

11054

BRACKET,RR FENDER,FR

11054-0225

$23.93

11054A

BRACKET,REAR FENDER&TAIL COVER

11054-0694

$22.46

11054B

BRACKET,REGULATOR

11054-0718

$15.93

11054C

BRACKET,FUEL TANK,RR

11054-0757

$48.14

11061

GASKET

11061-0107

$1.82

11065

CAP,AIR CLEANER,LH

11065-0132

$50.44

11065A

CAP,AIR CLEANER,RH

11065-0133

$50.44

13271

PLATE,TOOL CASE

13271-0779

$11.42

14091

COVER,BATTERY,BACK

14091-0534

$33.29

32098

CASE-TOOL

32098-0009

$34.31

35063

STAY,FR,LH,F.S.BLACK

35063-0234-11E

$86.58

35063A

STAY,FR,RH,F.S.BLACK

35063-0235-11E

$117.13

35063B

STAY,RR,LH,F.S.BLACK

35063-0353-11E

$175.51

35063C

STAY,RR,RH,F.S.BLACK

35063-0354-11E

$175.51

36001

COVER-SIDE,KNEE GRIP,LH,BLACK

36001-0069-11J

Unavailable

36001B

COVER-SIDE,KNEE GRIP,RH,BLACK

36001-0070-11J

Unavailable

36001D

COVER-SIDE,BATTERY,RH,BLACK

36001-0080-11J

$51.93

39156

PAD,KNEE GRIP COVER,LH

39156-0185

$16.81

39156A

PAD,KNEE GRIP COVER,RH

39156-0186

$16.81

49016

COVER-SEAL

49016-0034

$96.27

53044

TRIM,L=100

53044-1200

$7.36

55020

GUARD,FRONT STEP,LH

55020-0211

$75.97

55020A

GUARD,FRONT STEP,RH

55020-0212

$75.97

92009

SCREW,6X10

92009-1661

$3.29

92015

NUT,WELL,5MM

92015-1757

$5.58

92022

WASHER,6.5X16X1

92022-1143

$2.99

92066

PLUG

92066-1081

$6.56

92066A

PLUG

92066-1547

$3.19

92071

GROMMET

92071-056

$3.25

92071A

GROMMET

92071-1115

$4.14

92093

SEAL

92093-1507

$3.65

92151

BOLT,SOCKET,6X25

92151-1611

$1.68

92152

COLLAR

92152-0426

Unavailable

92152A

COLLAR

92152-0470

$4.14

92153

BOLT,6X18

92153-0478

$1.81

92153A

BOLT,SOCKET,5X16

92153-1244

$1.73

92153B

BOLT,6X16

92153-1423

$1.04

92153C

BOLT,SOCKET,10X23

92153-1522

$7.61

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,6X16

130BA0616

$0.97

130B

BOLT-FLANGED,6X18

130BA0618

$1.17

130C

BOLT-FLANGED,6X22

130BA0622

$1.00

92153D

BOLT,SOCKET,6X14

92153-1612

$1.24

92153E

BOLT,SOCKET,8X20

92153-1621

$1.57

92153F

BOLT,6MM

92153-1622

$2.34

92153G

BOLT,SOCKET,8X30

92153-1630

$1.85

92153H

BOLT,FLANGED,6X14

92153-1676

$1.57

92160

DAMPER

92160-1613

$2.84

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.36

92200A

WASHER,6.5X20X1.6

92200-0283

$1.08
