2011 Kawasaki Ninja® ZX™-14 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2011 Kawasaki Ninja® ZX™-14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

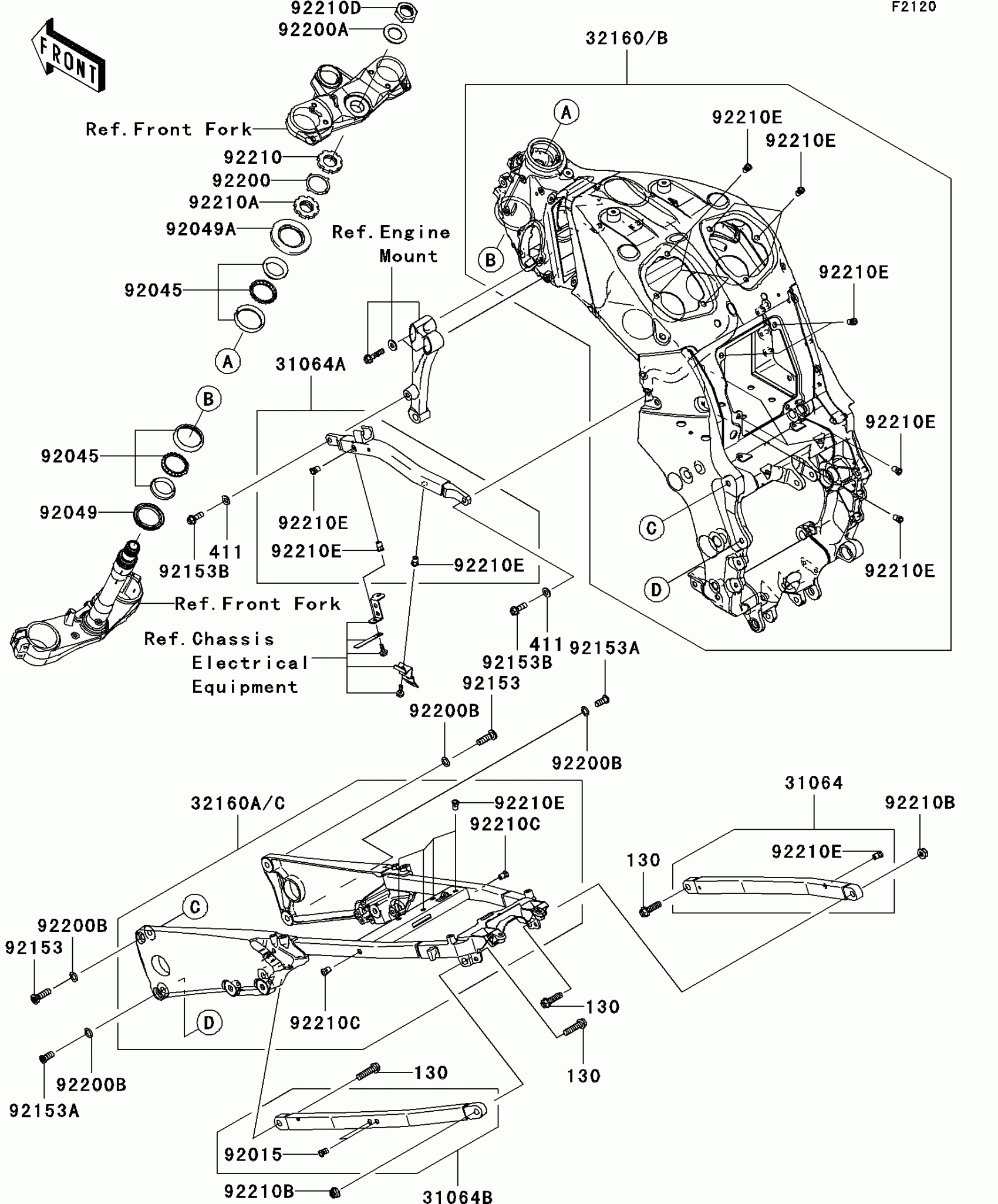

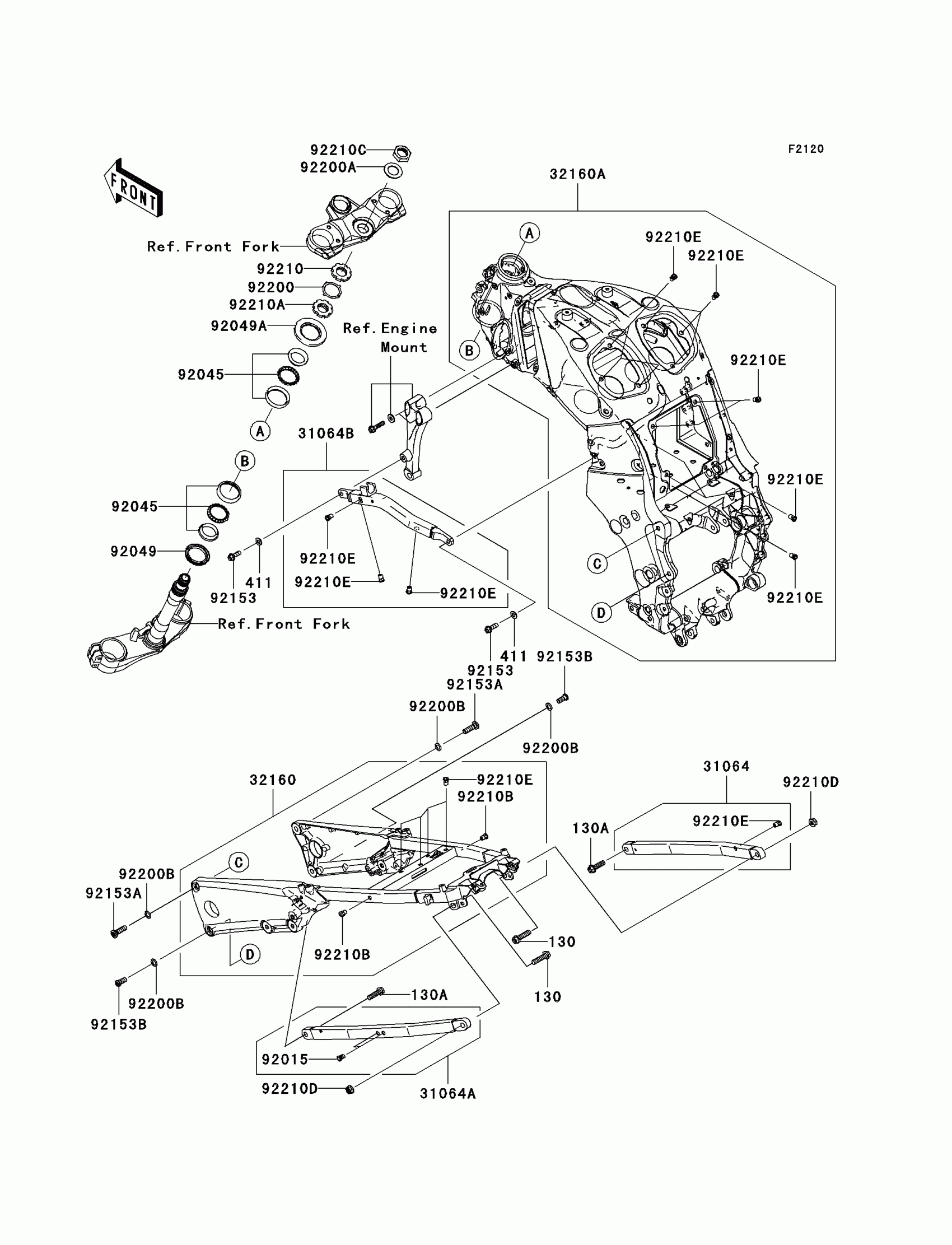

2011 Kawasaki Ninja® ZX™-14 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,10X40

130BA1040

1

$1.69

In stock

130A

BOLT-FLANGED,10X35

130BB1035

1

$5.44

In stock

411

WASHER-PLAIN,8MM

411AA0800

1
Out of stock

31064

PIPE-COMP,RR,RH,F.S.BLACK

31064-0045-18R

1
Out of stock

31064A

PIPE-COMP,RR,LH,F.S.BLACK

31064-0065-18R

1
Out of stock

31064B

PIPE-COMP,SUB FRAME,LH,BLACK

31064-0099-18R

1
Out of stock

32160

FRAME-COMP,RR,BLACK

32160-0344-18R

1
Out of stock

32160A

FRAME-COMP,FR,BLACK

32160-0469-18R

1
Out of stock

92015

NUT,POP,6MM,L=15

92015-1791

1
Out of stock

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

1
Out of stock

92049

SEAL-OIL,DS35X55X4

92049-0022

1
Out of stock

92049A

SEAL-OIL,XMH 43 75 6.4J

92049-1382

1
Out of stock

92153

BOLT,FLANGED,8X25

92153-1768

1
Out of stock

92153A

BOLT,SOCKET,10X35

92153-1904

1
Out of stock

92153B

BOLT,SOCKET,10X22

92153-1905

1
Out of stock

92200

WASHER

92200-0281

1
Out of stock

92200A

WASHER,25.5X42X2.3

92200-0282

1
Out of stock

92200B

WASHER,11X18X1

92200-0324

1
Out of stock

92210

NUT,35MM

92210-0095

1
Out of stock

92210A

NUT,35MM

92210-0096

1
Out of stock

92210B

NUT,POP,6MM,L=16.5

92210-0324

1
Out of stock

92210C

NUT,M25X1.0

92210-0584

1
Out of stock

92210D

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

92210E

NUT,POP,6MM,L=15

92210-1397

1
Out of stock
